碳酸盐岩深层走滑断裂成像技术

doi:10.7657/XJPG20210218

摘要/Abstract

摘要：

塔里木盆地顺北地区奥陶系碳酸盐岩储集层埋藏深,地震波吸收衰减严重,寒武系—奥陶系深层走滑断裂形成的绕射波场能量弱,成像难度大。针对研究区深层走滑断裂的成像需求,从深层走滑断裂低频弱振幅的地震响应特征出发,在保护低频信号下的噪声压制和低频信号增强的子波一致性处理的基础上,结合断裂控制约束速度建模与层析速度反演技术,并利用宽频逆时偏移成像技术,有效提高了塔里木盆地顺北地区沙漠地表覆盖下深层走滑断裂的成像质量,从而降低勘探风险,为圈闭落实和井位部署提供可靠资料。

关键词: 塔里木盆地, 顺北地区, 奥陶系, 碳酸盐岩, 走滑断裂, 地震响应特征, 断裂控制约束速度建模, 层析速度反演, 逆时偏移成像

Abstract:

Seismic wave reflected from the deeply buried Ordovician carbonate reservoirs in Shunbei area of Tarim basin is absorbed and attenuated seriously, and the energy of the seismic wave field diffracted from the deep strike-slip faults in the Ordovician-Cambrian formations is weak, making it difficult to get accurate seismic image. To improve the quality of seismic image, we analyzed the seismic responses characterized by low frequency and weak amplitude, then suppressed noises while protecting low-frequency signals and carried out wavelet consistency processing, and finally applied fault-controlled velocity modeling, tomographic velocity inversion and broadband inverse time migration imaging technologies to improve the seismic imaging quality of the deep strike-slip faults under the desert in the Shunbei area of Tarim basin. The result is helpful to reduce exploration risks and provides reliable data for trap implementation and well allocation.

Key words: Tarim basin, Shunbei area, Ordovician, carbonate rock, strike-slip fault, seismic response, fault-controlled velocity modeling, tomographic velocity inversion, reverse time migration imaging

中图分类号:

P631.445

杨威, 周刚, 李海英, 马学军. 碳酸盐岩深层走滑断裂成像技术[J]. 新疆石油地质, 2021, 42(2): 246-252.

YANG Wei, ZHOU Gang, LI Haiying, MA Xuejun. Seismic Imaging Technology for Deep Strike-Slip Faults in Carbonate Reservoirs[J]. Xinjiang Petroleum Geology, 2021, 42(2): 246-252.

图/表 8

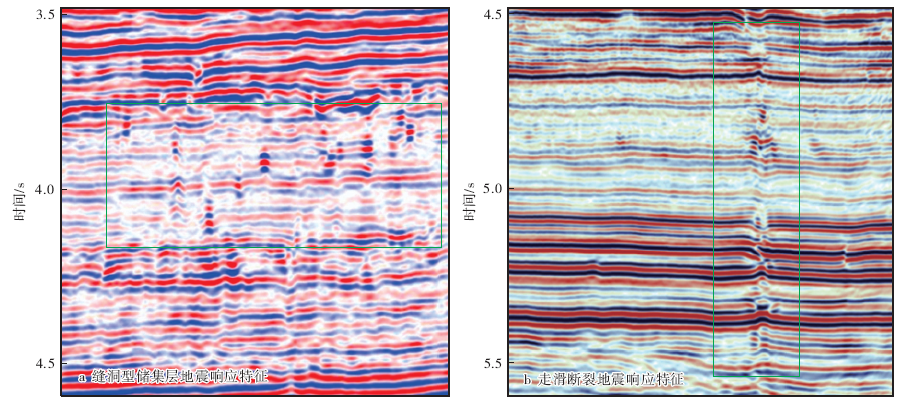

图1

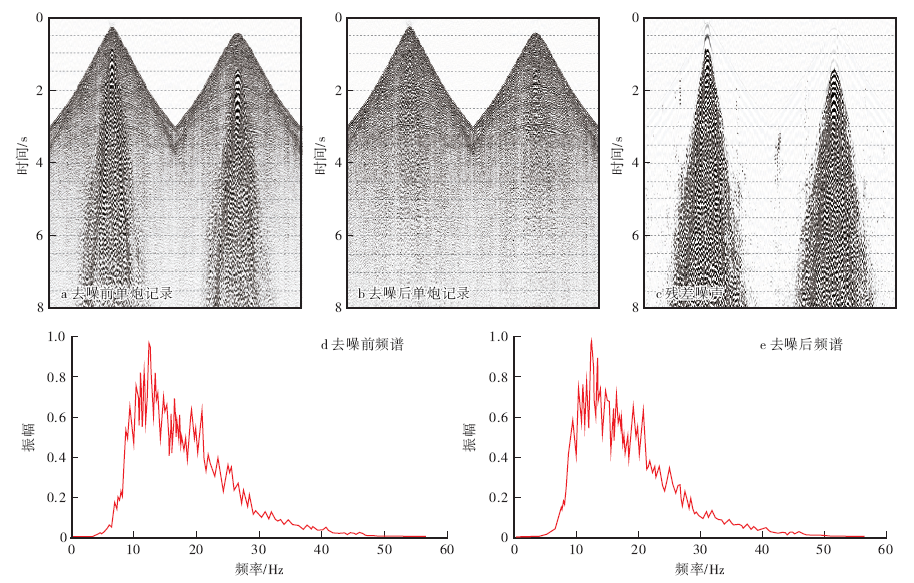

图2

图3

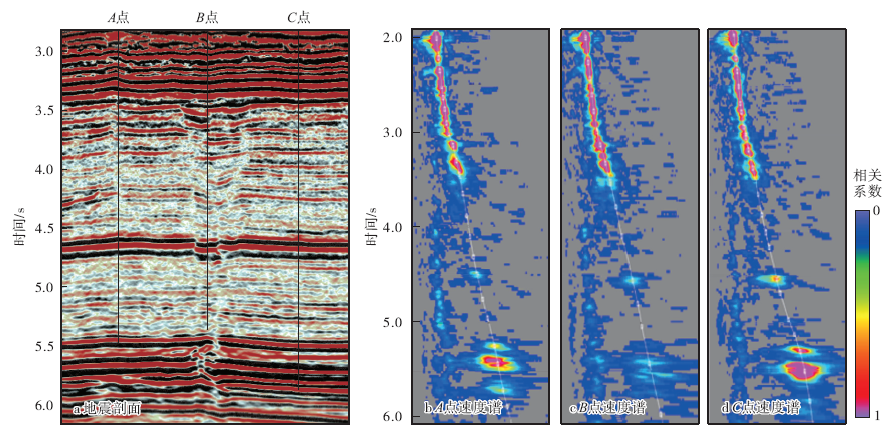

图4

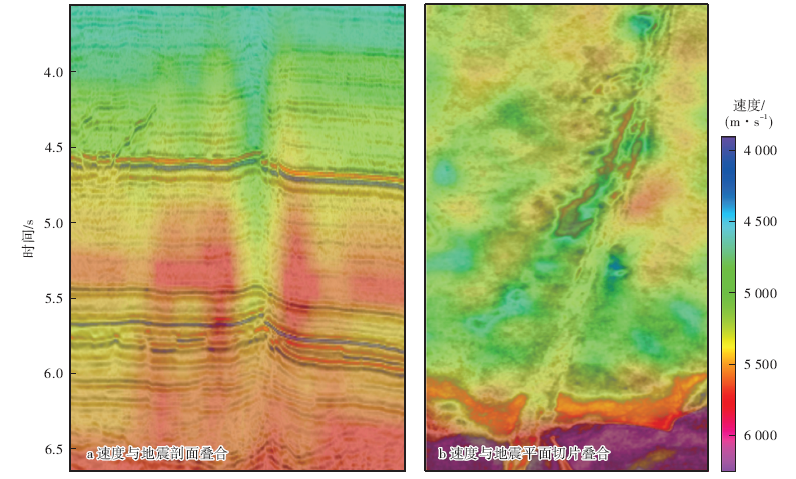

图5

图6

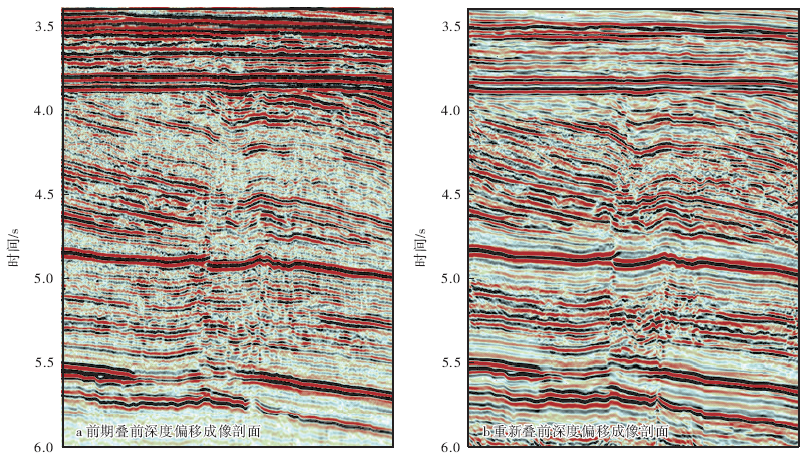

图7

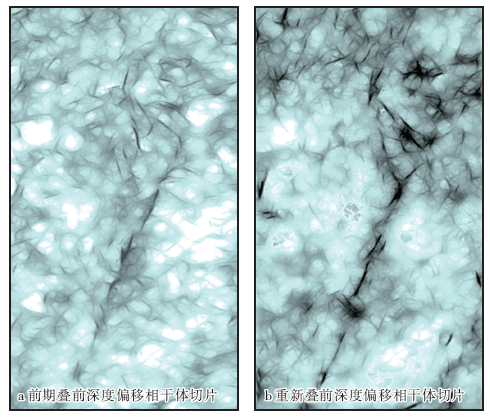

图8

参考文献 16

[1]	管振清, 郭树祥, 单联瑜. 利用低频信息改善地震成像质量[J]. 断块油气田, 2009,16(1):39-41.
	GUAN Zhenqing, GUO Shuxiang, SHAN Lianyu. Using low-frequency information to improve quality of seismic imaging[J]. Fault-Block Oil & Gas Field, 2009,16(1):39-41.
[2]	刘玉莲, 蔡希玲, 张雪利. 用低频信息改善陡界面成像的质量[R]. 北京:中国地球科学联合学术年会, 2015.
	LIU Yulian, CAI Xiling, ZHANG Xueli. Using low frequency information to improve the image quality of steep interface[R]. Beijing:Annual Meeting of Chinese Geoscience Union, 2015.
[3]	张军华, 张在金, 张彬彬, 等. 地震低频信号对关键处理环节的影响分析[J]. 石油地球物理勘探, 2016,51(1):54-62. doi: 10.13810/j.cnki.issn.1000-7210.2016.01.008
	ZHANG Junhua, ZHANG Zaijin, ZHANG Binbin, et al. Low frequency signal influences on key seismic data processing procedures[J]. Oil Geophysical Prospecting, 2016,51(1):54-62.
[4]	ZHANG Junhua, ZHANG Binbin, ZHANG Zaijin, et al. Low-frequency data analysis and expansion[J]. Applied Geophysics, 2015,12(2):212-220. doi: 10.1007/s11770-015-0484-2
[5]	WOODBURN N, HARDWICK A, TRAVIS T. Enhanced low frequency signal processing for sub-basalt imaging[J]. SEG Technical Program Expanded Abstracts, 2011,30(1):3 673-3 677.
[6]	CHEN Xuehua, HE Zhenhua, ZHU Sixin, et al. Seismic low-frequency-based calculation of reservoir fluid mobility and its applications[J]. Applied Geophysics, 2012,9(3):326-332. doi: 10.1007/s11770-012-0340-6
[7]	许艳秋, 文晓涛, 郝亚炬, 等. 低频信息对阻抗反演的影响分析[J]. 物探化探计算技术, 2015,37(1):78-82.
	XU Yanqiu, WEN Xiaotao, HAO Yaju, et al. Effect analysis of low frequency on acoustic impedance inversion[J]. Computing Techniques for Geophysical and Geochemical Exploration, 2015,37(1):78-82.
[8]	LANDA E, SHTIVELMAN V, GELCHINSKY B. A method for detection of diffracted waves on common-offset sections[J]. Geophysical Prospecting, 1987,35(4):359-373. doi: 10.1111/gpr.1987.35.issue-4
[9]	FUTTERMAN W I. Dispersive body waves[J]. Journal of Geophysical Research Atmospheres, 1962,67(13):5 279-5 291. doi: 10.1029/JZ067i013p05279
[10]	漆立新. 塔里木盆地顺北超深断溶体油藏特征与启示[J]. 中国石油勘探, 2020,25(1):102-111.
	QI Lixin. Characteristics and inspiration of ultra-deep fault-karst reservoir in the Shunbei area of the Tarim basin[J]. China Petroleum Exploration, 2020,25(1):102-111.
[11]	云露, 曹自成. 塔里木盆地顺南地区奥陶系油气富集与勘探潜力[J]. 石油与天然气地质, 2014,35(6):788-797. doi: 10.11743/ogg20140606
	YUN Lu, CAO Zicheng. Hydrocarbon enrichment pattern and exploration potential of the Ordovician in Shunnan area,Tarim basin[J]. Oil ＆ Gas Geology, 2014,35(6):788-797.
[12]	张继标, 张仲培, 汪必峰, 等. 塔里木盆地顺南地区走滑断裂派生裂缝发育规律及预测[J]. 石油与天然气地质, 2018,39(5):955-963.
	ZHANG Jibiao, ZHANG Zhongpei, WANG Bifeng, et al. Development pattern and prediction of induced fractures from strike-slip faults in Shunnan area,Tarim basin[J]. Oil ＆ Gas Geology, 2018,39(5):955-963.
[13]	张三, 金强, 赵深圳, 等. 塔河油田海西运动早期奥陶系岩溶地貌[J]. 新疆石油地质, 2020,41(5):527-534.
	ZHANG San, JIN Qiang, ZHAO Shenzhen, et al. Ordovician karst paleogeomorphology during Early Hercynian movement in Tahe oilfield[J]. Xinjiang Petroleum Geology, 2020,41(5):527-534.
[14]	朱桂良. 塔河油田断溶体油藏气驱井组注气量计算方法[J]. 新疆石油地质, 2020,41(2):248-252.
	ZHU Guiliang. A method to calculate gas injection volume in fault-karst carbonate reservoirs of Tahe oilfield[J]. Xinjiang Petroleum Geology, 2020,41(2):248-252.
[15]	刘军, 任丽丹, 李宗杰, 等. 塔里木盆地顺南地区深层碳酸盐岩断裂和裂缝地震识别与评价[J]. 石油与天然气地质, 2017,38(4):703-710.
	LIU Jun, REN Lidan, LI Zongjie, et al. Seismic identification and evaluation of deep carbonate faults and fractures in Shunnan area,Tarim basin[J]. Oil ＆ Gas Geology, 2017,38(4):703-710.
[16]	吕海涛, 韩俊, 张继标, 等. 塔里木盆地顺北地区超深碳酸盐岩断溶体发育特征与形成机制[J]. 石油实验地质, 2021,43(1):14-22.
	LÜ Haitao, HAN Jun, ZHANG Jibiao, et al. Development characteristics and formation mechanism of ultra-deep carbonate fault-dissolution body in Shunbei area,Tarim basin[J]. Petroleum Geology ＆ Experiment, 2021,43(1):14-22.
