基于竞争吸附的页岩气藏提高采收率机理

doi:10.7657/XJPG20210215

摘要/Abstract

摘要：

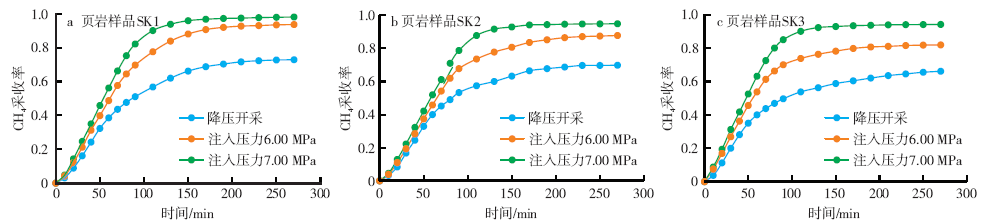

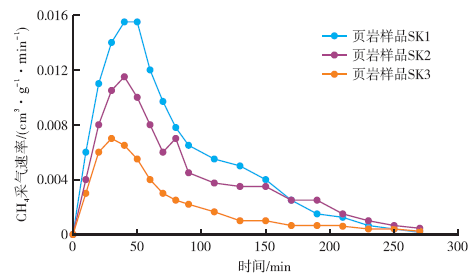

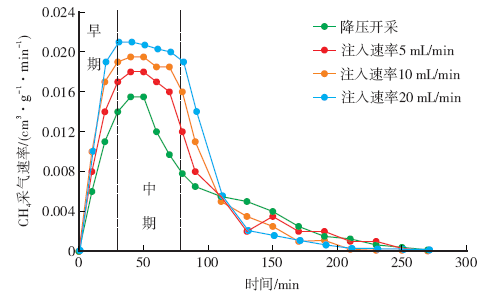

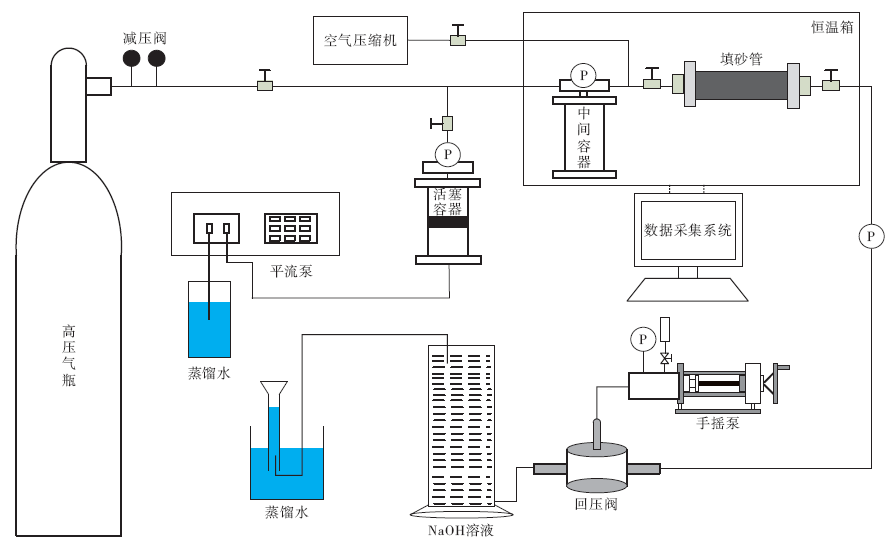

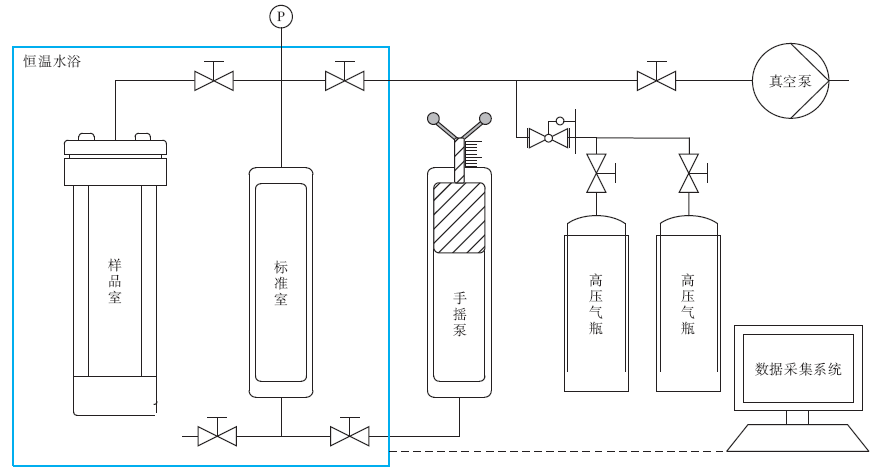

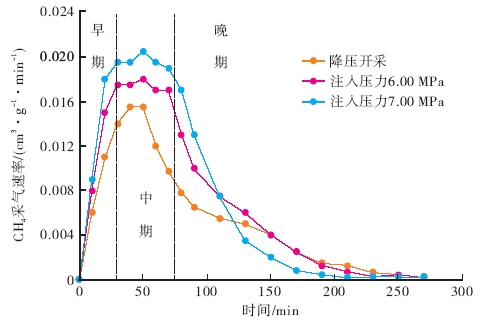

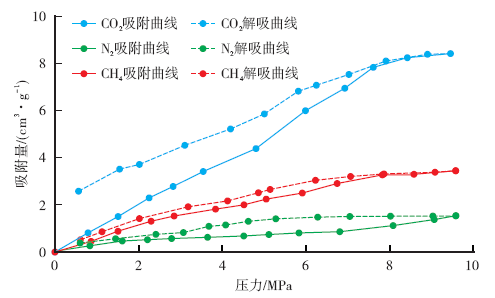

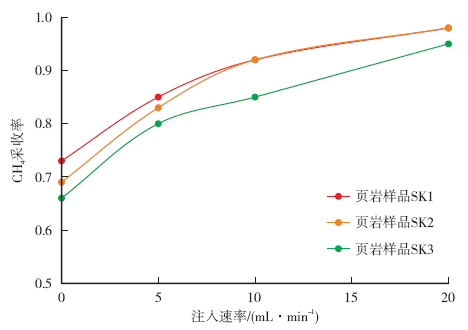

为研究注CO₂提高页岩气藏采收率的机理以及确定合理的注入参数,以页岩吸附解吸实验为基础,对比了页岩自然降压开采和在不同注入压力、注入速率下注CO₂开采页岩气藏的实验结果,研究了降压开采和注CO₂开采2种方式下CH₄的采气速率和采收率的变化。结果表明,在相同实验条件下,CO₂吸附能力最强,CH₄次之,N₂最弱,N₂解吸能力最强,CH₄次之,CO₂最弱;3种气体的等温解吸曲线相对于等温吸附曲线均存在一定的滞后,CO₂的滞后现象最为明显;降压开采的采收率较低,注CO₂可以有效提高CH₄的采气速率,延长稳产时间,使累计产气量快速增长;在一定注入压力和注入速率范围内,CH₄采收率随着CO₂注入压力和注入速率的增加而增加,但其增加幅度因岩心孔隙度和渗透率的不同而有所不同。

关键词: 页岩气藏, 竞争吸附, CO₂驱, 吸附能力, 解吸能力, 参数优化, 提高采收率

Abstract:

In order to study the mechanism of injecting CO₂ to increase the recovery of shale gas reservoirs and determine reasonable injection parameters, the experimental results of the production of shale gas reservoir developed by natural pressure drop and by injecting CO₂ at different pressure and rates were compared based on shale adsorption and desorption experiments, and the changes in CH₄ production rate and recovery factor under the two methods were studied. The results show that under the same experimental conditions, as to adsorption capacity, CO₂ is the strongest, followed by CH₄, and then N₂, while as to desorption capacity, N₂ is the strongest, followed by CH₄, and then CO₂. Compared with the isothermal adsorption curves, the isothermal desorption curves of the three kinds of gas are hysteretic to a certain extent, and the hysteresis of CO₂ is the most obvious. The recovery factor of shale reservoirs developed by natural pressure drop is low, while CO₂ injection can effectively increase the production rate of CH₄, greatly prolong stable production and increase cumulative gas production. Within certain ranges of injection pressure and injection rate, the CH₄ recovery increases with the increase of CO₂ injection pressure and injection rate, but the increment varies with core porosity and permeability.

Key words: shale gas reservoir, competitive adsorption, CO₂ flooding, adsorption capacity, desorption capacity, parameter optimization, enhanced gas recovery

中图分类号:

TE311

孙莹, 孙仁远, 刘晓强, 李淑霞. 基于竞争吸附的页岩气藏提高采收率机理[J]. 新疆石油地质, 2021, 42(2): 224-231.

SUN Ying, SUN Renyuan, LIU Xiaoqiang, LI Shuxia. Mechanism of Enhanced Gas Recovery in Shale Gas Reservoirs Based on Competitive Adsorption[J]. Xinjiang Petroleum Geology, 2021, 42(2): 224-231.

图/表 9

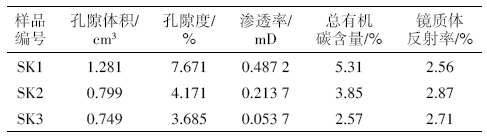

表1

图1

图2

图3

图4

图5

图6

图7

图8

参考文献 26

[1]	郭春礼, 杨爽, 王安东, 等. 修武盆地下寒武统荷塘组海相页岩孔隙特征[J]. 新疆石油地质, 2020,41(5):550-556.
	GUO Chunli, YANG Shuang, WANG Andong, et al. Pore characteristics of marine shale in Lower Cambrian Hetang formation in Xiuwu basin[J]. Xinjiang Petroleum Geology, 2020,41(5):550-556.
[2]	邹才能, 董大忠, 王玉满, 等. 中国页岩气特征、挑战及前景(一)[J]. 石油勘探与开发, 2015,42(6):689-701.
	ZOU Caineng, DONG Dazhong, WANG Yuman, et al. Shale gas in China:characteristics,challenges and prospects(Ⅰ)[J]. Petroleum Exploration and Development, 2015,42(6):689-701.
[3]	王红岩, 周尚文, 刘德勋, 等. 页岩气地质评价关键实验技术的进展与展望[J]. 天然气工业, 2020,40(6):1-17.
	WANG Hongyan, ZHOU Shangwen, LIU Dexun, et al. Progress and prospect of key experimental technologies for shale gas geological evaluation[J]. Natural Gas Industry, 2020,40(6):1-17.
[4]	JAFFE A M. Shale gas will rock the world[J]. Wall Street Journal, 2016,2(4):687-691.
[5]	SUN Renyuan, YAO Wei, LIN Li, et al. Experimental simulations on coalbed methane production by CO₂ injection[R]. Yichang,Hubei,China:2011 International Conference on Electrical and Control Engineering, 2011.
[6]	YU Wei, AL-SHALABI E W, SEPEHRNOORI K. A sensitivity study of potential CO₂ injection for enhanced gas recovery in Barnett shale reservoirs[R]. SPE 169012, 2014.
[7]	YANG Nannan, LIU Shuyan, YANG Xiaoning. Molecular simulation of preferential adsorption of CO₂ over CH₄ in Na-montmorillonite clay material[J]. Applied Surface Science, 2015,356:1 262-1 271. doi: 10.1016/j.apsusc.2015.08.101
[8]	SUN Haoyang, SUN Wenchao, ZHAO Hui, et al. Adsorption properties of CH₄ and CO₂ in quartz nanopores studied by molecular simulation[J]. RSC Advances, 2016,6(39):32 770-32 778. doi: 10.1039/C6RA05083B
[9]	SUN Haoyang, ZHAO Hui, QI Na, et al. Molecular insight into the micro-behaviors of CH₄ and CO₂ in montmorillonite slit-nanopores[J]. Molecular Simulation, 2017,43(13/16):1-8. doi: 10.1080/08927022.2016.1221071
[10]	SUN Haoyang, ZHAO Hui, QI Na, et al. Mechanistic insight into the displacement of CH₄ by CO₂ in calcite slit nanopores:the effect of competitive adsorption[J]. RSC Advances, 2016,6(106):104 456-104 462. doi: 10.1039/C6RA23456A
[11]	ALJAMAAN H, HOLMES R, VISHAL V, et al. CO₂ storage and flow capacity measurements on idealized shales from dynamic breakthrough experiments[J]. Energy & Fuels, 2017,31(2):1 193-1 207.
[12]	KHAN C, AMIN R, MADDEN G. Economic modelling of CO₂ injection for enhanced gas recovery and storage:a reservoir simulation study of operational parameters[J]. Energy and Environment Research, 2012,2(2):65-82.
[13]	MOINFAR A, SEPEHRNOORI K, JOHNS R, et al. Coupled geo-mechanics and flow simulation for an embedded discrete fracture model[J]. SPE Reservoir Simulation Symposium, 2013,2:1 238-1 250.
[14]	陈敏, 张雷, 张砚. 注CO₂提高页岩气采收率技术可行性分析[J]. 化学工程与装备, 2017,46(4):118-119.
	CHEN Min, ZHANG Lei, ZHANG Yan. Technical feasibility analysis of CO₂ injection to increase shale gas recovery[J]. Chemical Engineering & Equipment, 2017,46(4):118-119.
[15]	李毅, 张可霓, 王笑雨. 页岩气开发中吸附-解吸过程的影响及CO₂驱替页岩气的模拟研究[J]. 北京师范大学学报(自然科学版), 2015,51(4):399-403.
	LI Yi, ZHANG Keni, WANG Xiaoyu. Modeling the impact of adsorption-desorption process in shale gas development and CO₂ enhanced gas recovery[J]. Journal of Beijing Normal University(Natural Science), 2015,51(4):399-403.
[16]	KIM T H, CHO J, LEE K S. Evaluation of CO₂ injection in shale gas reservoirs with multi-component transport and geomechanical effects[J]. Applied Energy, 2017,190:1 195-1 206. doi: 10.1016/j.apenergy.2017.01.047
[17]	孙仁远, 张云飞, 范坤坤, 等. 页岩中黏土矿物吸附特性分子模拟[J]. 化工学报, 2015,66(6):2 118-2 122.
	SUN Renyuan, ZHANG Yunfei, FAN Kunkun, et al. Molecular simulations of adsorption characteristics of clay minerals in shale[J]. CIESC Journal, 2015,66(6):2 118-2 122.
[18]	孙宝江, 张彦龙, 杜庆杰, 等. CO₂在页岩中的吸附解吸性能评价[J]. 中国石油大学学报(自然科学版), 2013,37(5):95-99.
	SUN Baojiang, ZHANG Yanlong, DU Qingjie, et al. Property evaluation of CO₂ adsorption and desorption on shale[J]. Journal of China University of Petroleum(Edition of Natural Science), 2013,37(5):95-99.
[19]	JARVIE D M, HILL R J, RUBLE T E, et al. Unconventional shale-gas systems:the Mississippian Barnett shale of north-central Texas as one model for thermogenic shale-gas assessment[J]. AAPG Bulletin, 2007,91(4):475-499. doi: 10.1306/12190606068
[20]	ROSS D J K, BUSTIN R M. Shale gas potential of the Lower Jurassic Gordondale member,northeastern British Columbia,Canada[J]. Bulletin of Canadian Petroleum Geology, 2007,55(1):51-75. doi: 10.2113/gscpgbull.55.1.51
[21]	邓长生, 张毅, 谢小飞, 等. 延长石油探区延长组页岩总含气量综合预测模型[J]. 新疆石油地质, 2020,41(3):269-277.
	DENG Changsheng, ZHANG Yi, XIE Xiaofei, et al. Comprehensive prediction model of total gas content in the shale of Yanchang formation in Yanchang petroleum exploration area[J]. Xinjiang Petroleum Geology, 2020,41(3):269-277.
[22]	田华, 张水昌, 柳少波, 等. 压汞法和气体吸附法研究富有机质页岩孔隙特征[J]. 石油学报, 2012,33(3):419-427.
	TIAN Hua, ZHANG Shuichang, LIU Shaobo, et al. Determination of organic-rich shale pore features by mercury injection and gas adsorption methods[J]. Acta Petrolei Sinica, 2012,33(3):419-427.
[23]	刘刚, 赵谦平, 高潮, 等. 提高页岩含气量测试中损失气量计算精度的解吸临界时间点法[J]. 天然气工业, 2019,39(2):71-75.
	LIU Gang, ZHAO Qianping, GAO Chao, et al. A critical desorption time method to improve the calculation accuracy of gas loss in shale gas content testing[J]. Natural Gas Industry, 2019,39(2):71-75.
[24]	薛培, 张丽霞, 梁全胜, 等. 陆相页岩吸附CH₄的热力学特征:以鄂尔多斯盆地延长气田上三叠统延长组页岩为例[J]. 天然气工业, 2019,39(11):64-73.
	XUE Pei, ZHANG Lixia, LIANG Quansheng, et al. Thermodynamic characteristics of CH₄ adsorption by continental shale:a case study of the Upper Triassic Yanchang shale in the Yanchang gasfield,Ordos basin[J]. Natural Gas Industry, 2019,39(11):64-73.
[25]	王瑞, 张宁生, 刘晓娟, 等. 页岩气吸附与解吸附机理研究进展[J]. 科学技术与工程, 2013,13(19):5 561-5 567.
	WANG Rui, ZHANG Ningsheng, LIU Xiaojuan, et al. Research progress of mechanism of adsorption and desorption of gas in shale[J]. Science Technology and Engineering, 2013,13(19):5 561-5 567.
[26]	LI Xiang, ELSWORTH D. Geomechanics of CO₂ enhanced shale gas recovery[J]. Journal of Natural Gas Science and Engineering, 2014,26:1 607-1 619. doi: 10.1016/j.jngse.2014.08.010
