低孔低渗稠油油藏注水增能效果影响因素

doi:10.7657/XJPG20230312

摘要/Abstract

摘要：

吐哈盆地鲁克沁油田二叠系发育低孔低渗砂砾岩稠油油藏，由于储集层物性差，非均质性强，自然产能低，压裂投产后，注水开发效果较差。为了解决平面矛盾突出、见效率低、欠注区域不见效的开发矛盾，实施注水增能提高单井产量，但单井增产效果差异较大。为此，通过室内物理模拟实验，对储集层润湿性和注水增能过程进行了研究。结果表明，吐哈盆地鲁克沁油田二叠系储集层具亲水性，压裂有利于裂缝与储集层基质发生渗吸作用，可有效补充地层能量，从而提高单井产量；注入速度越快，地层能量恢复越快；焖井压力越高，增油量越高。通过数值模拟，并结合现场情况，优化注入参数，注水增能效果较好，措施有效率达88%。

关键词: 吐哈盆地, 鲁克沁油田, 二叠系, 低孔低渗, 砂砾岩, 稠油油藏, 注水增能, 影响因素

Abstract:

Low porosity and low permeability sandy conglomerate heavy oil reservoirs in the Permian series of the Lukeqin oilfield in Turpan-Hami basin are usually fractured for recovery due to their poor physical properties, strong heterogeneity and low natural productivity. The induced fractures and reservoir heterogeneity lead to poor water injection effect. In order to solve the problems encountered in the development such as prominent areal contradiction, low efficiency, and ineffective areas, water injection is used to replenish the formation energy for increasing single-well production, but the effect in single wells is quite different. The reservoir wettability and water injection process for energy replenishment were studied through physical simulation experiments. The results show that the Permian reservoirs in the Lukeqin oilfield are water-wetting. Fracturing is conducive to the imbibition between fractures and reservoir matrix, which can effectively replenish the formation energy to improve single-well production. The faster the water is injected, the faster the formation energy can be recovered; the higher the well soaking pressure, the higher the oil increment. Combining numerical simulation and in-situ conditions, the injection parameters were optimized. As a result, the effect of water injection was good, with the effective rate reaching 88%.

Key words: Turpan-Hami basin, Lukeqin oilfield, Permian, low porosity and low permeability, sandy conglomerate, heavy oil reservoir, water injection for energy replenishment, influencing factor

中图分类号:

TE341

万海乔, 王盛, 刘学良. 低孔低渗稠油油藏注水增能效果影响因素[J]. 新疆石油地质, 2023, 44(3): 347-351.

WAN Haiqiao, WANG Sheng, LIU Xueliang. Factors Influencing Water Injection Effect in Low Porosity and Low Permeability Heavy Oil Reservoirs[J]. Xinjiang Petroleum Geology, 2023, 44(3): 347-351.

图/表 6

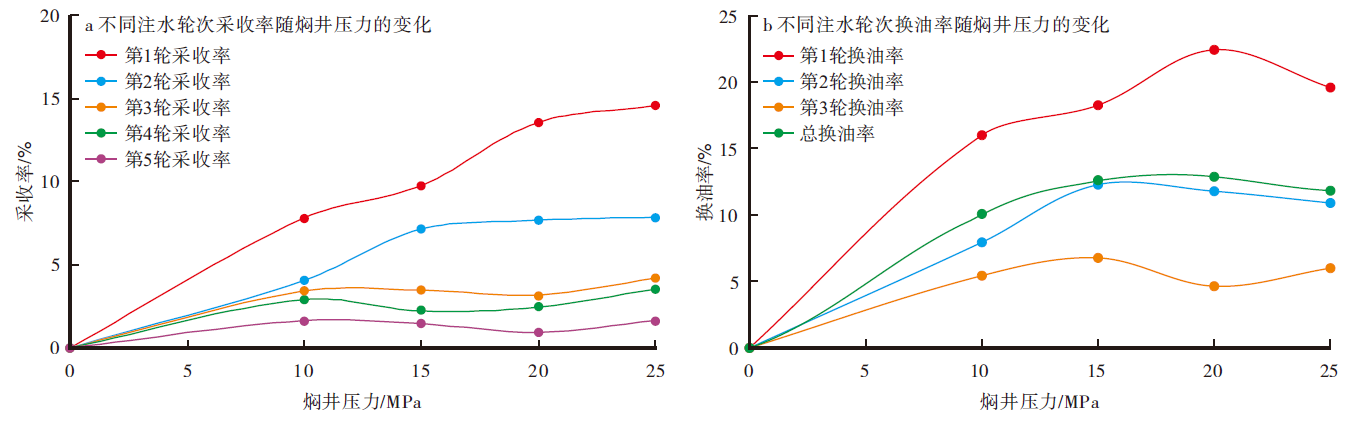

图1

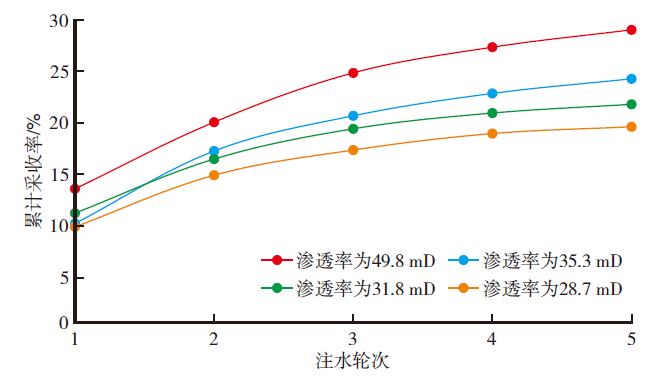

图2

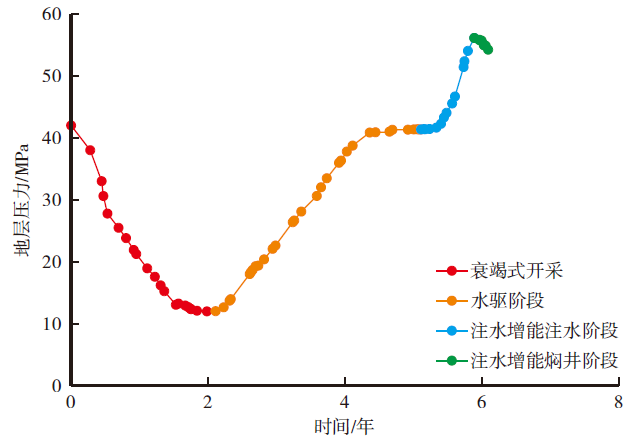

图3

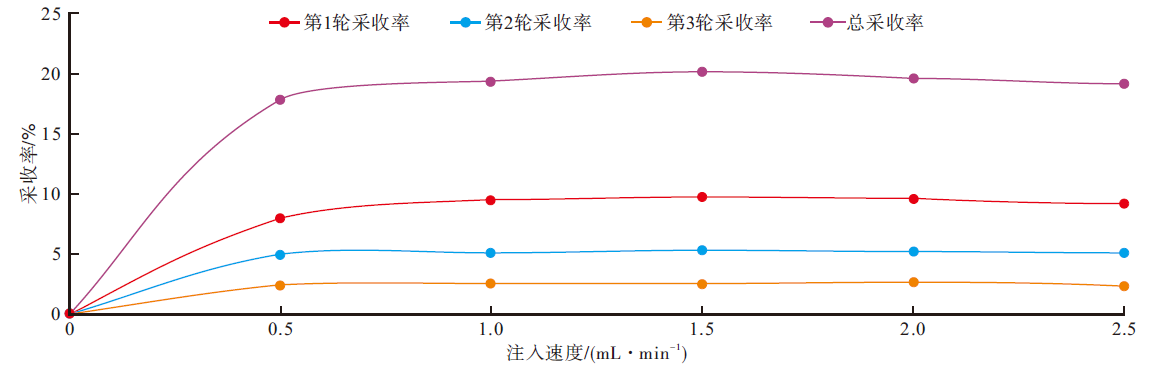

图4

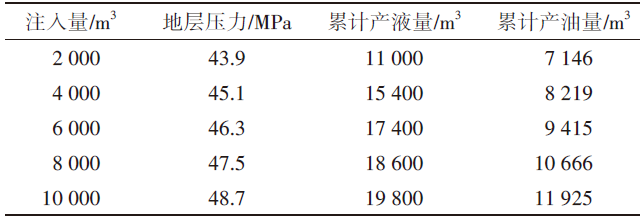

表1

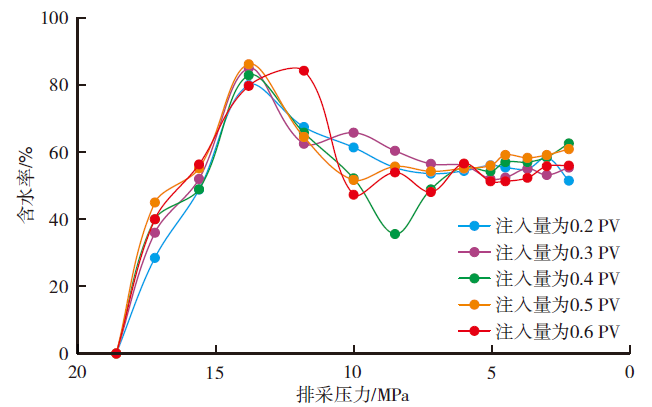

图5

参考文献 16

[1]	马明伟, 祝健, 李嘉成, 等. 吉木萨尔凹陷芦草沟组页岩油储集层渗吸规律[J]. 新疆石油地质, 2021, 42(6):702-708.
	MA Mingwei, ZHU Jian, LI Jiacheng, et al. Imbibition law of shale oil reservoirs in the Lucaogou formation in Jimsar sag[J]. Xinjiang Petroleum Geology, 2021, 42(6):702-708.
[2]	魏兵, 张翔, 刘江, 等. 致密油藏提高采收率现场试验进展和启示[J]. 新疆石油地质, 2021, 42(4):495-505.
	WEI Bing, ZHANG Xiang, LIU Jiang, et al. Progress and enlightenment of EOR field tests in tight oil reservoirs[J]. Xinjiang Petroleum Geology, 2021, 42(4):495-505.
[3]	于家义, 李道阳, 何伯斌, 等. 三塘湖盆地条湖组沉凝灰岩致密油有效开发技术[J]. 新疆石油地质, 2020, 41(6):714-720.
	YU Jiayi, LI Daoyang, HE Bobin, et al. Effective development technologies for tight oil in Tiaohu formation of Santanghu basin[J]. Xinjiang Petroleum Geology, 2020, 41(6):714-720.
[4]	王云龙, 胡淳竣, 刘淑霞, 等. 低渗透油藏动态渗吸机理实验研究及数字岩心模拟[J]. 科学技术与工程, 2021, 21(5):1789-1 794.
	WANG Yunlong, HU Chunjun, LIU Shuxia, et al. Experimental study and digital core simulation on dynamic imbibition mechanism of low permeability reservoir[J]. Science Technology and Engineering, 2021, 21(5):1789-1 794.
[5]	李蒙蒙, 李琪, 林加恩, 等. 裂缝性油藏注水井动态渗吸数学模型及其特征分析[J]. 西安石油大学学报(自然科学版), 2019, 34(1):69-75.
	LI Mengmeng, LI Qi, LIN Jiaen, et al. Dynamic imbibition mathematical model of water injection wells in fractured reservoirs and analysis of its characteristics[J]. Journal of Xi’an Shiyou University(Natural Science Edition), 2019, 34(1):69-75.
[6]	黎明, 廖晶, 王肃, 等. 鄂尔多斯盆地超低渗透油藏渗吸特征及其影响因素:以渭北油田三叠系延长组三段储层为例[J]. 石油实验地质, 2022, 44(6):971-980.
	LI Ming, LIAO Jing, WANG Su, et al. Imbibition characteristics and influencing factors of reservoirs with ultra-low permeability of Ordos basin:A case study of third member of Triassic Yanchang formation in Weibei oil field[J]. Petroleum Geology & Experiment, 2022, 44(6):971-980.
[7]	程晓倩, 刘华勋, 熊伟, 等. 新疆低渗透砂砾岩油藏自发渗吸实验研究[J]. 科学技术与工程, 2013, 13(26):7793-7 797.
	CHENG Xiaoqian, LIU Huaxun, XIONG Wei, et al. Experimental research of spontaneous imbibition in low-permeability glutenite reservoir[J]. Science Technology and Engineering, 2013, 13(26):7793-7 797.
[8]	曹旭升, 韩昀, 张继卓, 等. 渗吸效应对裂缝性低渗砾岩油藏开发的影响:以玛湖乌尔禾组储层为例[J]. 岩性油气藏, 2020, 32(4):155-162.
	CAO Xusheng, HAN Yun, ZHANG Jizhuo, et al. Influence of imbibition on the development of fractured low permeability conglomerate reservoir:A case study from Urho formation in Mahu oilfield[J]. Lithologic Reservoirs, 2020, 32(4):155-162.
[9]	李传亮, 毛万义, 吴庭新, 等. 渗吸驱油的机理研究[J]. 新疆石油地质, 2019, 40(6):687-694.
	LI Chuanliang, MAO Wanyi, WU Tingxin, et al. A study on mechanism of oil displacement by imbibition[J]. Xinjiang Petroleum Geology, 2019, 40(6):687-694.
[10]	徐中一, 方思冬. 边界层对致密油藏逆向渗吸的数值模拟[J]. 石油与天然气地质, 2020, 41(3):638-646.
	XU Zhongyi, FANG Sidong. Numerical simulation on tight oil reservoir reverse imbibition with boundary layers[J]. Oil & Gas Geology, 2020, 41(3):638-646.
[11]	李传亮. 地下岩石的润湿性分析:与李正科先生商榷[I]. 新疆石油地质, 2013, 34(2):243-245.
	LI Chuanliang. Wettability of underground rocks:Reply to Mr.LI Zhengke[J]. Xinjiang Petroleum Geology, 2013, 34(2):243-245.
[12]	邸士莹, 程时清, 代力, 等. 致密油藏水平井注水吞吐效果评价方法[J]. 特种油气藏, 2022, 29(2):91-97. doi: 10.3969/j.issn.1006-6535.2022.02.013
	DI Shiying, CHENG Shiqing, DAI Li, et al. Evaluation method of water-flood stimulation effect of horizontal wells in tight oil reservoirs[J]. Special Oil & Gas Reservoirs, 2022, 29(2):91-97.
[13]	胡亚斐, 李军诗, 胡水清, 等. 动态渗吸对超低渗透油藏开发的影响及应用[J]. 特种油气藏, 2021, 28(4):123-128. doi: 10.3969/j.issn.1006-6535.2021.04.017
	HU Yafei, LI Junshi, HU Shuiqing, et al. Influence and application of dynamic imbibition on the development of ultra-low permeability reservoirs[J]. Special Oil & Gas Reservoirs, 2021, 28(4):123-128.
[14]	刘继梓, 巩联浩, 卜广平, 等. 致密砂岩油藏高温高压动态渗吸特征及影响因素[J]. 特种油气藏, 2021, 28(4):142-149. doi: 10.3969/j.issn.1006-6535.2021.04.020
	LIU Jizi, GONG Lianhao, BU Guangping, et al. Characteristics and influencing factors of dynamic imbibition at high temperature and high pressure in tight sandstone reservoir[J]. Special Oil & Gas Reservoirs, 2021, 28(4):142-149.
[15]	董大鹏, 李斌会, 苑盛旺, 等. 基于核磁共振测试的低渗亲水岩心静态渗吸特征[J]. 大庆石油地质与开发, 2021, 40(2):60-65.
	DONG Dapeng, LI Binhui, YUAN Shengwang, et al. Spontaneous imbibition characteristics of the low-permeability water-wet core based on the NMR test[J]. Petroleum Geology & Oilfield Development in Daqing, 2021, 40(2):60-65.
[16]	王子强, 李春涛, 张代燕, 等. 吉木萨尔凹陷页岩油储集层渗流机理[I]. 新疆石油地质, 2019, 40(6):695-700.
	WANG Ziqiang, LI Chuntao, ZHANG Daiyan, et al. Flow mechanism of shale oil reservoir in Jimsar sag[J]. Xinjiang Petroleum Geology, 2019, 40(6):695-700.
