水驱曲线标定技术可采储量的极限含水率

doi:10.7657/XJPG20240607

摘要/Abstract

摘要：

在动态法标定可采储量中，水驱曲线法是一种重要的方法。该方法是注水油藏不采取重大调整措施、不改变开发方式、水驱状况基本保持稳定时的向前预测，其将极限含水率标准定为0.98，缺乏科学依据。不同油藏的水驱规律存在很大差异，应在4种水驱特征曲线中选择最接近油藏实际的水驱规律，而不是以技术可采储量最低去选择，造成标定的技术可采储量可靠性不强。为此，将4种水驱特征曲线和产量递减法进行反演优选和联合消元，形成新的水（液）油比与递减产量关系式，不仅可以确定极限含水率，也实现了动态法标定技术可采储量结果的唯一性。

关键词: 水驱特征曲线, 可采储量标定, 极限含水率, 产量递减方程, 水油比

Abstract:

Water drive curve method is one of the important methods in dynamically calibrating recoverable reserves. This is a forward estimation method for water flooding reservoir without major adjustment measures and changing development modes, and with basically steady water flooding status. Setting the limit water cut at 0.98 lacks a solid scientific basis. Since the water drive characteristics vary significantly among different reservoirs, it is essential to select a water drive curve that best aligns with the reservoir’s actual behavior from the four water drive characteristic curves, rather than choosing the one with the lowest technically recoverable reserves, which will lead to weak reliability of calibration. Therefore, the four water drive characteristic curves and the production decline method were inverted and optimized for joint elimination, and a new relationship between water/liquid-oil ratio and production decline was established. This can determine the limit water cut and also ensure the uniqueness of the recoverable reserves calibrated by dynamic methods.

Key words: water drive characteristic curve, recoverable reserves calibration, limit water cut, production decline equation, water-oil ratio

中图分类号:

TE341

连建文, 汪耀宗, 杨继光. 水驱曲线标定技术可采储量的极限含水率[J]. 新疆石油地质, 2024, 45(6): 687-695.

LIAN Jianwen, WANG Yaozong, YANG Jiguang. Determination of Limit Water Cut of Technically Recoverable Reserves Calibrated by Water Drive Curve[J]. Xinjiang Petroleum Geology, 2024, 45(6): 687-695.

图/表 12

表1

图1

表2

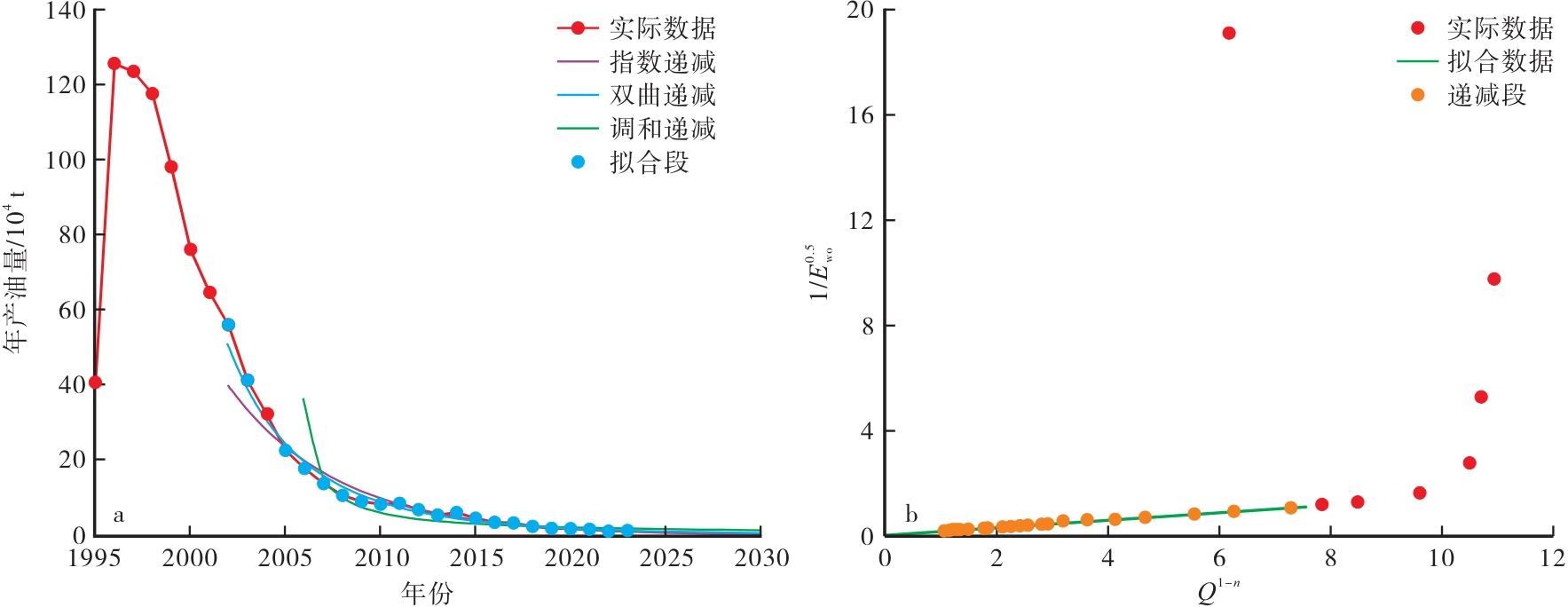

图2

表3

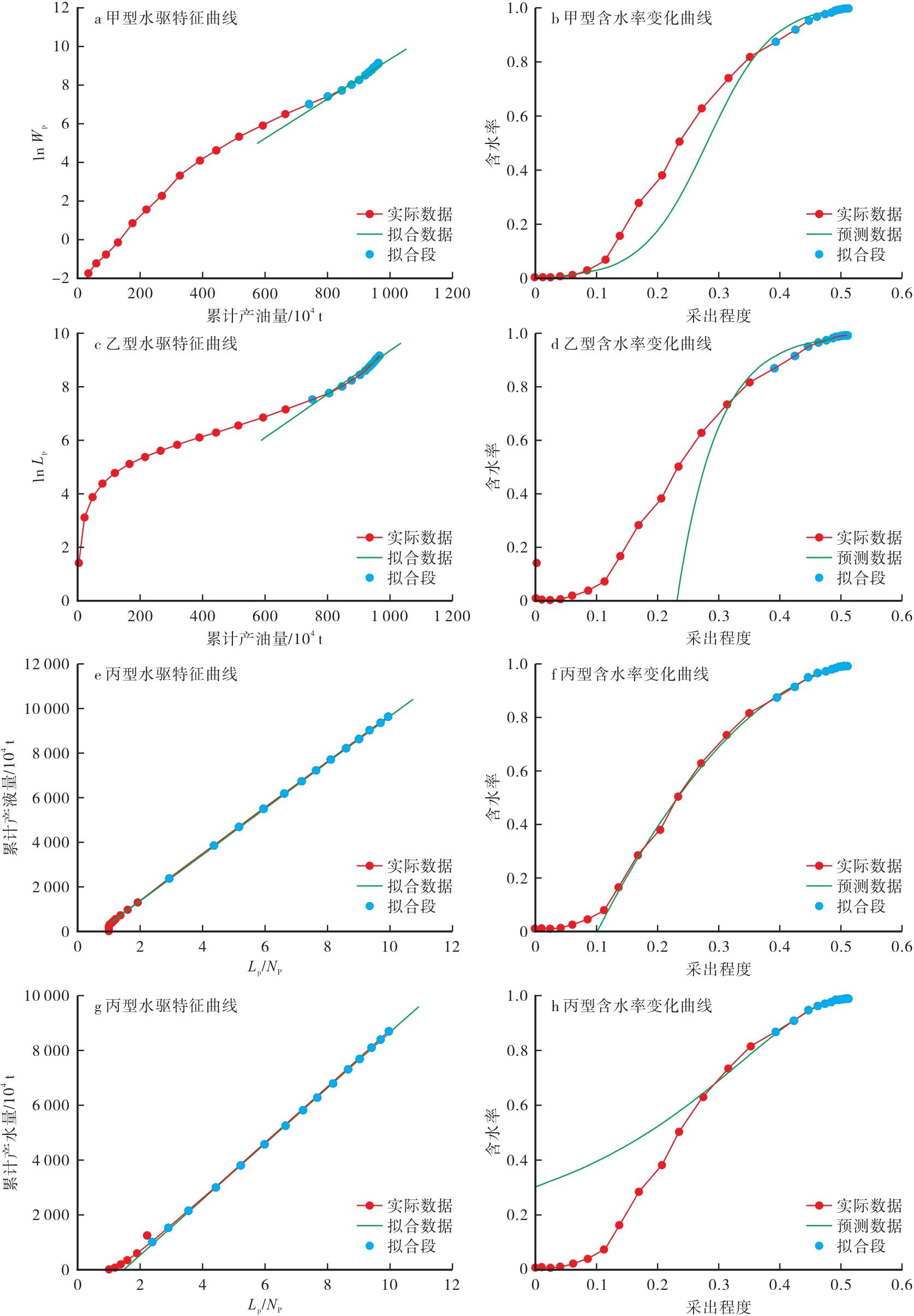

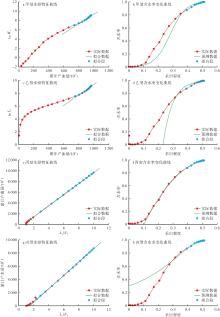

图3

表4

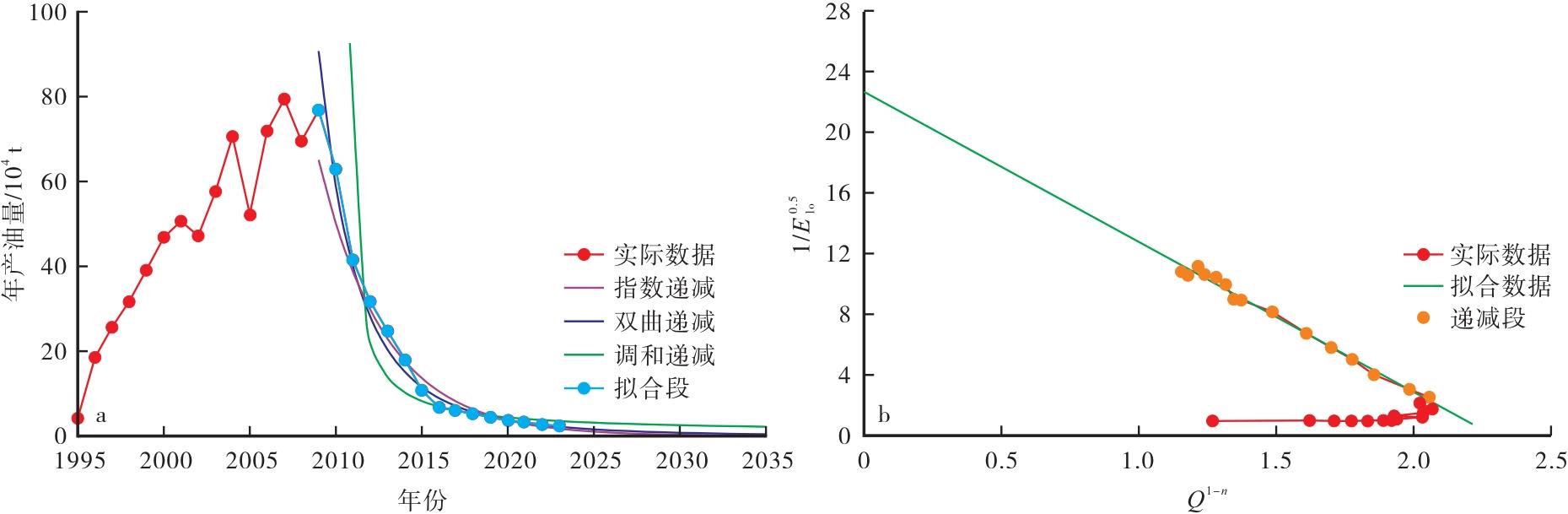

图4

表5

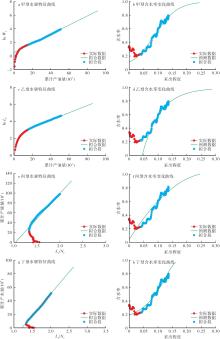

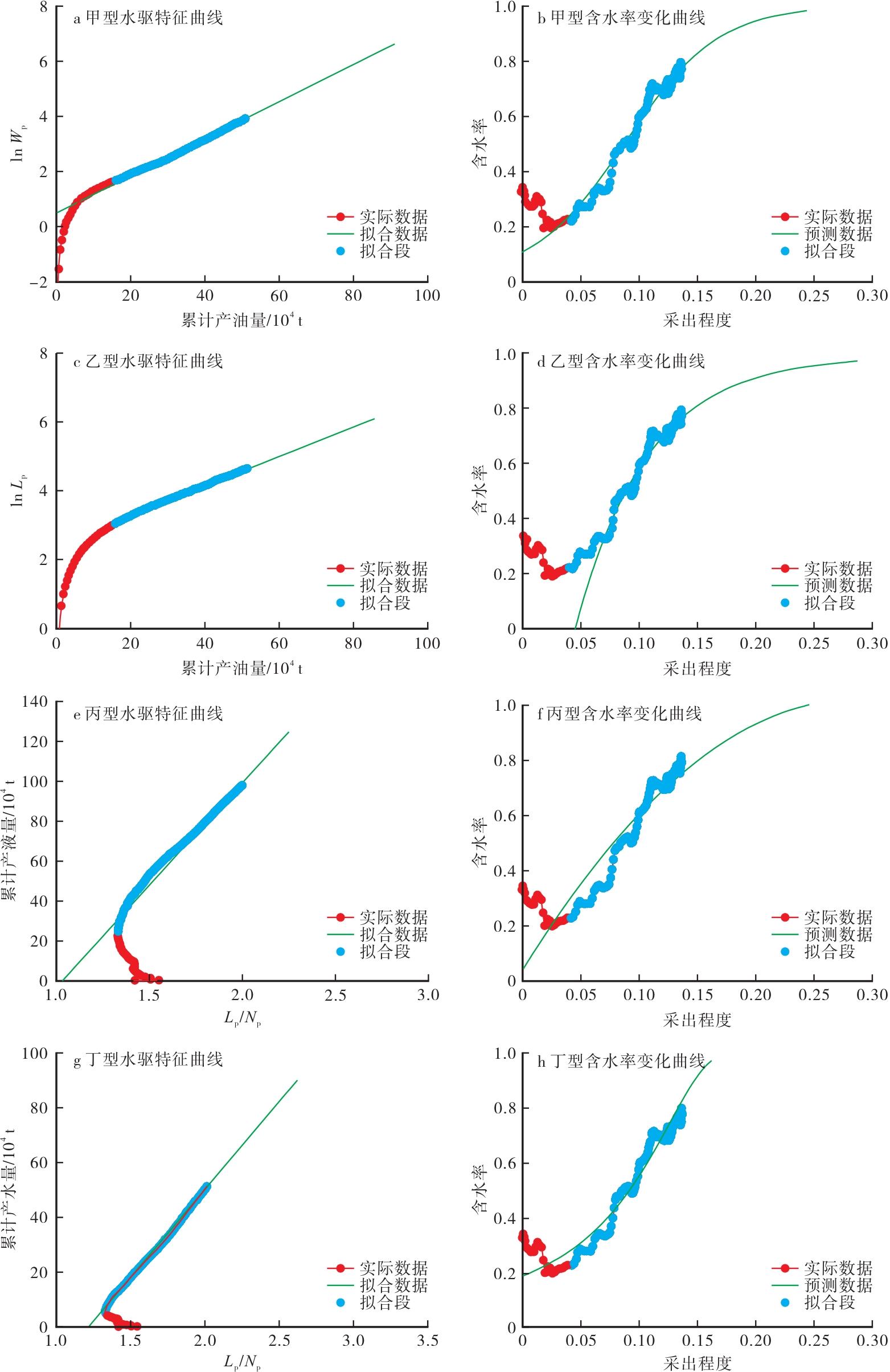

图5

表6

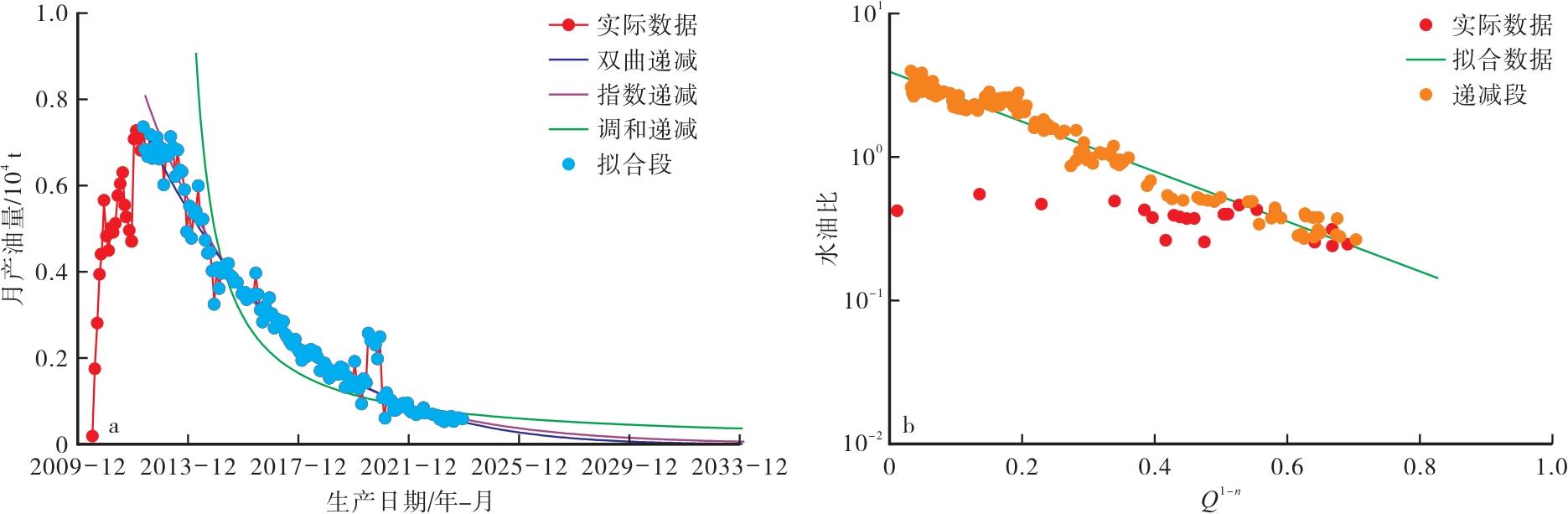

图6

参考文献 19

[1]	俞启泰. 使用水驱特征曲线应重视的几个问题[J]. 新疆石油地质, 2000, 21(1):58-61.
	YU Qitai. Several considerable problems in application of water drive curves[J]. Xinjiang Petroleum Geology, 2000, 21(1):58-61.
[2]	陈元千. 地层原油粘度与水驱曲线法关系的研究[J]. 新疆石油地质, 1998, 19(1):61-67.
	CHEN Yuanqian. Study on the relation between formation oil viscosity and water drive curve method[J]. Xinjiang Petroleum Geology, 1998, 19(1):61-67.
[3]	李斌, 杨志鹏, 李长柱. 关于是否根据原油粘度选择水驱特征曲线之我见[J]. 石油科技论坛, 2004, 23(2):40-44.
	LI Bin, YANG Zhipeng, LI Changzhu. My viewpoint about whether or not choosing waterdrive curve by oil viscosity[J]. Petroleum Science and Technology Forum, 2004, 23(2):40-44.
[4]	吕晓光, 李伟. 水驱油藏特高含水阶段提高采收率可行性研究及技术对策[J]. 油气地质与采收率, 2022, 29(6):130-137.
	LÜ Xiaoguang, LI Wei. Feasibility and technologies for improving recovery at extra-high water cut development stage in waterflooding reservoirs[J]. Petroleum Geology and Recovery Efficiency, 2022, 29(6):130-137.
[5]	高文君, 徐君. 常用水驱特征曲线理论研究[J]. 石油学报, 2007, 28(3):89-92. doi: 10.7623/syxb200703017
	GAO Wenjun, XU Jun. Theoretical study on common water-drive characteristic curves[J]. Acta Petrolei Sinica, 2007, 28(3):89-92. doi: 10.7623/syxb200703017
[6]	高文君, 刘致远, 薛龙龙. 利用反向推理方法确定水驱特征曲线渗流方程[J]. 断块油气田, 2020, 27(4):478-483.
	GAO Wenjun, LIU Zhiyuan, XUE Longlong. Determination of seepatge equation of water drive characteristic curve by reverse derivation method[J]. Fault-Block Oil & Gas Field, 2020, 27(4):478-483.
[7]	陈元千, 李剑. 中国新版《石油可采储量计算方法》标准中存在的主要问题及建议[J]. 油气地质与采收率, 2014, 21(5):8-13.
	CHEN Yuanqian, LI Jian. Reviews on problems and recommendations for new edition standard of the estimated methods of oil recoverable reserves in China[J]. Petroleum Geology and Recovery Efficiency, 2014, 21(5):8-13.
[8]	李良政, 韩进强, 陈据. 多种水驱特征曲线法预测可采储量的选值方法[J]. 新疆石油地质, 2017, 38(6):719-722.
	LI Liangzheng, HAN Jinqiang, CHEN Ju. Optimization of predicted recoverable reserves by using water drive type curves[J]. Xinjiang Petroleum Geology, 2017, 38(6):719-722.
[9]	俞启泰. 为什么要根据原油粘度选择水驱特征曲线[J]. 新疆石油地质, 1998, 19(4):315-320.
	YU Qitai. Why choosing waterdrive curve by oil viscosity[J]. Xinjiang Petroleum Geology, 1998, 19(4):315-320.
[10]	张金庆, 孙福街, 安桂荣. 水驱油田含水上升规律和递减规律研究[J]. 油气地质与采收率, 2011, 18(6):82-85.
	ZHANG Jinqing, SUN Fujie, AN Guirong. Study on incremental law of water cut and decline law in water drive oilfield[J]. Petroleum Geology and Recovery Efficiency, 2011, 18(6):82-85.
[11]	姜瑞忠, 汪洋, 何伟, 等. 水驱特征曲线和产量递减规律在克拉玛依油田八区的应用[J]. 新疆石油地质, 2014, 35(3):337-341.
	JIANG Ruizhong, WANG Yang, HE Wei, et al. Application of water drive type curves and production decline law in District No.8 of Karamay oilfield[J]. Xinjiang Petroleum Geology, 2014, 35(3):337-341.
[12]	高文君, 刘瑛. 产量递减规律与水驱特征曲线的关系[J]. 断块油气田, 2002, 9(3):45-49.
	GAO Wenjun, LIU Ying. The relationship of the production decline and the water drive curve[J]. Fault-Block Oil & Gas Field, 2002, 9(3):45-49.
[13]	石明杰, 仲继东, 刘贺涛, 等. 水驱特征曲线与产量递减曲线在油田开发后期的综合应用[J]. 大庆石油地质与开发, 2004, 23(4):26-27.
	SHI Mingjie, ZHONG Jidong, LIU Hetao, et al. Comprehensive application of water drive feature curve and production decline curve in late period of oilfield development[J]. Petroleum Geology & Oilfield Development in Daqing, 2004, 23(4):26-27.
[14]	计秉玉. 产量递减方程的渗流理论基础[J]. 石油学报, 1995, 16(3):86-91. doi: 10.7623/syxb199503013
	JI Bingyu. The fundamentals of seepage flow theory used on the production decline equations[J]. Acta Petrolei Sinica, 1995, 16(3):86-91. doi: 10.7623/syxb199503013
[15]	陶自强, 田秀霞. 水驱曲线极限含水率选值问题研究[J]. 天津科技, 2004, 31(4):14-15.
	TAO Ziqiang, TIAN Xiuxia. Research on the selection of limit water cut in water drive curve[J]. Tianjin Science & Technology, 2004, 31(4):14-15.
[16]	王成宏. 对新疆油田产量递减规律的研究和认识[J]. 中国石油和化工标准与质量, 2016, 36(23):9-10.
	WANG Chenghong. Research and understanding of the law of production decline in Xinjiang oilfield[J]. Chinese Petroleum and Chemical Standards and Quality, 2016, 36(23):9-10.
[17]	俞启泰, 陈素珍, 李文兴. 水驱油田的Arps递减规律[J]. 新疆石油地质, 1998, 19(2):58-61.
	YU Qitai, CHEN Suzhen, LI Wenxing. Arps decline of waterflooding oilfields[J]. Xinjiang Petroleum Geology, 1998, 19(2):58-61.
[18]	门海文, 张静, 魏海军, 等. 油气藏产量旋回泛函数学模型的建立及应用[J]. 新疆石油地质, 2023, 44(3):365-374.
	MEN Haiwen, ZHANG Jing, WEI Haijun, et al. Establishment and application of functional mathematical model for production cycle of oil and gas reservoirs[J]. Xinjiang Petroleum Geology, 2023, 44(3):365-374.
[19]	李婧, 范晖, 刘春茹, 等. 新型油水相渗数学模型的建立及应用[J]. 新疆石油地质, 2023, 44(1):70-75.
	LI Jing, FAN Hui, LIU Chunru, et al. Establishment and application of a new mathematical model of oil/water relative permeability[J]. Xinjiang Petroleum Geology, 2023, 44(1):70-75.

曲线类型	a	10^-3b	相关系数	按标准预测可采储量/10⁴ t	N_p与N_pfit相关系数
甲型	-0.685 7	3.906 4	0.976 1	1 131.931 0	0.451 0
乙型	2.242 2	1.284 6	0.975 9	1 545.824 0	0.176 3
丙型	0.437 4	0.836 3	0.996 9	1 083.899 5	0.433 2
丁型	1.067 1	1.005 5	1.000 0	957.687 4	0.955 1

递减类型	初始递减产量/10⁴ t	初始递减率	递减指数	按标准预测可采储量/10⁴ t	相关系数
指数递减	39.743 0	0.173 5	0	937.874 0	0.990 0
双曲递减	50.673 4	0.261 7	0.202 6	943.192 5	0.993 1
调和递减	-8.526 5	-0.309 7	1.000 0	959.158 9	0.909 4

曲线类型	a	10^-3b	相关系数	按标准预测可采储量/10⁴ t	N_p与N_pfit相关系数
甲型	-0.289 4	4.335 8	0.990 6	917.976 7	0.984 9
乙型	1.059 9	3.030 2	0.980 5	922.504 8	0.986 3
丙型	0.660 3	0.967 3	1.000 0	915.044 1	0.997 4
丁型	1.418 6	0.990 1	1.000 0	916.690 2	0.996 6

递减类型	初始递减产量/10⁴ t	初始递减率	递减指数	按标准预测可采储量/10⁴ t	相关系数
指数递减	65.079 9	0.260 3	0	1 012.602 5	0.983 3
双曲递减	90.742 3	0.457 5	0.265 1	1 021.500 6	0.993 6
调和递减	-20.705 5	-0.612 8	1.000 0	1 047.539 4	0.970 5

曲线模型	a	10^-2b	相关系数	按标准预测可采储量/10⁴ t	N_p与N_pfit相关系数
甲型	0.211 4	2.932 6	0.998 9	90.338 2	0.985 8
乙型	1.348 2	1.656 8	0.998 4	106.780 7	0.979 7
丙型	1.026 5	0.935 9	0.992 5	91.542 6	0.984 5
丁型	1.223 6	1.544 6	0.999 3	60.369 1	0.971 7
