北布扎奇油田VI区的水流优势通道

doi:10.7657/XJPG20220418

摘要/Abstract

摘要：

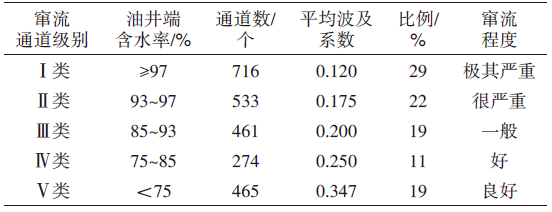

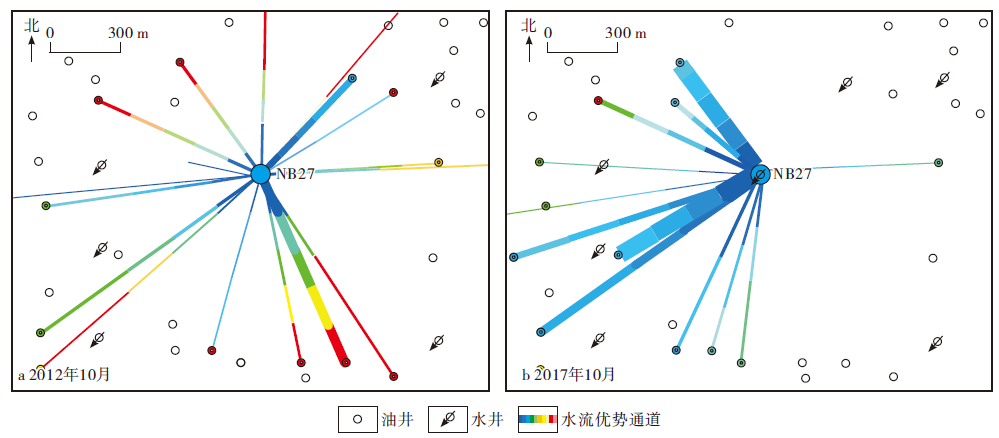

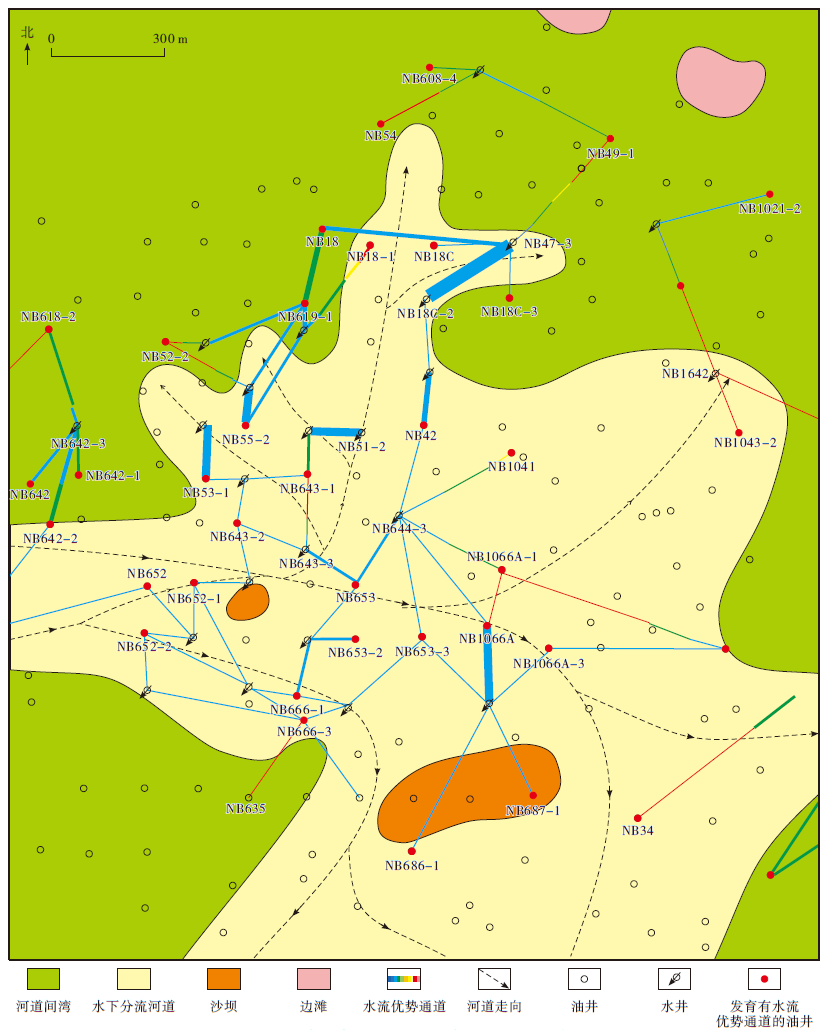

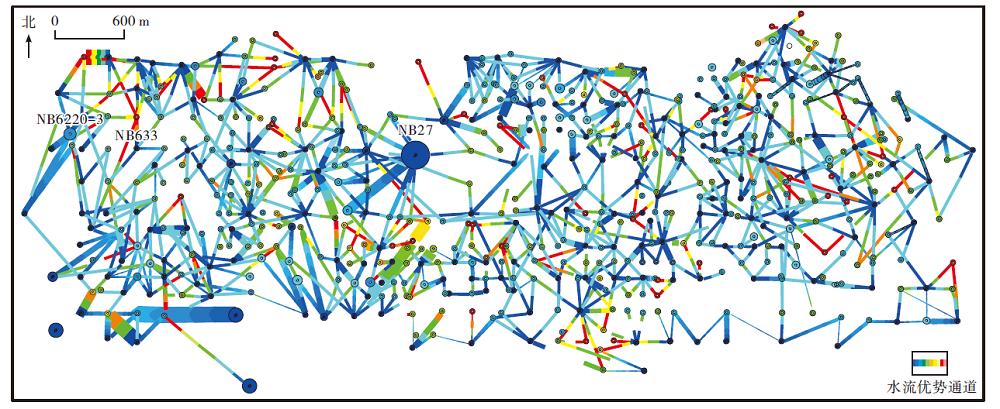

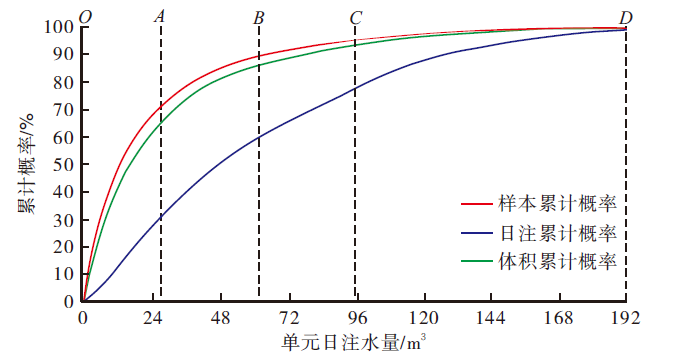

为了研究北布扎奇油田水流优势通道的发育特征,以北布扎奇油田Ⅵ区为研究对象,利用流线型数值模拟技术对研究区目的层水流优势通道进行识别,并定量表征水流优势通道的发育程度及形成规律。结果表明,研究区Ⅰ类和Ⅱ类通道是无效循环水流通道,水驱波及系数仅为0.120~0.175,其中,Ⅰ类通道油井端含水率大于97%,平均波及系数为0.120,窜流极其严重;Ⅱ类通道油井端含水率93%~97%,平均波及系数为0.175,窜流很严重。水流优势通道的数量较少,体积有限,但占据了多数水量,导致注水低效。优势通道数量与注水井和产油井间的距离成反比;主河道位置是水流优势通道形成的主要区域,特别是注水井和生产井连线平行于主河道时;油井和水井的生产时间长、累计产液量与注水量比值高,日产液量较大的井附近形成优势通道的概率更高;并且通道随油井投产及注采关系调整而变化。

关键词: 北布扎奇油田, 水流优势通道, 流线型数值模拟, 定量表征, 稠油油藏, 波及系数

Abstract:

In order to understand the development characteristics of the dominant water flow channels in the North Buzachi oilfield, the dominant water flow channels in the target layers in Block VI of the oilfield were identified by using streamlined numerical simulation technology, and the development degree and formation pattern of the dominant water flow channels were quantitatively characterized. The results show that Class Ⅰand Ⅱ channels in the study area are the water flow channels with ineffective circulation, with water flooding sweep coefficient of only 0.120-0.175. For Class I channels, the water cut at the producer is greater than 97%, and the average sweep coefficient is 0.120, with extremely serious channeling. For Class II channels, the water cut at the producer ranges from 93% to 97%, and the average sweep coefficient is 0.175, with serious channeling. The dominant water flow channels are small in number and limited in volume, but they occupy most of the water volume, which results in inefficient water injection. The number of dominant channels is inversely proportional to the distance between injector and producer. The location of the main river channel is the main area where the dominant water flow channels are formed, especially in the direction that the connection line between the injector and the producer is parallel to the sedimentary direction of the main river channel. The longer the producing time of the producer and injector, and the higher the ratio of cumulative liquid production to water injection, the higher the probability of dominant channel occurs near the wells with high daily liquid production. Furthermore, the dominant water flow channels change with the initial production time of the producer and the adjustment of injector-producer relationship.

Key words: North Buzachi oilfield, dominant water flow channel, streamlined numerical simulation, quantitative characterization, heavy oil reservoir, sweep coefficient

中图分类号:

TE312

池云刚, 唐致霞, 魏静, 周惠泽, 张文辉. 北布扎奇油田VI区的水流优势通道[J]. 新疆石油地质, 2022, 43(4): 496-504.

CHI Yungang, TANG Zhixia, WEI Jing, ZHOU Huize, ZHANG Wenhui. Dominant Water Flow Channels in Block VI of North Buzachi Oilfield[J]. Xinjiang Petroleum Geology, 2022, 43(4): 496-504.

图/表 14

图1

图2

图3

图4

图5

表1

图6

图7

图8

图9

表2

表3

图10

图11

参考文献 20

[1]	孙明, 李治平. 注水开发砂岩油藏优势渗流通道识别与描述[J]. 断块油气田, 2009, 16(3):50-52.
	SUN Ming, LI Zhiping. Identification and description of preferential percolation path for waterflooding sandstone reservoir[J]. Fault-Block Oil & Gas Field, 2009, 16(3):50-52.
[2]	陈德坡, 冯其红, 王森, 等. 利用井间动态连通性模型定量描述优势通道[J]. 大庆石油地质与开发, 2013, 32(6):81-85.
	CHEN Depo, FENG Qihong, WANG Sen, et al. Predominant channels quantitatively characterized by dynamic interwell connectivity model[J]. Petroleum Geology & Oilfield Development in Daqing, 2013, 32(6):81-85.
[3]	吴应川, 任玉林, 姜汉桥, 等. 优势渗流通道对油藏生产动态影响的精细数值模拟研究[J]. 中国海上油气, 2008, 20(6):392-394.
	WU Yingchuan, REN Yulin, JIANG Hanqiao, et al. A refined numerical simulation of impacts of preferential seepage channels upon reservoir production performance[J]. China Offshore Oil and Gas, 2008, 20(6):392-394.
[4]	汪玉琴, 陈方鸿, 顾鸿君, 等. 利用示踪剂研究井间水流优势通道[J]. 新疆石油地质, 2011, 32(5):512-514.
	WANG Yuqin, CHEN Fanghong, GU Hongjun, et al. Using tracer to study interwell water flow predominant channel[J]. Xinjiang Petroleum Geology, 2011, 32(5):512-514.
[5]	申宝剑, 潘安阳, 张俊, 等. 一种页岩气井连通性评价的新型示踪剂应用研究[J]. 石油实验地质, 2021, 43(5):855-861.
	SHEN Baojian, PAN Anyang, ZHANG Jun, et al. Evaluating the connectivity of shale gas wells by new rare element tracers[J]. Petroleum Geology & Experiment, 2021, 43(5):855-861.
[6]	孙焕泉, 王海涛, 吴光焕, 等. 稠油油藏注CO₂提高采收率影响因素研究[J]. 石油实验地质, 2020, 42(6):1009-1013.
	SUN Huanquan, WANG Haitao, WU Guanghuan, et al. CO₂EOR factors in heavy oil reservoirs[J]. Petroleum Geology & Experiment, 2020, 42(6):1009-1013.
[7]	盖德林, 刘春天, 贾振岐. 注采井间水流优势方向的识别[J]. 大庆石油学院学报, 2007, 31(5):47-50.
	GAI Delin, LIU Chuntian, JIA Zhenqi. Recognition of dominant water flowing direction between injectors and producers[J]. Journal of Northeast Petroleum University, 2007, 31(5):47-50.
[8]	DAVIES J, DONGEN H V, OFTEDAL A, et al. Interwell communication as a means to detect a thief zone using DTS in a Danish offshore well[C]. Houston,Texas,USA. Offshore Technology Conference, 2013:1-15.
[9]	窦之林, 流芳, 张志海, 等. 大孔道诊断和描述技术研究[J]. 石油勘探与开发, 2001, 28(1):75-77.
	DOU Zhilin, LIU Fang, ZHANG Zhihai, et al. Research on the diagnosis and description of wormhole[J]. Petroleum Exploration and Development, 2001, 28(1):75-77.
[10]	敬豪, 张广东, 孙大龙, 等. 注水倍数对储层微观孔隙结构影响实验研究[J]. 石油实验地质, 2020, 42(6):1041-1046.
	JING Hao, ZHANG Guangdong, SUN Dalong, et al. The influence of water flooding multiples on reservoir micro pore structure[J]. Petroleum Geology & Experiment, 2020, 42(6):1041-1046.
[11]	曾流芳, 赵国景, 张子海, 等. 疏松砂岩油藏大孔道形成机理及判别方法[J]. 应用基础与工程科学学报, 2002, 10(3):268-276.
	ZENG Liufang, ZHAO Guojing, ZHANG Zihai, et al. The macroscopic throats forming mechanism of unsolidated sand-reservior and their identyfying method[J]. Journal of Basic Science and Engineering, 2002, 10(3):268-276.
[12]	曾流芳, 陈柏平, 王学忠. 疏松砂岩油藏大孔道定量描述初步研究[J]. 油气地质与采收率, 2002, 9(4):44-45.
	ZENG Liufang, CHEN Baiping, WANG Xuezhong. Preliminary study on quantitative description of high capacity channel in loose sandstone reservoir[J]. Petroleum Geology and Recovery Efficiency, 2002, 9(4):44-45.
[13]	陈程, 宋新民, 李军. 曲流河点砂坝储层水流优势通道及其对剩余油分布的控制[J]. 石油学报, 2012, 33(2):257-263.
	CHEN Cheng, SONG Xinmin, LI Jun. Dominant flow channels of point-bar reservoirs and their control on the distribution of remaining oils[J]. Acta Petrolei Sinica, 2012, 33(2):257-263.
[14]	齐俊罗. 大孔道形成与演化的流固耦合数值模拟方法研究[D]. 山东青岛: 中国石油大学(华东), 2009.
	QI Junluo. Researches on the simulation method of fluid-solid coupling during the formation and evolution of thief zone[D]. Qingdao,Shandong: China University of Petroleum(East China), 2009.
[15]	石洪福. 稠油底水油藏水平井分段完井方法及应用[J]. 新疆石油地质, 2020, 41(2):232-236.
	SHI Hongfu. A method and application of horizontal well segmentation in heavy oil reservoirs with bottom water[J]. Xinjiang Petroleum Geology, 2020, 41(2):232-236.
[16]	孙阿香. 水驱砂岩油藏水流优势通道识别[D]. 黑龙江大庆: 东北石油大学, 2015.
	SUN Axiang. Identification of the dominant flow channels for waterflooding sandstone reservoir[D]. Daqing,Heilongjiang: Northeast Petroleum University, 2015.
[17]	邓晓娟, 张晓磊, 朱静, 等. 储层水流优势通道模式及识别分析[J]. 石油钻采工艺, 2014, 36(5):69-74.
	DENG Xiaojuan, ZHANG Xiaolei, ZHU Jing, et al. Pattern of preferential reservoir water flow passage and discriminator analysis[J]. Oil Drilling & Production Technology, 2014, 36(5):69-74.
[18]	谢明英, 闫正和, 卫喜辉, 等. 海上边水薄层稠油油藏天然能量分区[J]. 新疆石油地质, 2021, 42(5):579-583.
	XIE Mingying, YAN Zhenghe, WEI Xihui, et al. Natural energy partition in offshore thin heavy oil reservoirs with edge water[J]. Xinjiang Petroleum Geology, 2021, 42(5):579-583.
[19]	郑定业, 庞雄奇, 姜福杰, 等. 鄂尔多斯盆地临兴地区上古生界致密气成藏特征及物理模拟[J]. 石油与天然气地质, 2020, 41(4):744-754.
	ZHENG Dingye, PANG Xiongqi, JIANG Fujie, et al. Characteristics and physical simulation of the Upper Paleozoic tight gas accumulation in Linxing area,Ordos basin[J]. Oil & Gas Geology, 2020, 41(4):744-754.
[20]	油气田开发专业标准化委员会. 油藏分类:第3部分:SY/T 6169—1995[S]. 北京: 石油工业出版社, 1995.
	Standardization Committee for Oil and Gas Field Development. Reservoir classification:Part 3:SY/T 6169—1995[S]Beijing: Petroleum Industry Press, 1995.

层系	主力层	累计产油量/ 10⁴t	剩余油储量/ 10⁴t	波及系数	采出程度/ %	平均日产油量/ t	累计注采比	累计亏空/ 10⁴m³
白垩系	K₂-B₂	79.58	2 003.51	0.20	3.82	1.41	0.95	21.68
	K₂-B₁	19.28	174.93	0.29	9.93	0.58	0.79	25.20
	K₂-C₁	52.66	1 185.65	0.15	4.25	1.14	0.92	22.52
侏罗系	J₁-B	585.82	2 970.83	0.22	16.47	2.94	0.68	1 171.00
	J₁-C	133.51	802.22	0.18	14.27	1.50	1.13	-96.07
	J₂-A	213.86	1 340.93	0.19	13.76	2.40	0.92	106.82

产液量级别/ （m³·d^-1）	井数/ 口	平均日产液量/ m³	占总井数比例/ %	产液所占比例/ %	单井平均日产油量/ t
>115	87	16 060	12.0	50.23	6.40
>120	78	15 007	10.8	46.93	6.59
>150	57	12 139	7.9	37.96	7.20
>200	34	8 074	4.7	25.25	8.20
>250	9	2 472	1.2	7.73	6.61
