基于时移微重力监测技术的SAGD蒸汽腔扩展规律研究

doi:10.7657/XJPG20240606

摘要/Abstract

摘要：

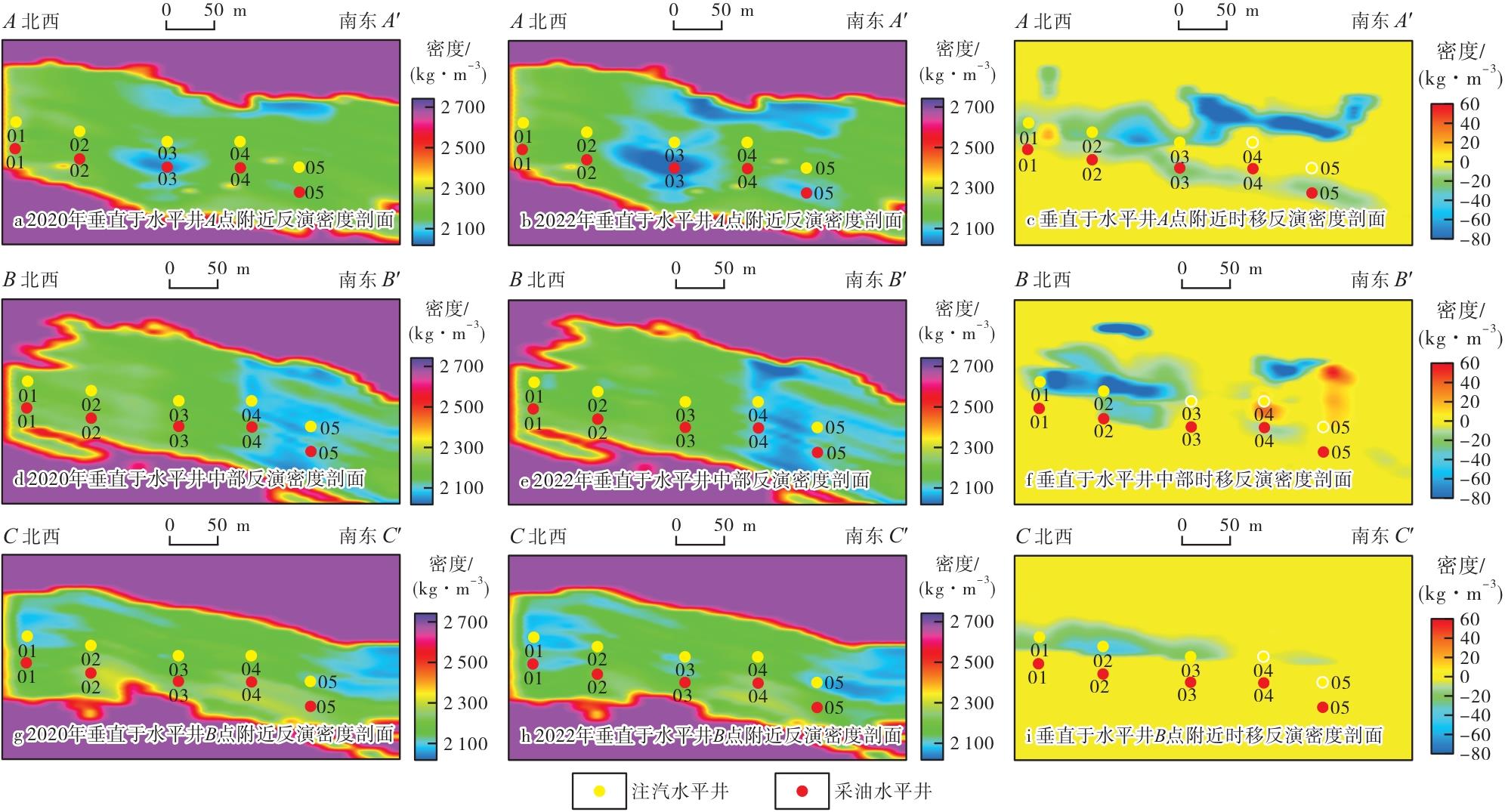

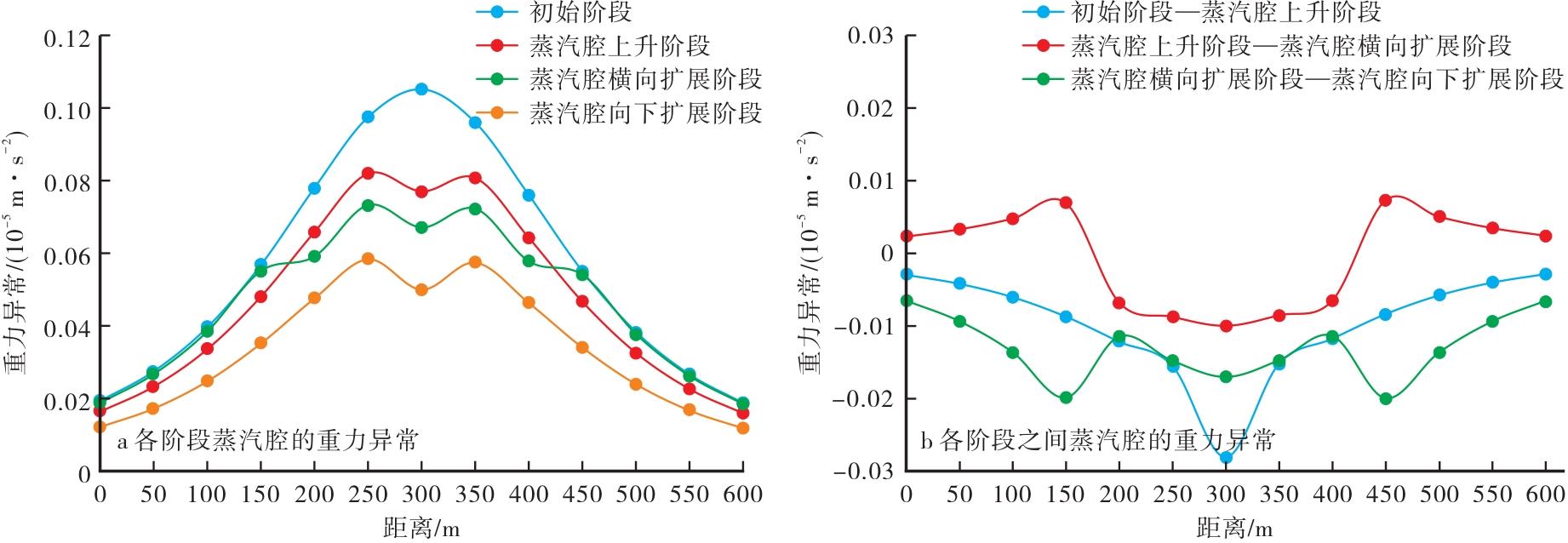

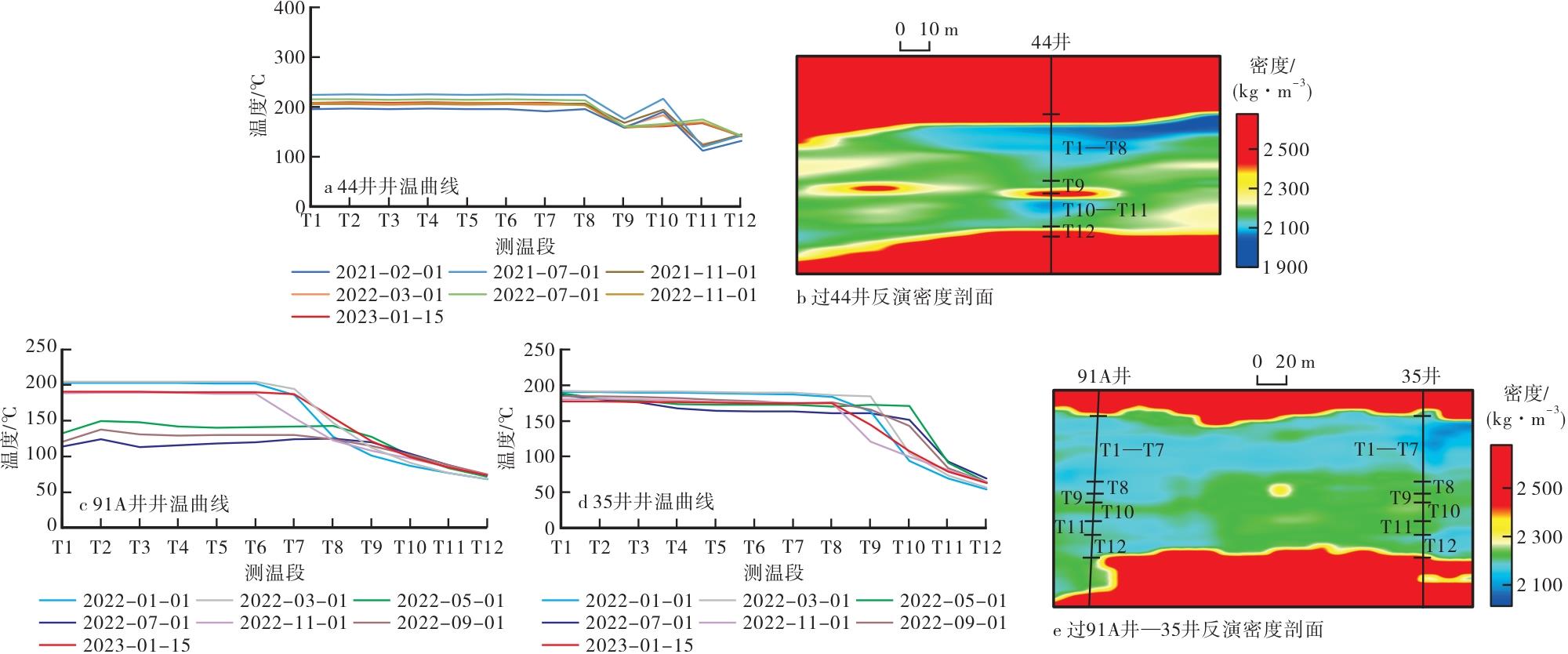

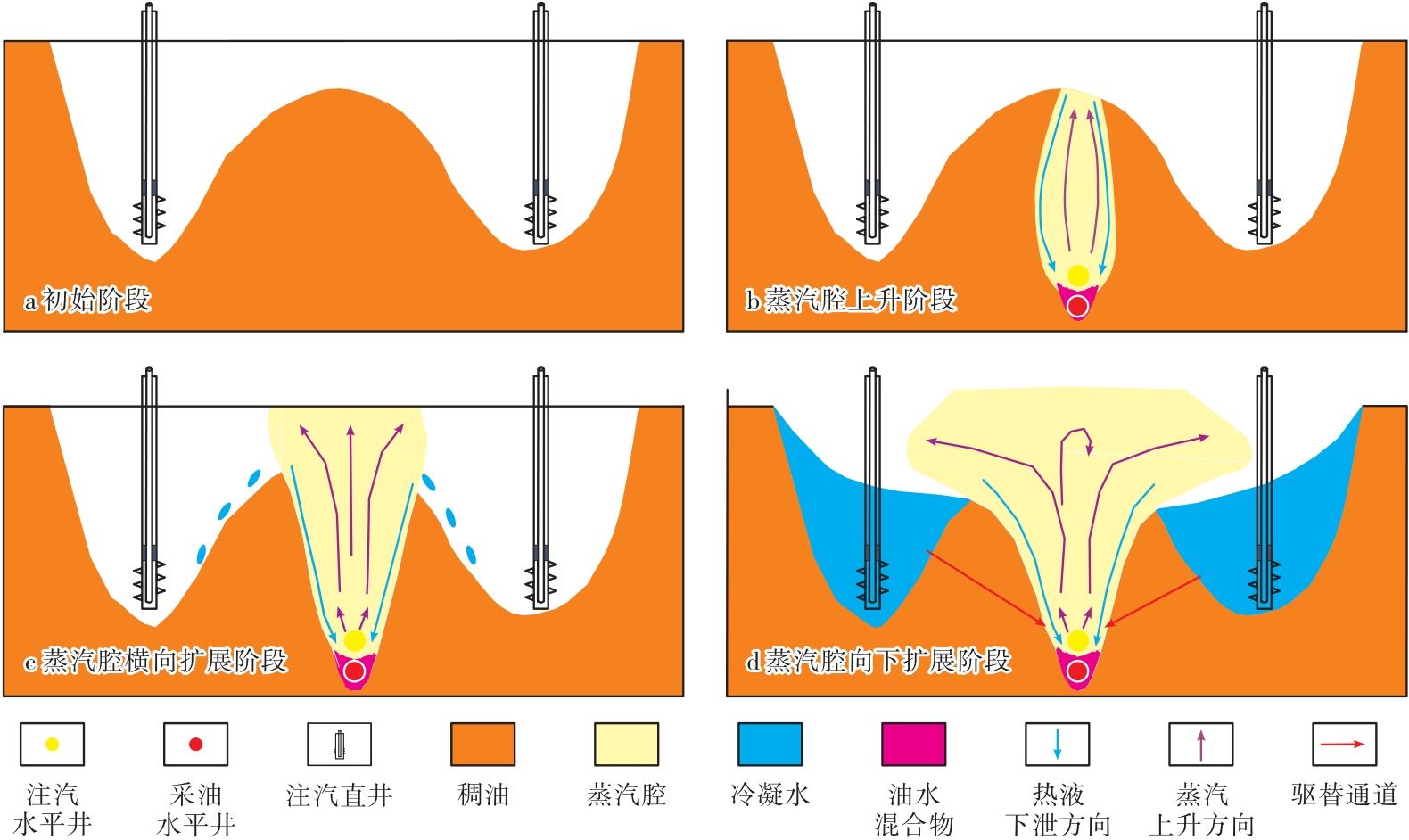

为揭示稠油油藏蒸汽辅助重力泄油（SAGD）蒸汽腔扩展规律，利用时移微重力监测技术，对新疆重油油田H井区侏罗系齐古组稠油油藏的蒸汽腔扩展规律进行研究。通过时移微重力监测获取了反映油藏剩余密度的剩余重力异常数据，利用该数据进行三维最小二乘反演，确定了蒸汽腔的纵向分布，并提出了解释蒸汽腔扩展规律与剩余重力异常关系的方法。该方法能够有效解释H井区5个井组蒸汽腔的扩展规律，把蒸汽腔的演变过程划分为上升阶段、横向扩展阶段及向下扩展阶段，并利用井温监测验证了该方法的准确性与可靠性。该方法揭示了SAGD蒸汽腔在油藏中的扩展规律，为稠油油藏的高效开发提供了技术支持，有助于优化稠油油藏的生产调控措施，也为同类型油藏开发提供了理论和实践基础。

关键词: 稠油油藏, 时移微重力, 蒸汽辅助重力泄油, 蒸汽腔, 扩展规律, 重力异常, 剩余密度

Abstract:

To reveal expansion pattern of steam chambers in heavy oil reservoirs during steam-assisted gravity drainage (SAGD), the time-lapse microgravity monitoring technology was employed to investigate the expansion pattern of SAGD steam chambers in the heavy oil reservoirs of the Jurassic Qigu formation in the H well block of the Xinjiang oilfield. This technology provided residual gravity anomaly data reflecting the remaining density of the reservoir. Using these data, a 3D least-squares inversion was performed to accurately depict the vertical distribution of the steam chambers. Furthermore, a method for interpreting the relationship between the steam chamber expansion pattern and residual gravity anomalies was proposed. The results indicate that the evolution of the steam chambers can be divided into three stages: rising, lateral expansion, and downward expansion. The proposed method can effectively explain the expansion patterns of the steam chambers in five well groups in the H well block, and its accuracy and reliability were validated with well temperature data. The method reveals the expansion patterns of the SAGD steam chambers in the reservoirs, providing a technical support for the efficient development of heavy oil reservoirs and aiding in the optimization of production control measures. It also offers a theoretical and practical foundation for similar reservoir development.

Key words: heavy oil reservoir, time-lapse microgravity, steam-assisted gravity drainage, steam chamber, expansion pattern, gravity anomaly, residual density

中图分类号:

TE345

郑爱萍, 刘欢, 黄后传, 赵婧含, 杨登杰, 马建强, 李玄. 基于时移微重力监测技术的SAGD蒸汽腔扩展规律研究[J]. 新疆石油地质, 2024, 45(6): 680-686.

ZHENG Aiping, LIU Huan, HUANG Houchuan, ZHAO Jinghan, YANG Dengjie, MA Jianqiang, LI Xuan. Research on Expansion Patterns of SAGD Steam Chambers Based on Time-Lapse Microgravity Monitoring Technology[J]. Xinjiang Petroleum Geology, 2024, 45(6): 680-686.

图/表 9

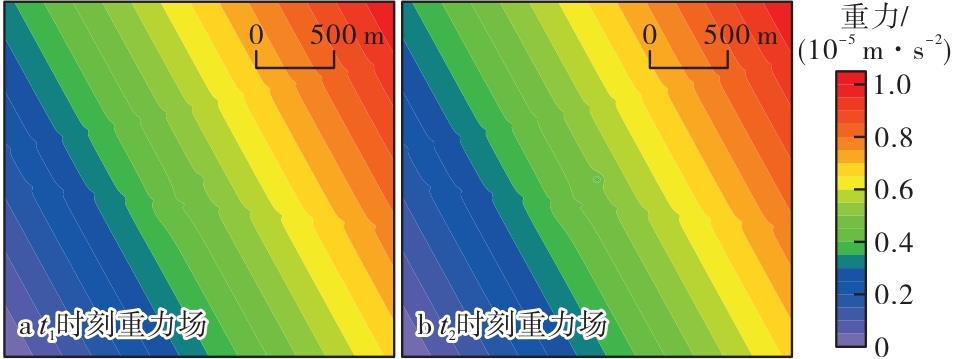

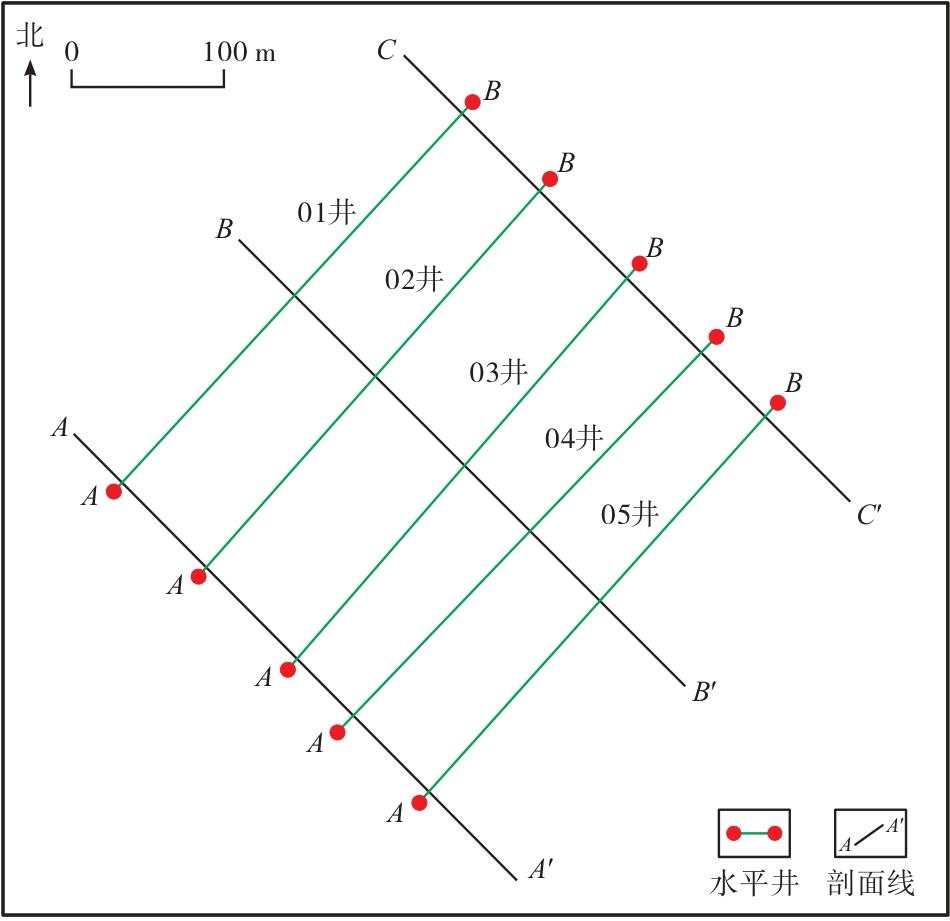

图1

表1

图2

图3

图4

图5

图6

图7

图8

参考文献 20

[1]	李苒, 陈掌星, 吴克柳, 等. 特超稠油SAGD 高效开发技术研究综述[J]. 中国科学:技术科学, 2020, 50(6):729-741.
	LI Ran, CHEN Zhangxing, WU Keliu, et al. Review on the effective recovery of SAGD production for extra and super heavy oil reservoirs[J]. Scientia Sinica Technologica, 2020, 50(6):729-741.
[2]	IRANI M, GHANNADI S. Understanding the heat-transfer mechanism in the steam-assisted-gravity-drainage (SAGD)process and comparing the conduction and convection flux in bitumen reservoirs[J]. SPE Journal, 2013, 18(1):134-145.
[3]	孟祥兵, 孙新革, 罗池辉, 等. 强非均质超稠油SAGD储集层升级扩容数值模拟[J]. 新疆石油地质, 2023, 44(2):210-216.
	MENG Xiangbing, SUN Xinge, LUO Chihui, et al. Numerical simulation on upgrading and dilation of SAGD ultra-heavy oil reservoirs with high heterogeneity[J]. Xinjiang Petroleum Geology, 2023, 44(2):210-216.
[4]	郭云飞, 刘慧卿, 刘人杰, 等. 稠油油藏 SAGD蒸汽腔位置综合评估及产量预测[J]. 新疆石油地质, 2022, 43(4):484-490.
	GUO Yunfei, LIU Huiqing, LIU Renjie, et al. Comprehensive evaluation on steam chamber location and production prediction of SAGD in heavy oil reservoirs[J]. Xinjiang Petroleum Geology, 2022, 43(4):484-490.
[5]	赵洪岩, 葛明曦, 张鸿. 辽河油田超稠油蒸汽驱技术界限研究与应用[J]. 特种油气藏, 2022, 29(2):98-103. doi: 10.3969/j.issn.1006-6535.2022.02.014
	ZHAO Hongyan, GE Mingxi, ZHANG Hong. Research and application of steam flooding technical limit for super heavy oil in Liaohe oilfield[J]. Special Oil & Gas Reservoirs, 2022, 29(2):98-103.
[6]	周游, 鹿腾, 武守亚, 等. 双水平井蒸汽辅助重力泄油蒸汽腔扩展速度计算模型及其应用[J]. 石油勘探与开发, 2019, 46(2):334-341. doi: 10.11698/PED.2019.02.13
	ZHOU You, LU Teng, WU Shouya, et al. Models of steam-assisted gravity drainage (SAGD)steam chamber expanding velocity in double horizontal wells and its application[J]. Petroleum Exploration and Development, 2019, 46(2):334-341.
[7]	王青, 张洪, 罗池辉, 等. 基于生产井监测温度的SAGD 蒸汽腔定量描述解析模型[J]. 石油钻采工艺, 2021, 43(2):254-258.
	WANG Qing, ZHANG Hong, LUO Chihui, et al. The production well temperature monitoring based analytical model for the quantitative description of SAGD steam chamber[J]. Oil Drilling & Production Technology, 2021, 43(2):254-258.
[8]	蔡宁骁, 王真理, 周大胜, 等. 注蒸汽稠油热采开发区浅层汽窜的微重力勘探方法[J]. 石油地球物理勘探, 2019, 54(1):235-242.
	CAI Ningxiao, WANG Zhenli, ZHOU Dasheng, et al. A microgravity method for prospecting shallow steam channeling in thermal recovery zones[J]. Oil Geophysical Prospecting, 2019, 54(1):235-242.
[9]	辛坤烈. 蒸汽腔立体监测技术在SAGD开发中的应用[J]. 中外能源, 2018, 23(9):43-51.
	XIN Kunlie. Application of three-dimensional monitoring technique of steam chamber to SAGD development[J]. Sino-Global Energy, 2018, 23(9):43-51.
[10]	HARE J L, FERGUSON J F, BRADY J L. The 4D microgravity method for waterflood surveillance:Part Ⅳ modeling and interpretation of early epoch 4D gravity surveys at Prudhoe Bay,Alaska[J]. Geophysics, 2008, 73(6):173-180.
[11]	ZUMBERGE M, ALNES H, EIKEN O, et al. Precision of seafloor gravity and pressure measurements for reservoir monitoring[J]. Geophysics, 2008, 73(6):133-141.
[12]	李玉君, 任芳祥, 杨立强, 等. 稠油注蒸汽开采蒸汽腔扩展形态4D微重力测量技术[J]. 石油勘探与开发, 2013, 40(3):381-384.
	LI Yujun, REN Fangxiang, YANG Liqiang, et al. Description of steam chamber shape in heavy oil recovery using 4D microgravity measurement technology[J]. Petroleum Exploration and Development, 2013, 40(3):381-384.
[13]	廖伟, 刘国良, 何国林, 等. 基于微重力监测技术的地下储气库库容动用评价方法[J]. 天然气工业, 2022, 42(3):106-113.
	LIAO Wei, LIU Guoliang, HE Guolin, et al. Underground gas storage capacity utilization evaluation method based on microgravity monitoring technology[J]. Natural Gas Industry, 2022, 42(3):106-113.
[14]	蔡贇, 王真理, 梁瑶, 等. 双树复小波变换在时移微重力监测上的应用:以辽河油田SAGD区为例[J]. 地球物理学进展, 2021, 36(2):549-558.
	CAI Yun, WANG Zhenli, LIANG Yao, et al. Application of DTCWT in time-lapse microgravity monitoring:A case study from SAGD area of Liaohe oilfield[J]. Progress in Geophysics, 2021, 36(2):549-558.
[15]	BIOT M A. Theory of propagation of elastic waves in a fluid-saturated porous solid:Ⅱ. higher frequency range[J]. The Journal of the Acoustical Society of America, 1956, 28(2):176-191.
[16]	李勇, 李正文, 李志荣, 等. 储层密度预测技术研究[J]. 石油地球物理勘探, 2007, 42(2):216-219.
	LI Yong, LI Zhengwen, LI Zhirong, et al. Study on reservoir density prediction technique[J]. Oil Geophysical Prospecting, 2007, 42(2):216-219.
[17]	郭良辉, 孟小红, 石磊, 等. 优化滤波方法及其在中国大陆布格重力异常数据处理中的应用[J]. 地球物理学报, 2012, 55(12):4078-4088.
	GUO Lianghui, MENG Xiaohong, SHI Lei, et al. Preferential filtering method and its application to Bouguer gravity anomaly of Chinese continent[J]. Chinese Journal of Geophysics, 2012, 55(12):4078-4088.
[18]	石磊, 陈石, 蒋长胜, 等. 基于优化滤波法对芦山地震震区重力异常特征的分析[J]. 地震学报, 2013, 35(5):704-716.
	SHI Lei, CHEN Shi, JIANG Changsheng, et al. Characteristics of gravity anomaly in Lushan earthquake zone based on preferential filtering method[J]. Acta Seismologica Sinica, 2013, 35(5):704-716.
[19]	王真理. 一种获得剩余重力异常的方法及装置:201711216885.9[P]. 2018-05-08.
	WANG Zhenli. A method and device for acquiring residual gravity anomaly:201711216885.9[P]. 2018-05-08.
[20]	张皓, 刘建松, 黄金辉, 等. 最优化阻尼最小二乘法重力二维反演方法及其应用[J]. 中国西部科技, 2011, 10(31):34-36.
	ZHANG Hao, LIU Jiansong, HUANG Jinhui, et al. The gravity inversion method and application of optimal damping least square method[J]. Science and Technology of West China, 2011, 10(31):34-36.

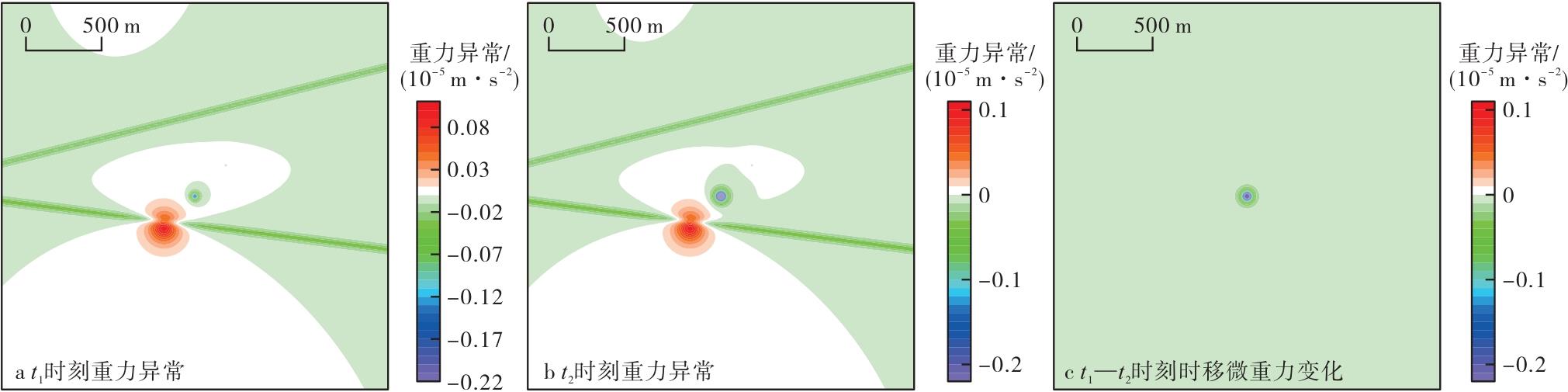

模型编号	模型直径/ km	中心点坐标/ （km，km，km）	顶面深度/ km
1号球体	0.05	（0，0，-0.18）	0.18
2号球体	0.02	（1.45，1.45，-0.20）	0.20
3号球体	0.10	（1.05，1.05，-0.19）	0.19
4号水平长圆柱体	0.02	（1.25，1.93，-0.53）	0.19
5号水平长圆柱体	0.02	（1.25，0.98，-0.53）	0.19
