Fracture Characteristics and Seismic Prediction of Z4 Metamorphic Buried-Hill Reservoir

doi:10.7657/XJPG20240502

Abstract

Abstract:

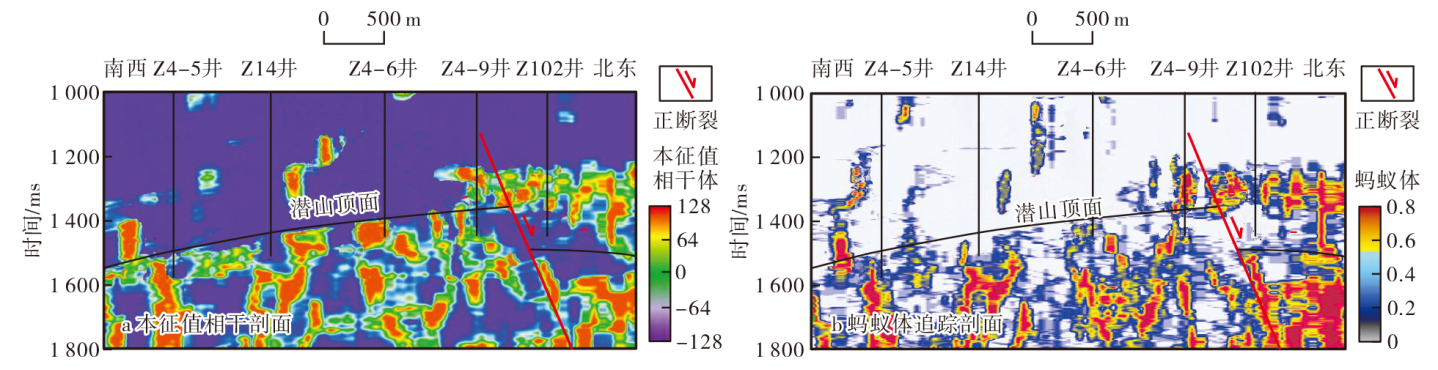

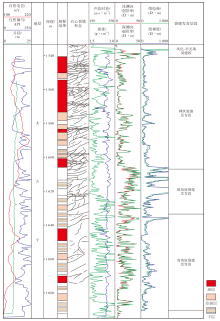

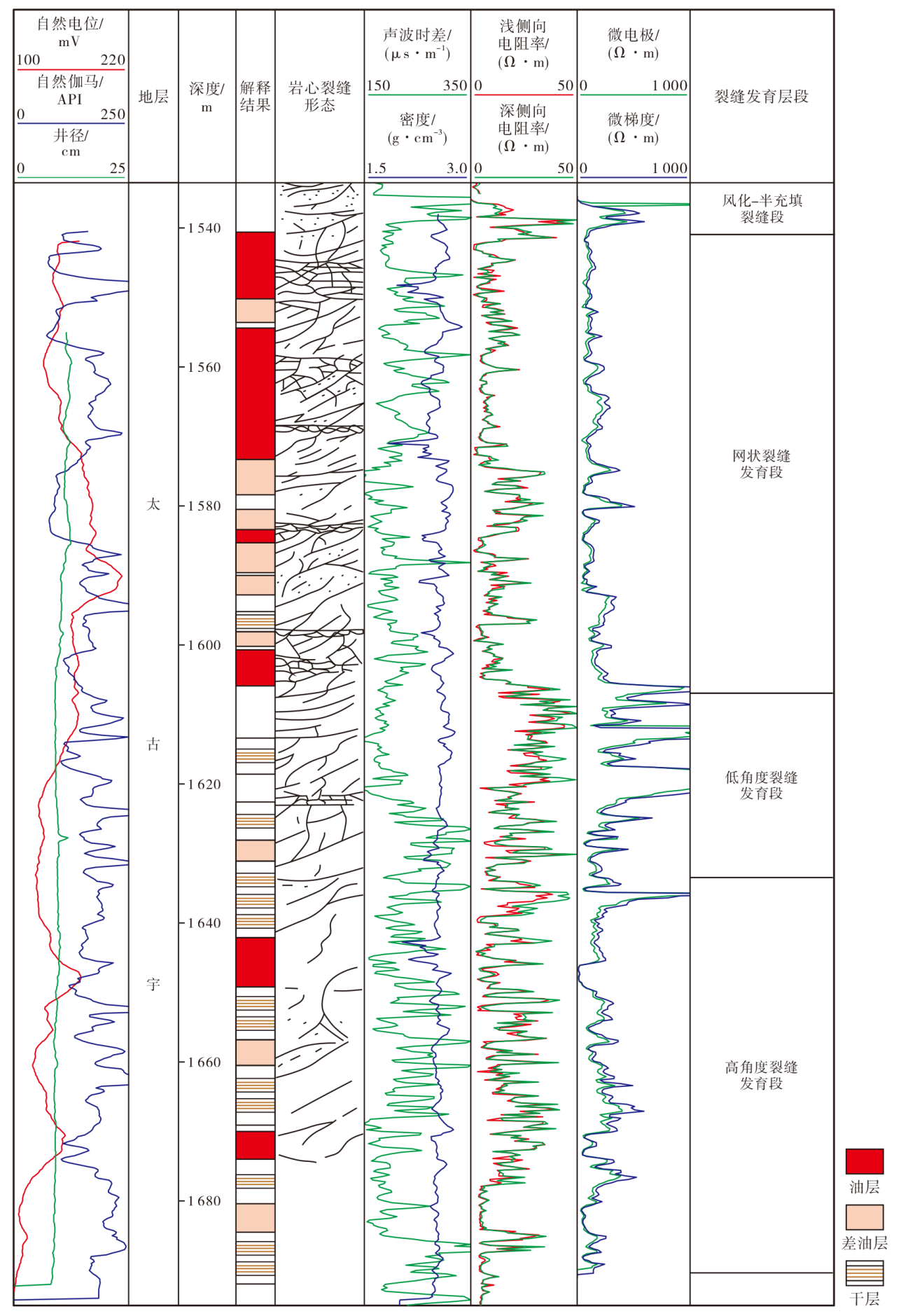

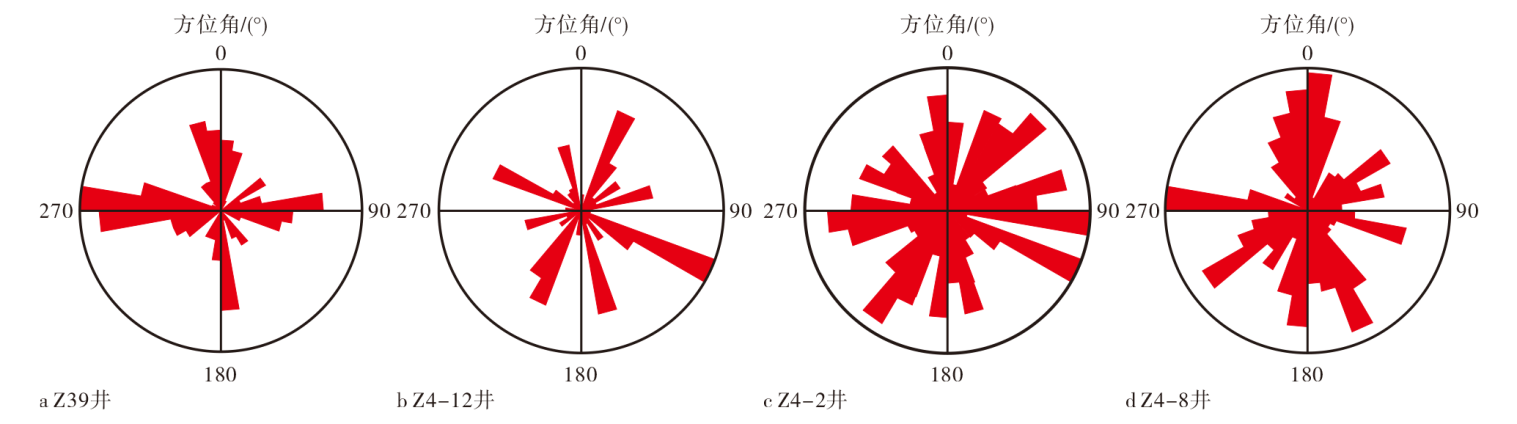

Seismic prediction of fractures is the foundation of fractured reservoir evaluation. Metamorphic buried-hill reservoirs exhibit diverse fracture types, significant variations in fracture development at different reservoir parts, and difficulties in describing fracture heterogeneity. The Z4 metamorphic buried-hill reservoir was investigated for its fracture characteristics and seismic prediction. The development of fractures in the Z4 reservoir has layering characteristics and can be divided into four sections such as weathered-semi-filled fractures at the top, highly developed net-like fractures in the upper part, moderately developed low-angle fractures in the middle part, and poorly developed high-angle fractures at the bottom. A comprehensive fracture prediction technique was proposed, which integrates multi-scale general spectral decomposition, dip-oriented eigenvalue coherent processing, and iterative ant analysis. The fracture orientations and development revealed by cores were compared with the results of seismic prediction, suggesting a high consistency. It is believed that the multi-approach comprehensive fracture seismic prediction technology proposed in this study has high accuracy.

Key words: Dongying sag, Z4 buried-hill reservoir, metamorphic rock, fracture characteristic, seismic prediction, ant

CLC Number:

TE122

DING Sheng, LIU Jinhua, SHANG Yamin, PENG Pai, FU Jinxiang. Fracture Characteristics and Seismic Prediction of Z4 Metamorphic Buried-Hill Reservoir[J]. Xinjiang Petroleum Geology, 2024, 45(5): 516-521.

Figures/Tables 5

References 19

[1]	孙焕泉, 王加滢. 地下构造裂缝分布规律及其预测[J]. 大庆石油学院学报, 2000, 24(3):83-85.
	SUN Huanquan, WANG Jiaying. Distribution law of underground structural fissures and their forecasting[J]. Journal of Daqing Petroleum Institute, 2000, 24(3):83-85.
[2]	苏培东, 秦启荣, 黄润秋. 储层裂缝预测研究现状与展望[J]. 西南石油学院学报, 2005, 27(5):14-17.
	SU Peidong, QIN Qirong, HUANG Runqiu. Prospects and status for the study on reservoir fractures[J]. Journal of Southwest Petroleum Institute, 2005, 27(5):14-17.
[3]	廖海博, 刘红岐, 崔云江, 等. 基于常规测井的变质岩裂缝识别方法研究[J]. 海洋地质与第四纪地质, 2023, 43(4):189-198.
	LIAO Haibo, LIU Hongqi, CUI Yunjiang, et al. Research on fractures identification method of metamorphic rock based on conventional logging[J]. Marine Geology & Quaternary Geology, 2023, 43(4):189-198.
[4]	谢强, 李皋, 彭红利, 等. 川西彭州地区雷四段储集层构造裂缝特征及定量预测[J]. 新疆石油地质, 2022, 43(5):519-525.
	XIE Qiang, LI Gao, PENG Hongli, et al. Characteristics and quantitative prediction of structural fractures in Lei4 member reservoir in Pengzhou area,western Sichuan basin[J]. Xinjiang Petroleum Geology, 2022, 43(5):519-525.
[5]	王志伟, 张凯, 武群虎, 等. 基于井震裂缝识别敏感性参数模型的碳酸盐岩储层裂缝预测方法[J]. 煤田地质与勘探, 2023, 51(6):163-174.
	WANG Zhiwei, ZHANG Kai, WU Qunhu, et al. A method for predicting fractures in carbonate reservoirs based on fracture identification-sensitive log-seismic parameter model[J]. Coal Geology & Exploration, 2023, 51(6):163-174.
[6]	朱兰, 李素华, 余洋, 等. 川西新场地区中三叠统雷口坡组顶部风化壳裂缝分布特征及预测[J]. 石油实验地质, 2022, 44(3):448-455.
	ZHU Lan, LI Suhua, YU Yang, et al. Fracture distribution and prediction of weathering crust reservoirs on the top of Leikoupo formation,Xinchang area,western Sichuan basin[J]. Petroleum Geology & Experiment, 2022, 44(3):448-455.
[7]	陈可洋, 周辉, 杨微, 等. 散射波波场在裂缝性储集层识别中的应用[J]. 新疆石油地质, 2024, 45(1):109-117.
	CHEN Keyang, ZHOU Hui, YANG Wei, et al. Application of scattered wave field in identifying fractured reservoirs[J]. Xinjiang Petroleum Geology, 2024, 45(1):109-117.
[8]	廖新武, 谢润成, 周文, 等. 古地貌对渤海湾盆地B区块太古宇暴露型潜山变质岩风化带储层裂缝发育的影响[J]. 石油与天然气地质, 2023, 44(2):406-417.
	LIAO Xinwu, XIE Runcheng, ZHOU Wen, et al. The effects of paleogeomorphology on the development of fractures in reservoirs of weathering metamorphic zone in an exposed Archean burial hill,Block B,Bohai Bay basin[J]. Oil & Gas Geology, 2023, 44(2):406-417.
[9]	郭子南. 兴隆台潜山基岩油藏储层分类评价[J]. 特种油气藏, 2022, 29(2):64-71. doi: 10.3969/j.issn.1006-6535.2022.02.009
	GUO Zinan. Classification and evaluation of bedrock reservoirs in Xinglongtai buried hill[J]. Special Oil & Gas Reservoirs, 2022, 29(2):64-71.
[10]	李军, 刘丽峰, 赵玉合, 等. 古潜山油气藏研究综述[J]. 地球物理学进展, 2006, 21(3):879-887.
	LI Jun, LIU Lifeng, ZHAO Yuhe, et al. A review of study on ancient buried hill reservoir[J]. Progress in Geophysics, 2006, 21(3):879-887.
[11]	杜建芬, 李家燕, 郭平, 等. 变质岩裂缝性潜山油藏注气提高采收率研究[J]. 石油实验地质, 2010, 32(5):509-512.
	DU Jianfen, LI Jiayan, GUO Ping, et al. Study of EOR by gas injection in buried hill reservoirs consisting of fractured metamorphic rocks[J]. Petroleum Geology & Experiment, 2010, 32(5):509-512.
[12]	陈雷, 蒋旭东, 李彦强. 王庄地区郑4潜山油藏裂缝性储层描述[J]. 承德石油高等专科学校学报, 2010, 12(4):5-9.
	CHEN Lei, JIANG Xudong, LI Yanqiang. Fractured reservoir description of Zheng4 buried hill reservoir in Wangzhuang area[J]. Journal of Chengde Petroleum College, 2010, 12(4):5-9.
[13]	李秀芹, 侯欣欣, 刘中奇. 王庄油田片麻岩储集层测井识别及评价方法[J]. 石油天然气学报, 2012, 34(11):83-86.
	LI Xiuqin, HOU Xinxin, LIU Zhongqi. Log recognition and evaluation method of gneissose reservoir in Wangzhuang oilfield[J]. Journal of Oil and Gas Technology, 2012, 34(11):83-86.
[14]	付建民, 何瑞兵, 谭伟雄, 等. 太古界潜山花岗片麻岩储层温度敏感性实验研究[J]. 油气地质与采收率, 2023, 30(3):42-48.
	FU Jianmin, HE Ruibing, TAN Weixiong, et al. Experimental study on temperature sensitivity of granite gneiss reservoirs in Archean buried hills[J]. Petroleum Geology and Recovery Efficiency, 2023, 30(3):42-48.
[15]	周新桂, 操成杰, 袁嘉音. 储层构造裂缝定量预测与油气渗流规律研究现状和进展[J]. 地球科学进展, 2003, 18(3):398-404. doi: 10.11867/j.issn.1001-8166.2003.03.0398
	ZHOU Xingui, CAO Chengjie, YUAN Jiayin. The research actuality and major progresses on the quantitative forecast of reservoir fractures and hydrocarbon migration law[J]. Advances in Earth Science, 2003, 18(3):398-404. doi: 10.11867/j.issn.1001-8166.2003.03.0398
[16]	操应长, 姜在兴, 邱隆伟. 山东惠民凹陷商741块火成岩油藏储集空间类型及形成机理探讨[J]. 岩石学报, 1999, 15(1):129-136.
	CAO Yingchang, JIANG Zaixing, QIU Longwei. Study on the type and origin of the reservoir space of igneous oil reservoir in Shang 741 block,Huimin depression,Shandong[J]. Acta Petrologica Sinica, 1999, 15(1):129-136.
[17]	祝晓林, 刘宗宾, 葛丽珍, 等. 渤海油田裂缝性潜山油藏储层分类及剩余油分布规律[J]. 断块油气田, 2022, 29(4):527-531.
	ZHU Xiaolin, LIU Zongbin, GE Lizhen, et al. Reservoir classification and distribution law of remaining oil in fractured buried hill reservoirs of Bohai oilfield[J]. Fault-Block Oil & Gas Field, 2022, 29(4):527-531.
[18]	侯明才, 何小胡, 金秋月, 等. 琼东南盆地中生代潜山成储主控因素及分布规律[J]. 石油与天然气地质, 2023, 44(3):637-650.
	HOU Mingcai, HE Xiaohu, JIN Qiuyue, et al. Factors controlling the formation and distribution of Mesozoic buried hill reservoirs in the Qiongdongnan basin[J]. Oil & Gas Geology, 2023, 44(3):637-650.
[19]	韦豪, 王元君, 周怀来, 等. 基于稀疏贝叶斯的分频蚂蚁追踪技术在裂缝刻画中的应用[J]. 物探化探计算技术, 2023, 45(2):192-201.
	WEI Hao, WANG Yuanjun, ZHOU Huailai, et al. Application of frequency division ant tracking technology based on sparse Bayesian in fracture characterization[J]. Computing Techniques for Geophysical and Geochemical Exploration, 2023, 45(2):192-201.

地层段	深度/ m	样品数/ 个	总孔隙度/%
地层段	深度/ m	样品数/ 个	最大值	最小值	平均值
1段、2段	1 533—1 605	46	15.5	0.3	4.49
3段	1 605—1 632	26	9.0	0.2	2.97
4段	1 632—1 700	6	11.0	1.6	3.45
