碳酸盐岩缝洞储集体分尺度量化表征

doi:10.7657/XJPG20210216

摘要/Abstract

摘要：

塔里木盆地北部奥陶系碳酸盐岩缝洞储集体在地震剖面上表现为“串珠状”强反射或杂乱反射。通过设计不同缝洞模型进行正演模拟,将地震正演响应特征与缝洞模型中的缝洞高度、外部形态等特征进行对比分析,结合地震分辨率理论公式计算结果,对缝洞分尺度量化表征：高度大于50 m的缝洞,可进行外部形态的刻画,开展定量刻画和体积计算,可靠程度较高;高度为10~50 m的缝洞,可进行缝洞体积、中心点以及洞顶的识别,能进行半定量识别和较准确的体积计算,可靠程度一般;高度小于10 m的缝洞,仅能在平面和剖面上定性预测其分布范围,体积计算的可靠程度低。通过把缝洞划分成不同尺度,并利用不同地震属性分别进行识别刻画和量化计算,有效减少了缝洞量化描述的多解性,为目标评价和井位优选提供了依据。

关键词: 塔里木盆地, 奥陶系, 碳酸盐岩, 缝洞储集体, 地震响应, 正演模拟, 量化表征

Abstract:

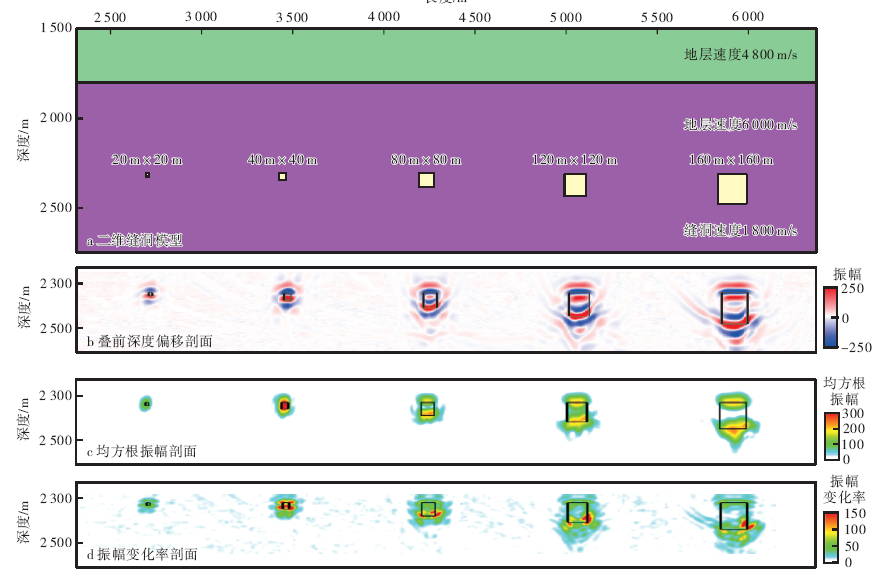

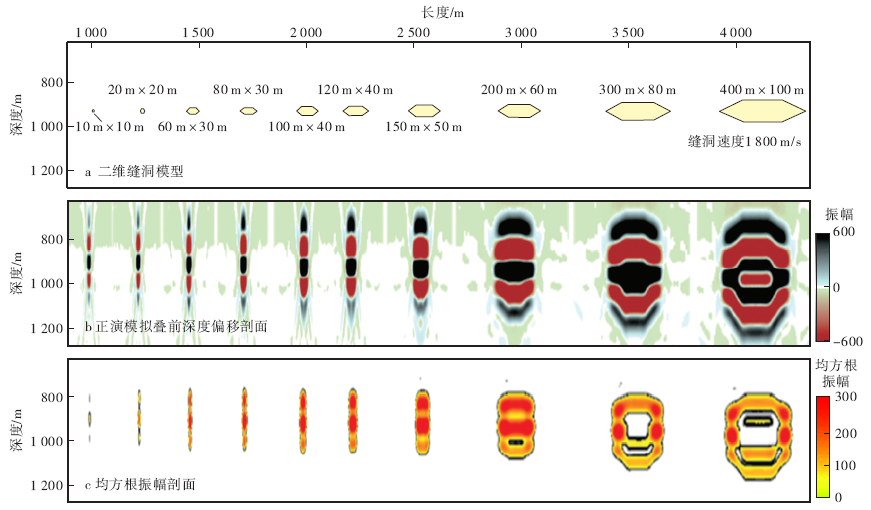

The Ordovician carbonate reservoirs in the north of Tarim basin are fractured and vuggy. On seismic sections, the seismic responses of the fractured-vuggy reservoirs are mostly “bead-like” strong reflections and chaotic reflections. We designed different fracture-vug models, compared the seismic response characteristics with the heights and external shapes of the fractures and vugs in the fracture-vug models, and quantitatively characterized the fractures and vugs on various scales based on the results calculated from the seismic resolution theory formula. The results are that: the external shape of the fractures and vugs more than 50 m high can be quantitatively described, and their volumes can be calculated with high reliability; the volume, center points and roofs of fractures and vugs of 10-50 m high can be identified, semi-quantitative identification and accurate calculation of their volumes can be carried out with average reliability; and the fractures and vugs less than 10 m high can only be qualitatively predicted on their lateral and vertical distribution, and the reliability of volume calculation is low. After characterization and quantitative calculation using seismic attributes on various scales, the multiplicity of quantitative characterization of fractures and vugs is effectively reduced. The results provide basic data for target evaluation and well location optimization.

Key words: Tarim basin, Ordovician, carbonate rock, fractured-vuggy reservoir, seismic response, forward modeling, quantitative characterization

中图分类号:

TE112.221

邓光校, 胡文革, 王震. 碳酸盐岩缝洞储集体分尺度量化表征[J]. 新疆石油地质, 2021, 42(2): 232-237.

DENG Guangxiao, HU Wenge, WANG Zhen. Quantitative Characterization of Fractured-Vuggy Carbonate Reservoirs[J]. Xinjiang Petroleum Geology, 2021, 42(2): 232-237.

图/表 8

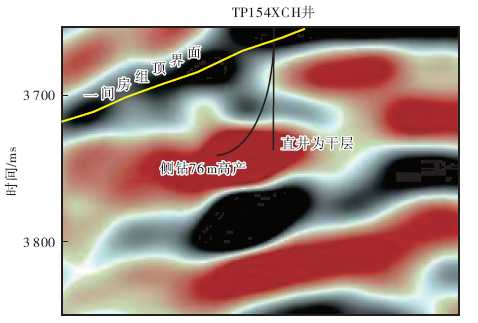

图1

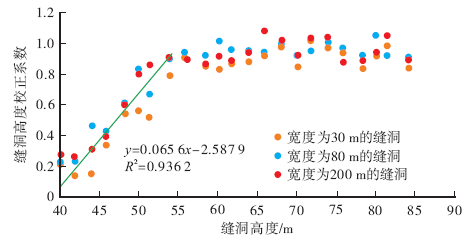

图2

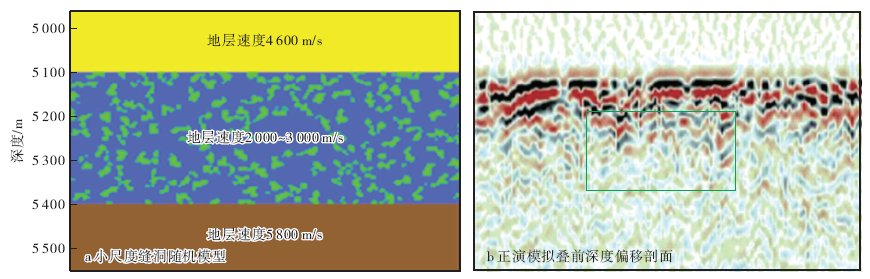

图3

图4

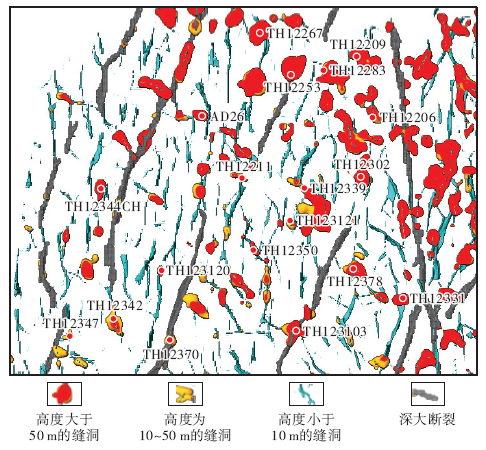

图5

图6

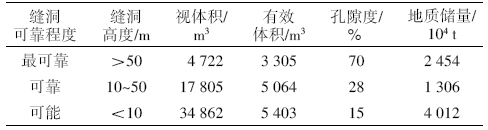

表1
