南襄盆地泌阳凹陷和南阳凹陷油气勘探历程与启示

doi:10.7657/XJPG20210313

摘要/Abstract

摘要：

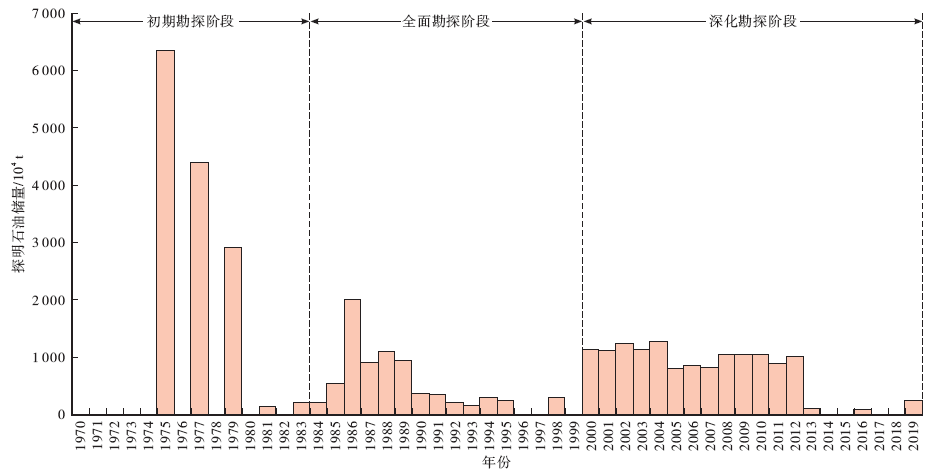

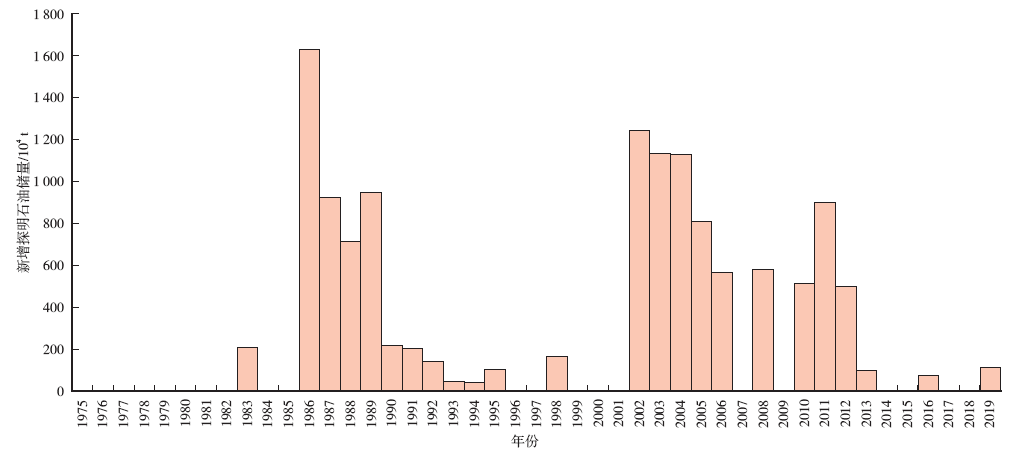

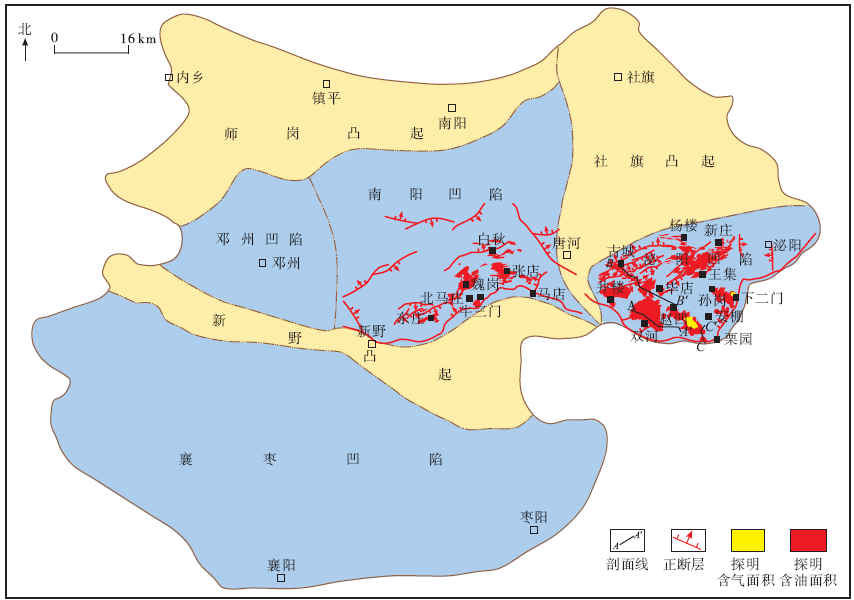

南襄盆地共分为3个凸起和4个凹陷。经过40多年的勘探,在泌阳凹陷和南阳凹陷获得油气发现并取得丰硕的成果。重点依据泌阳凹陷和南阳凹陷勘探史上形成的3次储量增长高峰,将盆地勘探历程分为初期勘探（1970—1983年）、全面勘探（1984—1999年）及深化勘探（2000年至现今）3个阶段。对每个阶段的重大成果进行梳理,发现泌阳凹陷油气富集规律更为明显、油藏类型更具代表性,从而将泌阳凹陷划分为4个重要的油气富集区带：泌阳凹陷双河鼻状构造、北部斜坡带、南部陡坡带及环洼带。通过地质特征和成藏条件综合分析,总结出断陷湖盆大型砂岩上倾尖灭油藏、北部斜坡带复杂断块油藏、南部陡坡带小型砂砾岩油藏、环洼带断层-岩性油藏的勘探思路、技术和方法,以期为今后的油气勘探带来一些启示。

关键词: 南襄盆地, 泌阳凹陷, 南阳凹陷, 砂岩上倾尖灭油藏, 断块油藏, 砂砾岩油藏, 勘探历程, 勘探启示

Abstract:

The Nanxiang basin is composed of three swells and four sags. Over more than 40 years of exploration, oil and gas have been discovered in the Biyang sag and Nanyang sag, and fruitful achievements have been obtained. Mainly based on the three peaks of reserves increase in the process of exploring the Biyang sag and the Nanyang sag, this paper divides the basin exploration process into three stages: initial exploration (1970-1983), comprehensive exploration (1984-1999) and detailed exploration (since 2000). After analyzing the major achievements of each stage, it is found that oil and gas enrichment laws in the Biyang sag are more clear and the reservoir types are more representative than those in the Nanyang sag. The Biyang sag can be divided into four important oil and gas enrichment zones: Shuanghe nose-like structure, northern slope zone, southern steep slope zone and around-subsag zone. According to comprehensive analysis of geological characteristics and reservoir-forming conditions, specific exploration ideas, techniques and methods are summarized, including large updip pinch-out sandstone reservoirs in the rifted lacustrine basin, complex fault-block reservoirs in the northern slope zone, small glutenite reservoirs in the southern steep slope zone, and fault-lithologic reservoirs in the around-subsag zone. These results may enlighten future oil and gas exploration.

Key words: Naxiang basin, Biyang sag, Nanyang sag, updip pinch-out sandstone reservoir, fault-block reservoir, sandy conglomerate reservoir, exploration history, exploration enlightenment

中图分类号:

TE132

袁玉哲, 罗家群, 朱颜, 刘桂兰, 李磊, 余梦丽. 南襄盆地泌阳凹陷和南阳凹陷油气勘探历程与启示[J]. 新疆石油地质, 2021, 42(3): 364-373.

YUAN Yuzhe, LUO Jiaqun, ZHU Yan, LIU Guilan, LI Lei, YU Mengli. Petroleum Exploration History and Enlightenment of Biyang Sag and Nanyang Sag in Nanxiang Basin[J]. Xinjiang Petroleum Geology, 2021, 42(3): 364-373.

图/表 8

图1

图2

图3

图4

图5

图6

图7

图8

参考文献 24
