鄂尔多斯盆地中生界石油勘探实践及主要认识

doi:10.7657/XJPG20220301

摘要/Abstract

摘要：

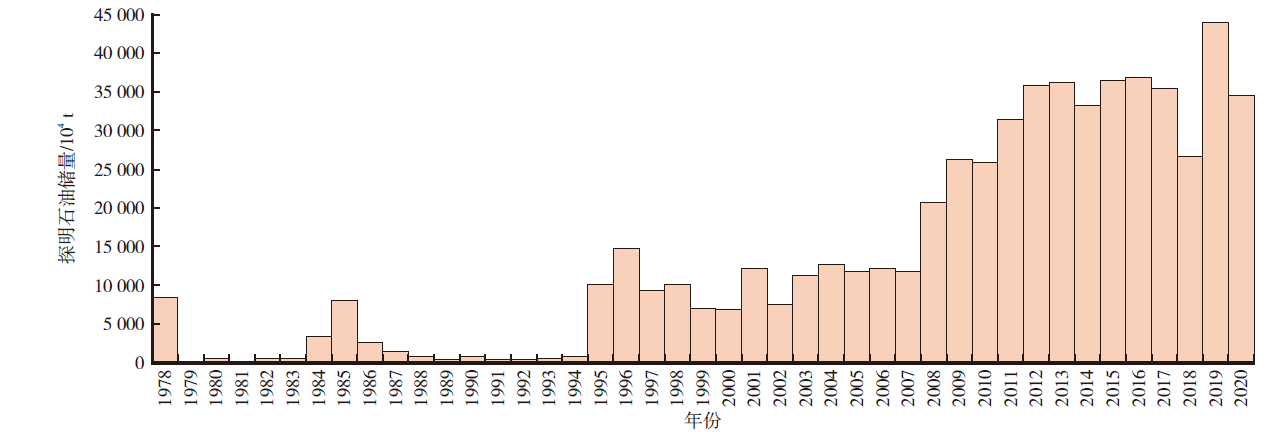

鄂尔多斯盆地是中国第二大沉积盆地,油气资源丰富,勘探前景广阔。其中,三叠系延长组发育典型的低渗透—致密油藏,勘探难度大。50年来,持续深化鄂尔多斯盆地中生界油藏地质研究,提出了侏罗系油藏群成藏理论、内陆坳陷湖盆大型岩性油藏成藏理论和陆相页岩油成藏理论,实现3次战略转移,发现4个储量超过10×10⁸ t的常规油气区和1个储量达20×10⁸ t的页岩油接替区,探明石油储量连续10 年年均增长超3×10⁸ t,成为中国增储上产速度最快的油区,原油年产量占中国的12.5%,可供其他同类型盆地的油气勘探借鉴。

关键词: 鄂尔多斯盆地, 中生界, 三叠系, 侏罗系, 湖盆, 勘探启示, 勘探前景

Abstract:

The Ordos basin is the second largest sedimentary basin in China with abundant oil and gas resources and broad exploration prospects. Typical low-permeability-tight oil reservoirs are develpoed in the Triassic Yanchang formation in the basin,which are difficult to explore. Through continously geological researches on the Mesozoic oil reservoirs in the Ordos basin over the past 50 years,some theories about hydrocarbon accumulation in Jurassic reservoir groups,in large-scale lithologic reservoirs in inland depression lake basins and in continental shales have been formed. By virtue of three strategic shifts,four conventional hydrocarbon provinces with reserves exceeding 10×10⁸ t and a successive zone with shale oil reserves of 20×10⁸ t have been discovered. The proven oil reserves have increased by an average of over 3×10⁸ t per year for 10 consecutive years. Thus,Changqing oilfield in Ordos basin has become an oil and gas province with the fastest increase in reserves and production in China and contributed 12.5% of China's annual oil production,which provides a reference for the petroleum exploration in other similar basins.

Key words: Ordos basin, Mesozoic, Triassic, Jurassic, lake basin, exploration enlightenment, exploration prospect

中图分类号:

TE132

罗安湘, 喻建, 刘显阳, 焦创赟, 韩天佑, 楚美娟. 鄂尔多斯盆地中生界石油勘探实践及主要认识[J]. 新疆石油地质, 2022, 43(3): 253-260.

LUO Anxiang, YU Jian, LIU Xianyang, JIAO Chuangyun, HAN Tianyou, CHU Meijuan. Practices and Cognitions of Petroleum Exploration in Mesozoic,Ordos Basin[J]. Xinjiang Petroleum Geology, 2022, 43(3): 253-260.

图/表 10

图1

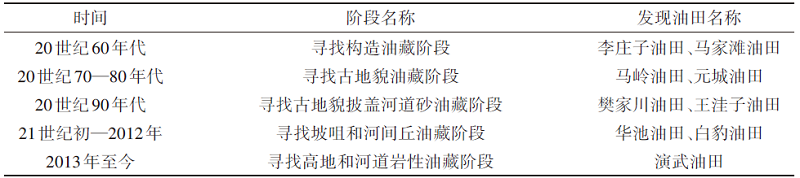

表1

表2

图2

表3

表4

图3

图4

图5

图6

参考文献 30

[1]	胡春桥, 任来义, 贺永红, 等. 鄂尔多斯盆地延长探区油气勘探历程与启示[J]. 新疆石油地质, 2021,42(3):312-318.
	HU Chunqiao, REN Laiyi, HE Yonghong, et al. Petroleum exploration history and enlightenment of Yanchang exploration area in Ordos basin[J]. Xinjiang Petroleum Geology, 2021,42(3):312-318.
[2]	张才利, 刘新社, 杨亚娟, 等. 鄂尔多斯盆地长庆油田油气勘探历程与启示[J]. 新疆石油地质, 2021,42(3):253-263.
	ZHANG Caili, LIU Xinshe, YANG Yajuan, et al. Petroleum exploration history and enlightenment of Changqing oilfield in Ordos basin[J]. Xinjiang Petroleum Geology, 2021,42(3):253-263.
[3]	郭正权, 张立荣, 楚美娟, 等. 鄂尔多斯盆地南部前侏罗纪古地貌对延安组下部油藏的控制作用[J]. 古地理学报, 2008,10(1):63-71.
	GUO Zhengquan, ZHANG Lirong, CHU Meijuan, et al. Pre-Jurassic palaeogeomorphic control on the hydrocarbon accumulation in the lower Yan'an formation in southern Ordos basin[J]. Journal of Palaeogeography, 2008,10(1):63-71.
[4]	朱静, 李文厚, 韩永林, 等. 陇东地区前侏罗纪古地貌及油藏成藏规律研究[J]. 沉积学报, 2010,28(6):1 229-1 237.
	ZHU Jing, LI Wenhou, HAN Yonglin, et al. Research on palaeogeomorphic features of pre-Jurassic and accumulation regularity of oil reservoir in the area of eastern Gansu,Ordos basin[J]. Acta Sedimentologica Sinica, 2010,28 (6):1 229-1 237.
[5]	胡朝元. 生油区控制油气田分布:中国东部陆相盆地进行区域勘探的有效理论[J]. 石油学报, 1982,3(2):9-13.
	HU Chaoyuan. Controlling the distribution of oil and gas fields in oil-producing areas:an effective theory for regional exploration in the continental basin in eastern China[J]. Acta Petrolei Sinica, 1982,3 (2):9-13.
[6]	袁选俊, 谯汉生. 渤海湾盆地富油气凹陷隐蔽油气藏勘探[J]. 石油与天然气地质, 2002,23(2):130-133.
	YUAN Xuanjun, QIAO Hansheng. Exploration of subtle reservoir in prolific depression of Bohai Bay basin[J]. Oil & Gas Geology, 2002,23(2):130-133.
[7]	赵文智, 邹才能, 汪泽成, 等. 富油气凹陷“满凹含油”论:内涵与意义[J]. 石油勘探与开发, 2004,31(2):5-13.
	ZHAO Wenzhi, ZOU Caineng, WANG Zecheng, et al. The intension and signification of “Sag-Wide Oil-Bearing Theory” in the hydrocarbon-rich depression with terrestrial origin[J]. Petroleum Exploration and Development, 2004,31(2):5-13.
[8]	邓秀芹, 罗安湘, 张忠义, 等. 秦岭造山带与鄂尔多斯盆地印支期构造事件年代学对比[J]. 沉积学报, 2013,31(6):939-953.
	DENG Xiuqin, LUO Anxiang, ZHANG Zhongyi, et al. Geochronological comparison on Indosinian tectonic events between Qinling orogeny and Ordos basin[J]. Acta Sedimentologica Sinica, 2013,31(6):939-953.
[9]	邹才能, 赵政璋, 杨华, 等. 陆相湖盆深水砂质碎屑流成因机制与分布特征:以鄂尔多斯盆地为例[J]. 沉积学报, 2009,27(6):1 065-1 075.
	ZOU Caineng, ZHAO Zhengzhang, YANG Hua, et al. Genetic mechanism and distribution of sandy debris flows in terrestrial lacustrine basin[J]. Acta Sedimentologica Sinica, 2009,27(6):1 065-1 075.
[10]	杨华, 牛小兵, 罗顺社, 等. 鄂尔多斯盆地陇东地区长7段致密砂体重力流沉积模拟实验研究[J]. 地学前缘(中国地质大学(北京);北京大学), 2015,22(3):322-332.
	YANG Hua, NIU Xiaobing, LUO Shunshe, et al. Research of simulated experiment on gravity flow deposits of tight sand bodies of Chang 7 formation in Longdong area,Ordos basin[J]. Earth Science Frontiers(China University of Geosciences(Beijing);Peking University), 2015,22(3):322-332.
[11]	付金华, 李士祥, 徐黎明, 等. 鄂尔多斯盆地三叠系延长组长7段古沉积环境恢复及意义[J]. 石油勘探与开发, 2018,45(6):936-946.
	FU Jinhua, LI Shixiang, XU Liming, et al. Paleo-sedimentary environmental restoration and its significance of Chang 7 member of Triassic Yanchang formation in Ordos basin,NW China[J]. Petroleum Exploration and Development, 2018,45(6):936-946.
[12]	张文正, 杨华, 李剑峰, 等. 论鄂尔多斯盆地长7段优质油源岩在低渗透油气成藏富集中的主导作用:强生排烃特征及机理分析[J]. 石油勘探与开发, 2006,33(3):289-293.
	ZHANG Wenzheng, YANG Hua, LI Jianfeng, et al. Leading effect of high-class source rock of Chang 7 in Ordos basin on enrichment of low permeability oil-gas accumulation:hydrocarbon generation and expulsion mechanism[J]. Petroleum Exploration and Development, 2006,33(3):289-293.
[13]	杨华, 付金华, 喻建. 陕北地区大型三角洲油藏富集规律及勘探技术应用[J]. 石油学报, 2003,24(3):6-10.
	YANG Hua, FU Jinhua, YU Jian. Oil reservoir enrichment patterns of large delta systems and application of exploration techniques in Shanbei area[J]. Acta Petrolei Sinica, 2003,24 (3):6-10.
[14]	朱国华. 陕北浊沸石次生孔隙砂体的形成与油气关系[J]. 石油学报, 1985,6(1):1-8.
	ZHU Guohua. Formation of lomonitic sand bodies with secondary porosity and their relationship with hydrocarbons[J]. Acta Petrolei Sinica, 1985,6(1):1-8.
[15]	杨晓萍, 裘怿楠. 鄂尔多斯盆地上三叠统延长组浊沸石的形成机理、分布规律与油气关系[J]. 沉积学报, 2002,20(4):628-632.
	YANG Xiaoping, QIU Yinan. Formation process and distribution of laumontite in Yanchang formation(Upper Triassic)[J]. Acta Sedimentologica Sinica, 2002,20(4):628-632.
[16]	黄思静, 刘洁, 沈立成, 等. 碎屑岩成岩过程中浊沸石形成条件的热力学解释[J]. 地质论评, 2001,47(3):301-308.
	HUANG Sijing, LIU Jie, SHEN Licheng, et al. Thermodynamic interpretation for the conditions of the formation of laumonite related to clastic diagenesis[J]. Geological Review, 2001,47(3):301-308.
[17]	张立飞. 陕北三叠系延长统浊沸石的成因及形成条件的理论计算[J]. 岩石学报, 1992,8(2):145-152.
	ZHANG Lifei. Origin of laumontite and condition for its formation in Trassic Yanchang series,north Shaanxi[J]. Acta Petrologica Sinica, 1992,8(2):145-152.
[18]	付金华, 罗安湘, 喻建, 等. 西峰油田成藏地质特征及勘探方向[J]. 石油学报, 2004,25(2):25-29
	FU Jinhua, LUO Anxiang, YU Jian, et al. Geological features of reservoir formation and exploration strategy of Xifeng oilfield[J]. Acta Petrolei Sinica, 2004,25 (2):25-29.
[19]	陈建平, 孙永革, 钟宁宁, 等. 地质条件下湖相烃源岩生排烃效率与模式[J]. 地质学报, 2014,88(11):2 005-2 032.
	CHEN Jianping, SUN Yongge, ZHONG Ningning, et al. The efficiency and model of petroleum expulsion from the lacustrine source rocks within geological frame[J]. Acta Geologica Sinica, 2014,88 (11):2 005-2 032. doi: 10.1111/1755-6724.12265_2
[20]	杨华, 梁晓伟, 牛小兵, 等. 陆相致密油形成地质条件及富集主控因素:以鄂尔多斯盆地三叠系延长组7段为例[J]. 石油勘探与开发, 2017,44(1):12-20.
	YANG hua, LIANG Xiaowei, NIU Xiaobing, et al. Geological conditions for continental tight oil formation and the main controlling factors for the enrichment:a case of Chang 7 member,Triassic Yanchang formation,Ordos basin,NW China[J]. Petroleum Exploration and Development, 2017,44(1):12-20.
[21]	杨华, 李士祥, 刘显阳. 鄂尔多斯盆地致密油、页岩油特征及资源潜力[J]. 石油学报, 2013,34(1):1-11.
	YANG Hua, LI Shixiang, LIU Xianyang. Characteristics and resource prospects of tight oil and shale oil in Ordos basin[J]. Acta Petrolei Sinica, 2013,34(1):1-11.
[22]	付金华, 喻建, 徐黎明, 等. 鄂尔多斯盆地致密油勘探开发新进展及规模富集可开发主控因素[J]. 中国石油勘探, 2015,20(5):9-19.
	FU Jinhua, YU Jian, XU Liming, et al. New progress in exploration and development of tight oil in Ordos basin and main controlling factors of large-scale enrichment and exploitable capacity[J]. China Petroleum Exploration, 2015,20(5):9-19.
[23]	邹才能, 陶士振, 袁选俊, 等. “连续型”油气藏及其在全球的重要性:成藏、分布与评价[J]. 石油勘探与开发, 2009,36(6):669-682.
	ZOU Caineng, TAO Shizhen, YUAN Xuanjun, et al. Global importance of “continuous” petroleum reservoirs:accumulation,distribution and evaluation[J]. Petroleum Exploration and Development, 2009,36(6):669-682. doi: 10.1016/S1876-3804(10)60001-8
[24]	付锁堂, 姚泾利, 李士祥, 等. 鄂尔多斯盆地中生界延长组陆相页岩油富集特征与资源潜力[J]. 石油实验地质, 2020,42(5):698-710.
	FU Suotang, YAO Jingli, LI Shixiang, et al. Enrichment characteristics and resource potential of continental shale oil in Mesozoic Yanchang formation,Ordos basin[J]. Petroleum Geology & Experiment, 2020,42(5):698-710.
[25]	邹才能, 朱如凯, 吴松涛, 等. 常规与非常规油气聚集类型、特征、机理及展望:以中国致密油和致密气为例[J]. 石油学报, 2012,33(2):173-187.
	ZOU Caineng, ZHU Rukai, WU Songtao, et al. Types,characteristics,genesis and prospects of conventional and unconventional hydrocarbon accumulations:taking tight oil and tight gas in China as an instance[J]. Acta Petrolei Sinica, 2012,33(2):173-187.
[26]	邹才能, 杨智, 陶士振, 等. 纳米油气与源储共生型油气聚集[J]. 石油勘探与开发, 2012,39(1):13-26.
	ZOU Caineng, YANG Zhi, TAO Shizhen, et al. Nano-hydroncarbon and the accumulation in coexisting source and reservoir[J]. Petroleum Exploration and Development, 2012,39(1):13-26.
[27]	邹才能, 张国生, 杨智, 等. 非常规油气概念、特征、潜力及技术:兼论非常规油气地质学[J]. 石油勘探与开发, 2013,40(4):385-399.
	ZOU Caineng, ZHANG Guosheng, YANG Zhi, et al. Geological concepts,characteristics,resource potential and key techniques of unconventional hydrocarbon:on unconventional petroleum geology[J]. Petroleum Exploration and Development, 2013,40(4):385-399.
[28]	杜金虎, 何海清, 杨涛, 等. 中国致密油勘探进展及面临的挑战[J]. 中国石油勘探, 2014,19(1):1-9.
	DU Jinhu, HE Haiqing, YANG Tao, et al. Progress in China's tight oil exploration and challenges[J]. China Petroleum Exploration, 2014,19(1):1-9.
[29]	贾承造, 郑民, 张永峰. 非常规油气地质学重要理论问题[J]. 石油学报, 2014,35(1):1-10.
	JIA Chengzao, ZHENG Min, ZHANG Yongfeng. Four important theoretical issues of unconventional petroleum geology[J]. Acta Petrolei Sinica, 2014,35(1):1-10.
[30]	邹才能, 陶士振, 白斌, 等. 论非常规油气与常规油气的区别和联系[J]. 中国石油勘探, 2015,20(1):1-16.
	ZOU Caineng, TAO Shizhen, BAI Bin, et al. Differences and relations between unconventional and conventional oil and gas[J]. China Petroleum Exploration, 2015,20(1):1-16.

时间	勘探重点	成藏理论	主要技术类型	总资源量/10⁸ t
20世纪80年代	侏罗系油藏	古地貌成藏理论	解堵性改造	19.06
20世纪90年代	三角洲油藏	曲流河三角洲成藏理论	常规加砂压裂	40.00
21世纪初	大型岩性油藏	辫状河三角洲成藏理论、多层系复合成藏理论	多级加砂、前置酸压裂	85.88
现今	致密油藏、页岩油藏	湖盆中部成藏理论、页岩油成藏理论	水平井体积压裂	169.00
