砾岩油藏弓形井多级水平缝压裂聚驱采收率数值模拟

doi:10.7657/XJPG20220113

摘要/Abstract

摘要：

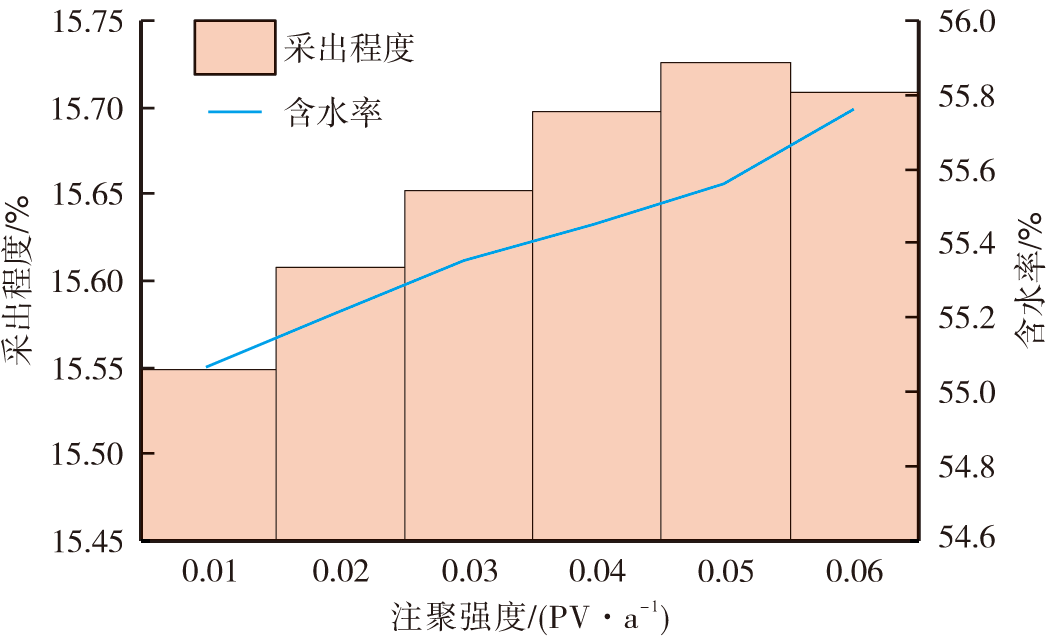

砾岩油藏非均质性较强,注水开发极易形成水流优势通道,注入水波及效率较低,含水率上升快,开发效果较差。为此,针对相变快、储集层连续性较差的浅层砾岩油藏,提出了采用弓形井多级水平缝压裂改造的方式,以提高聚合物驱的采收率。基于克拉玛依油田七东1区西北区块的地质模型,对高含水砾岩油藏进行生产动态历史拟合,在此数值模型的基础之上,选择剩余油较富集区块,建立多级水平缝压裂大位移弓形井和直井注采井网,进行提高采收率的数值模拟研究。结果表明,试验区的最优注聚强度约0.05 PV/a,角注井组的波及系数大于边注井组,弓形井压裂裂缝位于油层上部的注聚驱油效果最佳。弓形井不仅较好地利用了目的区块压裂裂缝多为水平缝的特点,改善了近井筒地带流体的渗流方式,还进一步发挥了聚合物的调剖作用,2种方式相辅相成,可以有效改善驱替前缘推进不均匀的情况,提高了浅层砾岩油藏的采收率。

关键词: 砾岩油藏, 弓形井, 多级压裂, 水平缝, 聚合物驱, 采收率, 数值模拟

Abstract:

Conglomerate reservoirs are generally very heterogeneous, so it is easy to induce large channels during water flooding, resulting in low flooding efficiency, rapid water cut rise and unfavorable development effect. For shallow conglomerate reservoirs which are variable in lithofacies and poor in reservoir continuity, to improve the recovery of polymer flooding, horizontal fractures can be induced through multiple-stage fracturing in arched wells. Based on the geological model of the northwestern block of District Qidong-1 in Karamay oilfield, production history matching was performed for the high water-cut conglomerate reservoirs. Then we set up an injection-production well pattern composed of vertical wells and extended-reach arched wells with horizontal fractures induced by multi-stage fracturing stimulation in the area with enriched remaining oil, and conducted numerical simulation on how to enhance the recovery. The results show that the optimal polymer injecting intensity in the study area is about 0.05 PV/a; the sweep coefficient of an angular injection well pattern is higher than that of an edge injection well pattern; and the polymer flooding effect is the best when horizontal fractures are induced in the upper interval of an arched well. An arched well can make full use of horizontal fractures to improve fluid flow near the wellbore, and it can boost the effect of polymer in profile controlling. The two mechanisms complement each other and can effectively improve the advancement of flooding front, and enhance the recovery of shallow conglomerate reservoirs.

Key words: conglomerate reservoir, arched well, multi-stage fracturing, horizontal fracture, polymer flooding, recovery, numerical simulation

中图分类号:

TE357.46

吴昊镪, 彭小龙, 朱苏阳, 冯宁, 张斯, 叶泽禹. 砾岩油藏弓形井多级水平缝压裂聚驱采收率数值模拟[J]. 新疆石油地质, 2022, 43(1): 85-91.

WU Haoqiang, PENG Xiaolong, ZHU Suyang, FENG Ning, ZHANG Si, YE Zeyu. Numerical Simulation on Polymer Flooding Recovery of Conglomerate Reservoirs: Horizontal Fractures in Arched Wells After Multi-Stage Fraturing[J]. Xinjiang Petroleum Geology, 2022, 43(1): 85-91.

图/表 9

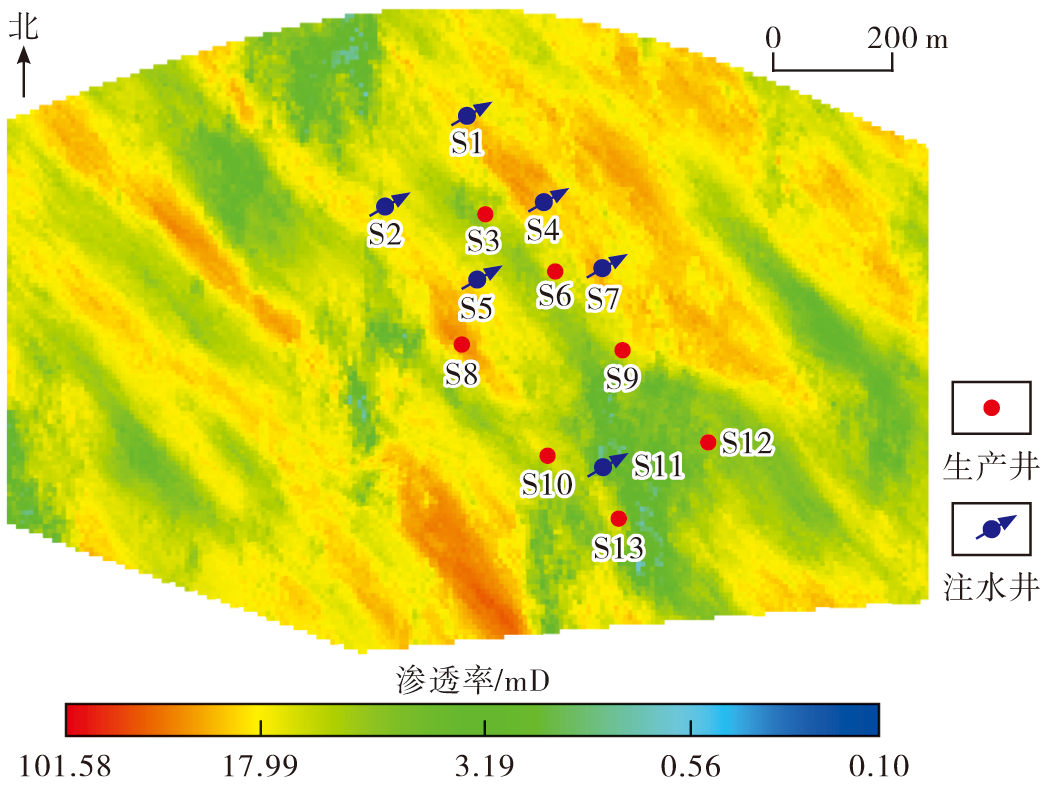

图1

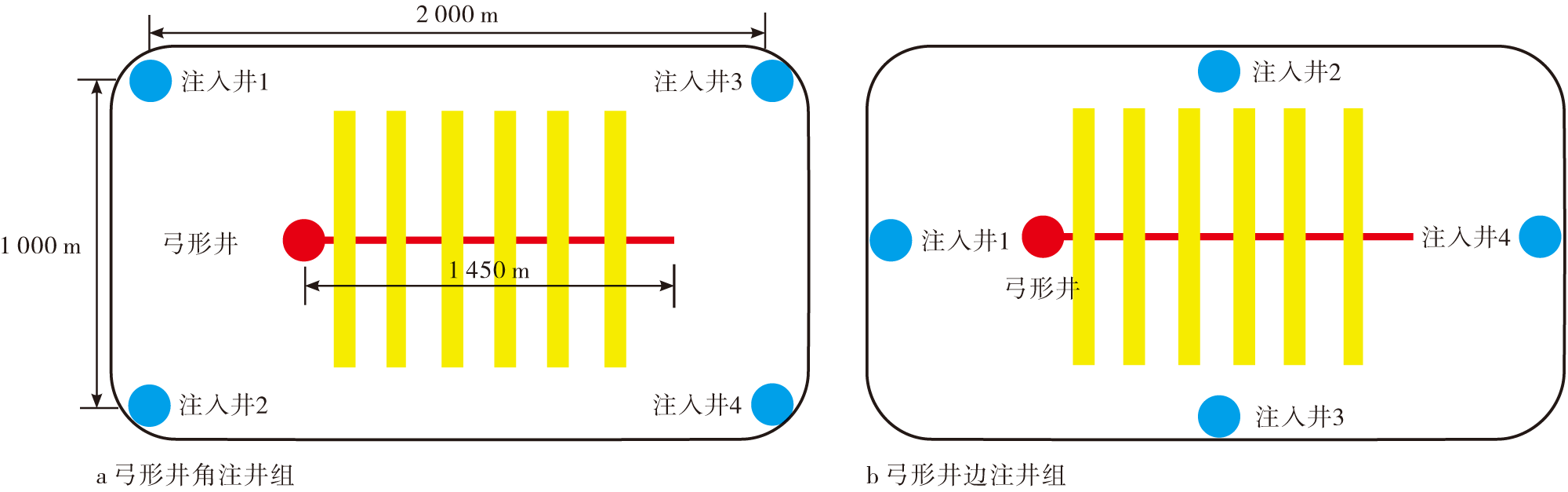

图2

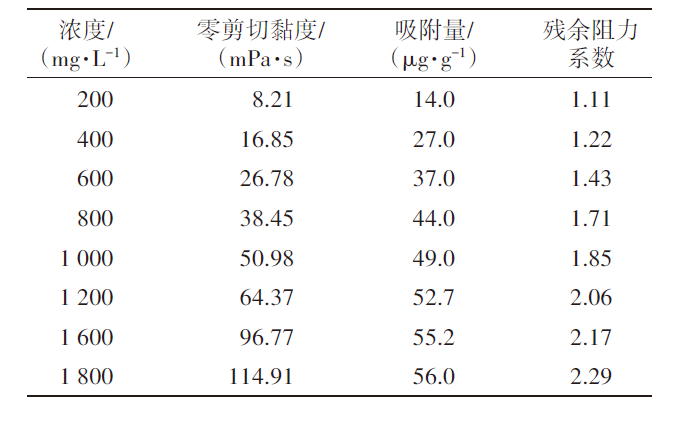

表1

图3

图4

图5

图6

图7

图8

参考文献 25

[1]	LIU Chao, YIN Changhai, LU Jiamin, et al. Pore structure and physical properties of sandy conglomerate reservoirs in the Xujiaweizi depression,northern Songliao basin,China[J]. Journal of Petroleum Science and Engineering, 2020, 192:1-12.
[2]	XI Kelai, CAO Yingchang, HAILE B G, et al. Diagenetic variations with respect to sediment composition and paleo-fluids evolution in conglomerate reservoirs: a case study of the Triassic Baikouquan formation in Mahu sag,Junggar basin,Northwestern China[J]. Journal of Petroleum Science and Engineering, 2021, 197:1-19.
[3]	吕文雅, 苗凤彬, 张本键, 等. 四川盆地剑阁地区须家河组致密砾岩储层裂缝特征及对天然气产能的影响[J]. 石油与天然气地质, 2020, 41(3):484-491.
	LYU Wenya, MIAO Fengbin, ZHANG Benjian, et al. Fracture characteristics and their influence on natural gas production: a case study of the tight conglomerate reservoir in the Upper Triassic Xujiahe formation in Jian’ge area,Sichuan basin[J]. Oil & Gas Geology, 2020, 41(3):484-491.
[4]	王清斌, 牛成民, 刘晓健, 等. 渤中凹陷深层砂砾岩气藏油气充注与储层致密化[J]. 天然气工业, 2019, 39(5):25-33.
	WANG Qingbin, NIU Chengmin, LIU Xiaojian, et al. Hydrocarbon charging and reservoir densification of the deep-seated glutenite gas reservoirs in the Bozhong sag[J]. Natural Gas Industry, 2019, 39(5):25-33.
[5]	李姝, 黄学斌, 肖玉茹, 等. 渤海湾盆地济阳坳陷中深层低渗砂砾岩油藏控制储量升级标准[J]. 石油实验地质, 2021, 43(1):184-192.
	LI Shu, HUANG Xuebin, XIAO Yuru, et al. Controlled reserve upgrade standard for middle-deep low permeability glutenite reservoirs in Jiyang Depression, Bohai Bay basin[J]. Petroleum Geology & Experiment, 2021, 43(1):184-192.
[6]	石善志, 于会永, 孙正丽, 等. 新疆油田七东1区克下组地应力特征及人工裂缝延伸方向[J]. 科学技术与工程, 2015, 15(17):117-120.
	SHI Shanzhi, YU Huiyong, SUN Zhengli, et al. The in-situ stress characteristics and fracture extension direction on Lower Karamay formation of Qidong-1 area in Xinjiang oilfield[J]. Science Technology and Engineering, 2015, 15(17):117-120.
[7]	张翼. 水平井和大位移井压裂后产能预测及应用研究[D]. 成都:西南石油学院, 2003.
	ZHANG Yi. Productivity prediction and application research after facturing of horizontal and large displacement wells[D]. Chengdu:Southwest Petroleum Institute, 2003.
[8]	张宁, 阚亮, 王成胜, 等. 反九点井网不同井型对海上油田聚合物驱油效果影响实验研究[J]. 科学技术与工程, 2015, 15(33):54-58.
	ZHANG Ning, KAN Liang, WANG Chengsheng, et al. The effect of different well types of inverted nine spot pattern on the oil displacement efficiency of polymer flooding in offshore oil field[J]. Science Technology and Engineering, 2015, 15(33):54-58.
[9]	魏攀峰, 郑力会, 纪成, 等. 非均质砾岩油藏绒囊流体辅助聚合物驱效果[J]. 新疆石油地质, 2020, 41(3):307-313.
	WEI Panfeng, ZHENG Lihui, JI Cheng, et al. Fuzzy-ball fluid assisted polymer flooding to enhance oil recovery in heterogeneous conglomerate reservoirs[J]. Xinjiang Petroleum Geology, 2020, 41(3):307-313.
[10]	ZHOU Kang, HOU Jian, LI Xiaoning. The effect of well patterns on surfactant/polymer flooding[J]. International Journal of Energy and Power Engineering, 2016, 5(6):189-195.
[11]	张德富, 吕建荣, 田秘, 等. 砾岩油藏聚合物驱产聚浓度变化规律[J]. 新疆石油地质, 2020, 41(3):326-331.
	ZHANG Defu, LYU Jianrong, TIAN Mi, et al. Variations of produced polymer concentration for polymer flooding in conglomerate reservoirs[J]. Xinjiang Petroleum Geology, 2020, 41(3):326-331.
[12]	陈玉琨, 王延杰, 朱亚婷, 等. 克拉玛依油田七东1区克下组冲积扇储层构型表征[J]. 岩性油气藏, 2015, 27(5):92-97.
	CHEN Yukun, WANG Yanjie, ZHU Yating, et al. Architecture characterization of alluvial fan reservoir of Lower Karamay formation in east District 7(1) of Karamay oilfield[J]. Lithologic Reservoirs, 2015, 27(5):92-97.
[13]	印森林, 陈恭洋, 陈玉琨, 等. 砂砾岩储层孔隙结构模态控制下的剩余油分布:以克拉玛依油田七东1区克下组为例[J]. 岩性油气藏, 2018, 30(5):91-102.
	YIN Senlin, CHEN Gongyang, CHEN Yukun, et al. Control effect of pore structure modality on remaining oil in glutenite reservoir: a case from Lower Karamay formation in Block Qidong 1 of Karamay oilfield[J]. Lithologic Reservoirs, 2008, 30(5):91-102.
[14]	何丹. 克拉玛依七东1区克下组储层微观特征研究[D]. 成都:成都理工大学, 2014.
	HE Dan. Study on the microscopic features of reservoir for area one, east District No.7 reservoir, Karamay oilfield[D]. Chengdu:Chengdu University of Technology, 2014.
[15]	王志远, 张烈辉, 谭龙, 等. 砾岩储集层聚合物驱油机理与控制因素实验研究[J]. 油气藏评价与开发, 2020, 10(3):109-114.
	WANG Zhiyuan, ZHANG Liehui, TAN Long, et al. Study on mechanism and controlling factors of polymer flooding in conglomerate reservoir[J]. Evaluation and Development of Oil and Gas Reservoirs, 2020, 10(3):109-114.
[16]	许长福, 刘红现, 钱根宝, 等. 克拉玛依砾岩储集层微观水驱油机理[J]. 石油勘探与开发, 2011, 38(6):725-732.
	XU Changfu, LIU Hongxian, QIAN Genbao, et al. Microcosmic mechanisms of water-oil displacement in conglomerate reservoirs in Karamay oilfield,NW China[J]. Petroleum Exploration and Development, 2011, 38(6):725-732.
[17]	严侠, 黄朝琴, 姚军, 等. 基于模拟有限差分的嵌入式离散裂缝数学模型[J]. 中国科学:技术科学, 2014, 44(12):1 333-1 342.
	YAN Xia, HUANG Chaoqin, YAO Jun, et al. The embeded discrete fracture model based on mimetic finite difference method[J]. Scientia Sinica: Technologica, 2014, 44(12):1 333-1 342.
[18]	张永飞, 李璐, 铁连军, 等. 延长油田东部长6储层水平缝缝网形成可行性研究[J]. 石化技术, 2020, 27(9):80.
	ZHANG Yongfei, LI Lu, TIE Lianjun, et al. Feasibility study on formation of horizontal seam net in Chang 6 reservoir of eastern Yanchang oilfield[J]. Petrochemical Industry Technology, 2020, 27(9):80.
[19]	刘刚, 侯吉瑞, 邱首鹏, 等. 聚合物分子尺寸与砾岩油藏孔喉匹配关系[J]. 断块油气田, 2014, 21(6):771-774.
	LIU Gang, HOU Jirui, QIU Shoupeng, et al. Matching relationship between polymer molecular size and pore throat of conglomerate reservoir[J]. Fault-Block Oil & Gas Field, 2014, 21(6):771-774.
[20]	姜晓磊, 王荣健, 卢祥国, 等. 聚合物相对分子质量与油藏储层适应性研究[J]. 油田化学, 2014, 31(2):269-273.
	JIANG Xiaolei, WANG Rongjian, LU Xiangguo, et al. Experimental study on the reservoir adaptability of polymer molecular weight[J]. Oilfield Chemistry, 2014, 31(2):269-273.
[21]	张贵玲. 中高含水期油藏井网加密与聚合物驱对比评价研究[D]. 山东青岛:中国石油大学(华东), 2010.
	ZHANG Guiling. The comparative evaluation of well infill and polymer flooding in the high water cut stage reservoir[D]. Qingdao,Shandong:China University of Petroleum (East China), 2010.
[22]	孙哲. 水平井与直井混合井网水平井注聚合理配注量的优化方法[D]. 黑龙江大庆:东北石油大学, 2014.
	SUN Zhe. Optimization method of rational polymer injection allocation rate of horizontal well of horizontal and vertical well mixed pattern[D]. Daqing,Heilongjiang:Northeast Petroleum University, 2014.
[23]	马一方. 多级浓度段塞聚合物驱优化方式研究[D]. 山东青岛:中国石油大学(华东), 2017.
	MA Yifang. Study on optimization method of multi-stage polymer flooding[D]. Qingdao,Shandong:China University of Petroleum (East China), 2017.
[24]	李岩, 郭艳, 王熙, 等. 下二门油田聚合物驱后多段塞组合驱技术[J]. 油田化学, 2020, 37(1):121-127.
	LI Yan, GUO Yan, WANG Xi, et al. Research on multi-slug combination flooding technology after polymer flooding in Xiaermen oilfield[J]. Oilfield Chemistry, 2020, 37(1):121-127.
[25]	关丹, 栾和鑫, 阙庭丽, 等. 砾岩油藏聚合物驱的注入方式优化[J]. 油田化学, 2019, 36(4):688-692.
	GUAN Dan, LUAN Hexin, QUE Tingli, et al. Optimization on injection mode of polymer flooding in conglomerate reservoirs[J]. Oilfield Chemistry, 2019, 36(4):688-692
