苏里格气田强非均质致密气藏水平井产气剖面

doi:10.7657/XJPG20220312

摘要/Abstract

摘要：

为确定苏里格气田水平井分段压裂后各压裂段的产气能力,通过分析水平井产气剖面及其储集层非均质性、水平井渗流特征、多段压裂改造工艺、生产压差等因素影响,认为储集层物性和有效砂体发育程度是影响产气能力的主控因素,其作用大于理想模型中水平井跟部和趾端的渗流优势项作用;生产压差的增大,加剧了强非均质储集层各压裂段产气量的差异;分段压裂改造后,段内裂缝的不均匀分布,导致同一压裂段不同射孔簇的产气能力不同。因此,提出多段压裂水平井的射孔段优选、水平段差异化改造和段内暂堵裂缝均匀扩展的技术对策,以提高致密气藏的开发效果。

关键词: 鄂尔多斯盆地, 伊陕斜坡, 苏里格气田, 致密气藏, 非均质性, 水平井, 多段压裂, 产气剖面

Abstract:

In order to determine the productivity of each fracturing section of a horizontal well after staged fracturing in the Sulige gas field, the production profile of horizontal wells and its influencing factors such as reservoir heterogeneity, flow characteristic, multistage fracturing technique and production pressure difference were analyzed. It is found that physical properties of reservoirs and development degree of effective sand bodies are the main factors controlling gas well productivity, and they have greater effect than the flow dominant term at the heel and toe of the horizontal well in an ideal model. The increase in production pressure difference aggravates the difference in gas production rate among fracturing sections in strongly heterogeneous reservoirs. The uneven distribution of induced fractures leads to different gas productivities of perforation clusters in the same fracturing section. Therefore, for multi-stage fractured horizontal wells, technical countermeasures such as optimization of perforation sections, differential stimulation of horizontal sections, and uniform fracture propagation by temporary plugging were proposed so as to improve the development effect of tight gas reservoirs.

Key words: Ordos basin, Yishaan slope, Sulige gas field, tight gas reservoir, heterogeneity, horizontal well, multi-stage fracturing, gas pro-duction profile

中图分类号:

TE375

范继武, 许珍萍, 刘莉莉, 张娟. 苏里格气田强非均质致密气藏水平井产气剖面[J]. 新疆石油地质, 2022, 43(3): 341-345.

FAN Jiwu, XU Zhenping, LIU Lili, ZHANG Juan. Production Profile of Horizontal Wells in Strongly Heterogeneous Tight Gas Reservoirs in Sulige Gas Field[J]. Xinjiang Petroleum Geology, 2022, 43(3): 341-345.

图/表 7

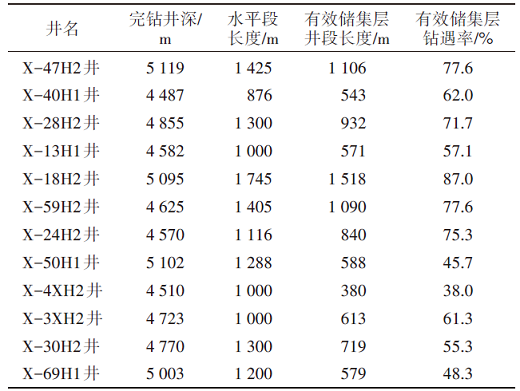

表1

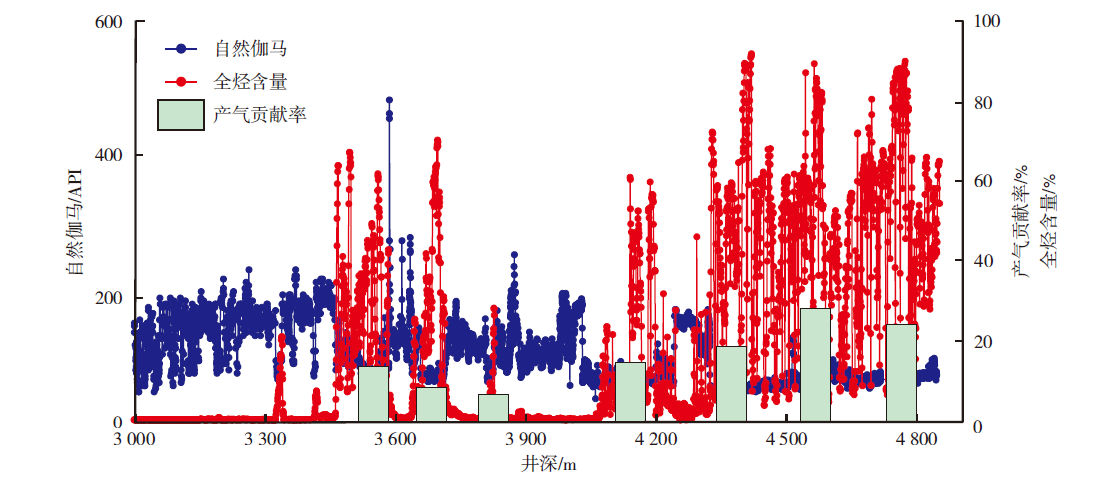

图1

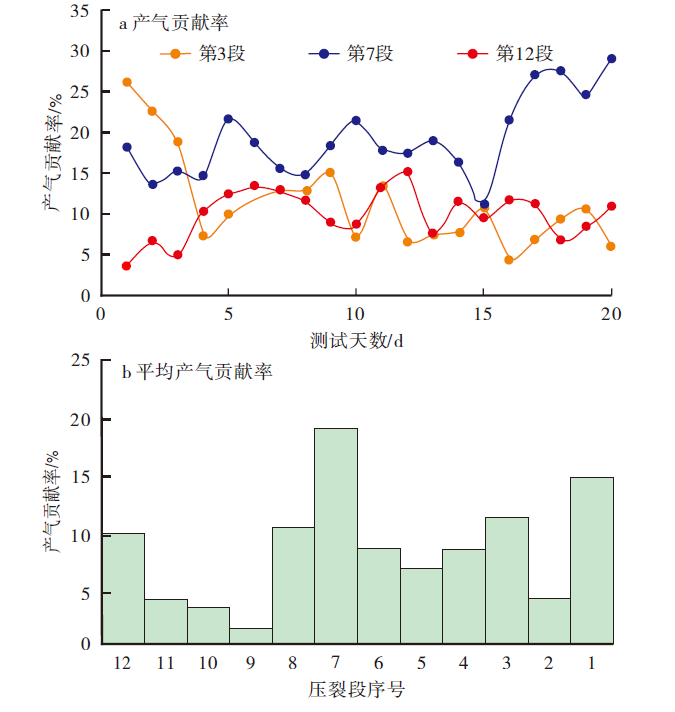

图2

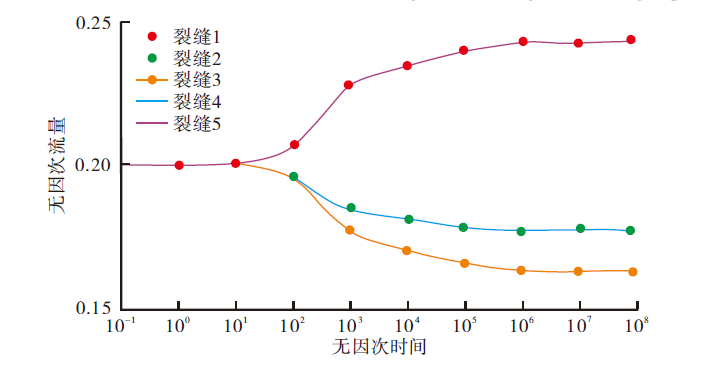

图3

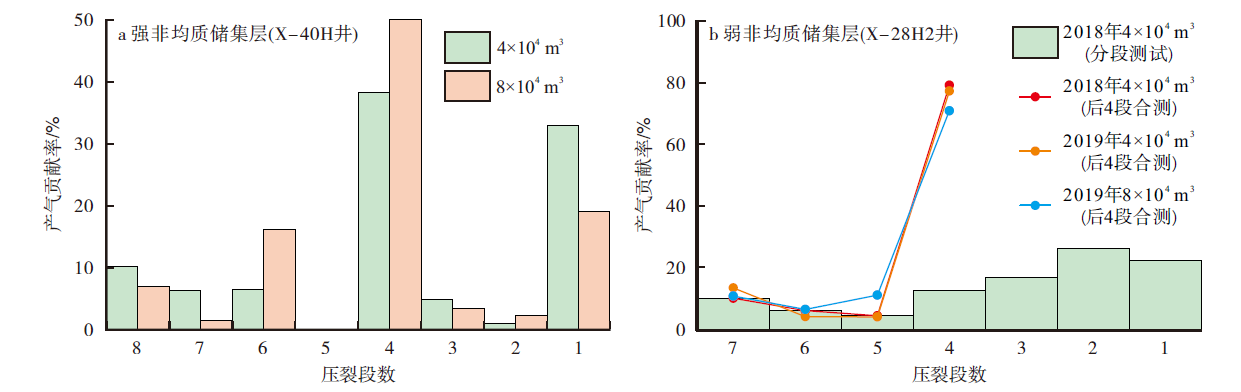

图4

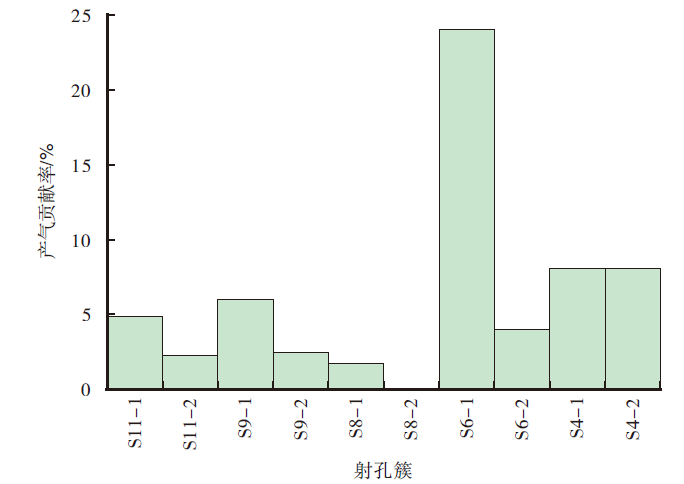

图5

图6

参考文献 19

[1]	张才利, 刘新社, 杨亚娟, 等. 鄂尔多斯盆地长庆油田油气勘探历程与启示[J]. 新疆石油地质, 2021,42(3):253-263.
	ZHANG Caili, LIU Xinshe, YANG Yajuan, et al. Petroleum exploration history and enlightenment of Changqing oilfield in Ordos basin[J]. Xinjiang Petroleum Geology, 2021,42(3):253-263.
[2]	丁卯, 郝军慧, 李宁, 等. 产气剖面测试在苏里格气田的应用[J]. 内蒙古石油化工, 2019,45(12):12-15.
	DING Mao, HAO Junhui, LI Ning, et al. Application of gas production profile test in Sulige gas field[J]. Inner Mongolia Petrochemical Industry, 2019,45(12):12-15.
[3]	柳明, 陈俊杰, 程艳, 等. 苏东南区水平井产气剖面测井技术应用[J]. 天然气技术与经济, 2018,12(5):30-32.
	LIU Ming, CHEN Junjie, CHENG Yan, et al. Application of gas-producing profile logging to horizontal wells,Su southeast area,Sulige gasfield[J]. Natural Gas Technology and Economy, 2018,12(5):30-32.
[4]	秦羽乔, 石文睿, 石元会, 等. 涪陵页岩气田水平井产气剖面测井技术应用试验[J]. 天然气勘探与开发, 2016,39(4):18-22.
	QIN Yuqiao, SHI Wenrui, SHI Yuanhui, et al. Experimental study on producing profile logging for horizontal wells,Fuling shale-gas field[J]. Natural Gas Exploration & Development, 2016,39(4):18-22.
[5]	何红梅, 黄禹忠, 任山, 等. 致密气藏水平井多级多段压裂新技术及应用[J]. 钻采工艺, 2012,35(4):62-65.
	HE Hongmei, HUANG Yuzhong, REN Shan, et al. Multi-stage fracturing technology and its application in horizontal wells of tight gas reservoir[J]. Drilling & Production Technology, 2012,35(4):62-65.
[6]	王建良, 刘睿, 冯连勇, 等. 一种改进的多循环油气田产量预测模型[J]. 新疆石油地质, 2020,41(4):430-434.
	WANG Jianliang, LIU Rui, FENG Lianyong, et al. A modified multi-cycle model for predicting productions of oil and gas fields[J]. Xinjiang Petroleum Geology, 2020,41(4):430-434.
[7]	戴家才, 郭海敏, 张晓岗, 等. 水平井产气剖面测井工艺及资料解释方法初探[J]. 石油天然气学报, 2007,29(4):97-100.
	DAI Jiacai, GUO Haimin, ZHANG Xiaogang, et al. Preliminary study on gas production profile logging technology and data interpretation method used in horizontal wells[J]. Journal of Oil and Gas Technology, 2007,29(4):97-100.
[8]	李亚辉. 基于DTS数据的底水气藏水平井产出剖面解释模型及实现[D]. 成都: 西南石油大学, 2018.
	LI Yahui. Production profile interpretation model and its software development based an DTS data for horizontal well in bottom water gas reservior[D]. Chengdu: Southwest Petroleum University, 2018.
[9]	李月丽, 易小燕, 罗衍灵. 大牛地气田产气剖面特征的认识及思考[J]. 石油地质与工程, 2019,33(3):106-108.
	LI Yueli, YI Xiaoyan, LUO Yanling. Understanding and thinking of gas production profile characteristics in Daniudi gas field[J]. Petroleum Geology and Engineering, 2019,33(3):106-108.
[10]	刘宁, 王英敏, 杨蕾, 等. 气藏水平井水平段产气剖面的影响因素分析[J]. 复杂油气藏, 2010,3(4):55-58.
	LIU Ning, WANG Yingmin, YANG Lei, et al. Factor analysis of gas production profile for horizontal section of horizontal well in gas reservoir[J]. Complex Hydrocarbon Reservoir, 2010,3(4):55-58.
[11]	李勇明, 翟锐, 高瑞民, 等. 水平井多段压裂后压力递减分析[J]. 油气地质与采收率, 2012,19(4):66-70.
	LI Yongming, ZHAI Rui, GAO Ruimin, et al. Study of pressure decline on horizontal well after multi-stage fracturing[J]. Petroleum Geology and Recovery Efficiency, 2012,19(4):66-70.
[12]	何佑伟, 程时清, 胡利民, 等. 多段压裂水平井不均匀产油试井模型[J]. 中国石油大学学报(自然科学版), 2017,41(4):116-123.
	HE Youwei, CHENG Shiqing, HU Limin, et al. A pressure transient analysis model of multi-fractured horizontal well in consideration of unequal production of each fracture[J]. Journal of China University of Petroleum(Edition of Natural Science), 2017,41(4):116-123.
[13]	王本成, 贾永禄, 李友全, 等. 多段压裂水平井试井模型求解新方法[J]. 石油学报, 2013,34(6):1 150-1 156.
	WANG Bencheng, JIA Yonglu, LI Youquan, et al. A new solution of well test model for multistage fractured horizontal wells[J]. Acta Petrolei Sinica, 2013,34(6):1 150-1 156.
[14]	赵超, 肖洁, 许正栋, 等. 多段压裂水平井压力动态特征分析[J]. 断块油气田, 2015,22(6):798-802.
	ZHAO Chao, XIAO Jie, XU Zhengdong, et al. Dynamical pressure characteristics of multi-stage fractured horizontal well[J]. Fault-Block Oil & Gas Field, 2015,22(6):798-802.
[15]	刘龙伟. 气藏水平井产气剖面实验装置及测试方案[D]. 成都: 西南石油大学, 2017.
	LIU Longwei. Experimental device and test scheme of gas production profile in gas reservoir horizontal well[D]. Chengdu: Southwest Petroleum University, 2017.
[16]	刘乃震, 张兆鹏, 邹雨时, 等. 致密砂岩水平井多段压裂裂缝扩展规律[J]. 石油勘探与开发, 2018,45(6):1 059-1 068.
	LIU Naizhen, ZHANG Zhaopeng, ZOU Yushi, et al. Propagation law of hydraulic fractures during multi-staged horizontal well fracturing in a tight reservoir[J]. Petroleum Exploration and Development, 2018,45(6):1 059-1 068.
[17]	卢涛, 张吉, 李跃刚, 等. 苏里格气田致密砂岩气藏水平井开发技术及展望[J]. 天然气工业, 2013,33(8):38-43.
	LU Tao, ZHANG Ji, LI Yuegang, et al. Horizontal well development technology for tight sandstone gas reservoirs in the Sulige gas field,Ordos basin[J]. Natural Gas Industry, 2013,33(8):38-43.
[18]	长庆油田分公司苏里格气田研究中心. 苏里格气田水平井开发技术与实践[M]. 北京: 石油工业出版社, 2017:23-32.
	Sulige Gas Field Research Center of Changqing Oilfield Branch. Development technology and practice of horizontal wells in Sulige gas field[M]. Beijing: Petroleum Industry Press, 2017:23-32.
[19]	郭晶晶. 基于多重运移机制的页岩气渗流机理及试井分析理论研究[D]. 成都: 西南石油大学, 2013.
	GUO Jingjing. Research on multiple migration mechanisms and well testing theory for shale gas reservoirs[D]. Chengdu: Southwest Petroleum University, 2013.
