鄂尔多斯盆地长7页岩油藏水平井生产制度

doi:10.7657/XJPG20220310

摘要/Abstract

摘要：

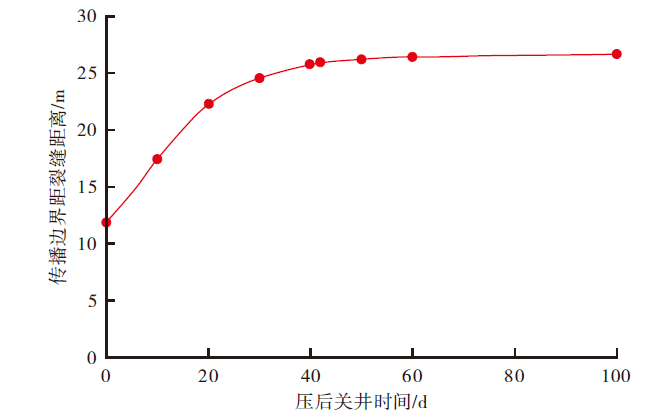

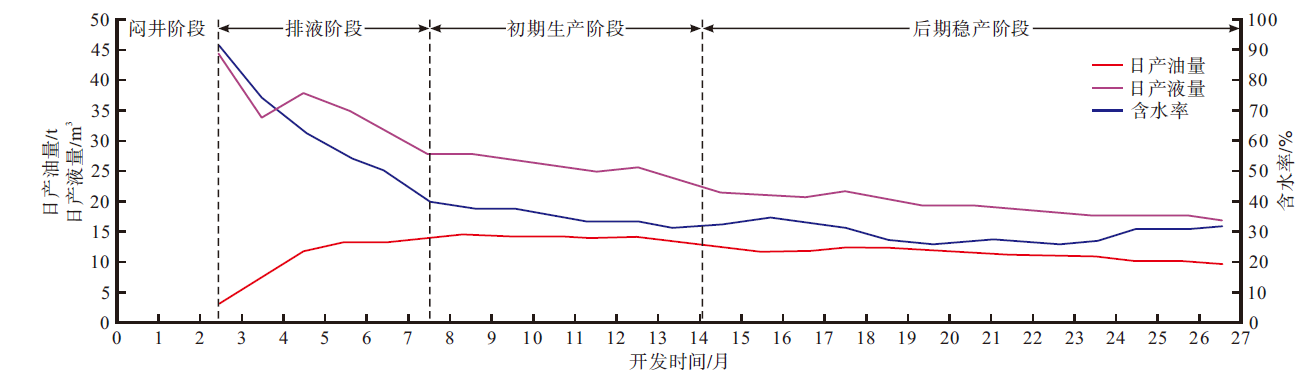

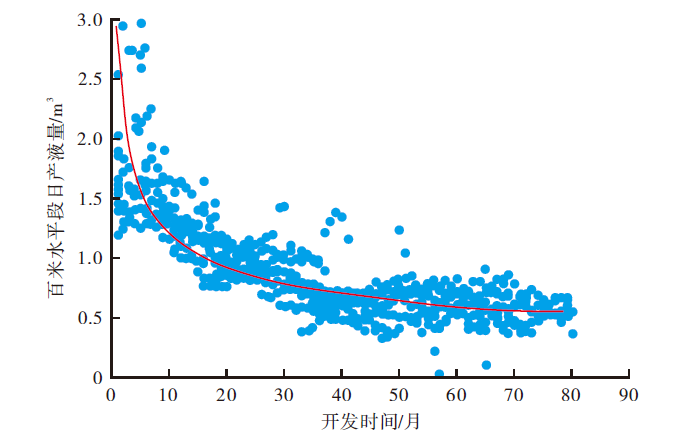

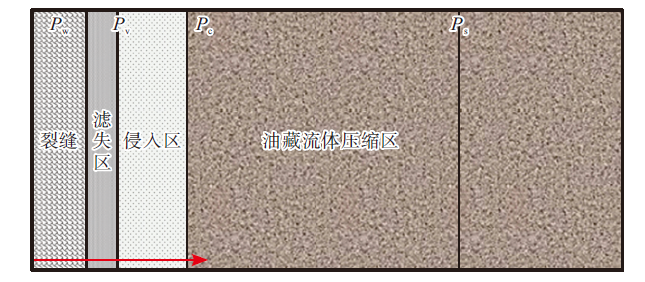

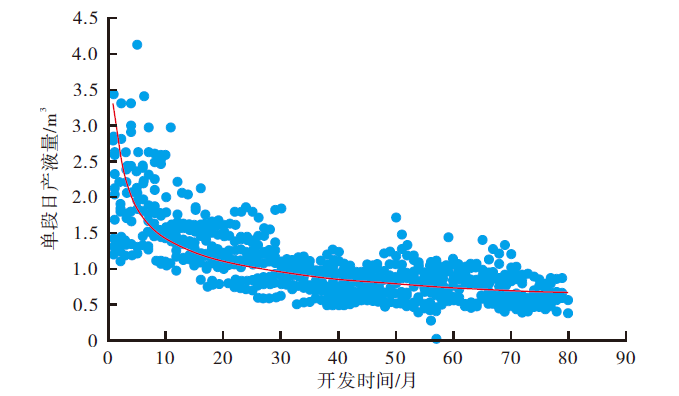

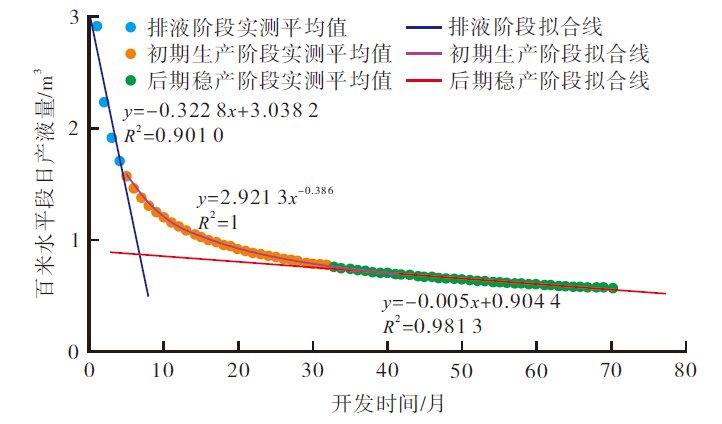

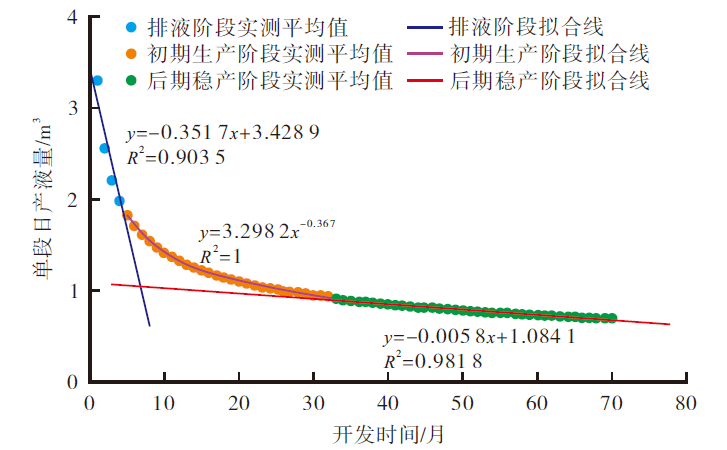

为合理制定长7页岩油藏水平井的生产制度,保障长7页岩油藏的单井产量,基于鄂尔多斯盆地长7页岩油藏开发的理论研究与生产资料,通过计算水平井体积压裂后人工裂缝缝内压力传播距离与时间的关系,以传播到边界的压力不随时间变化的原则确定合理闷井时间为40 d;高含水排液阶段结束的标志是采出水矿化度分析值与原始地层水相近或水平井压裂液置换率大于60%;通过定量分析水平井单段及百米水平段生产规律,建立动态关系式,确定各阶段合理的产液量。

关键词: 鄂尔多斯盆地, 页岩油, 水平井, 体积压裂, 准自然能量, 闷井, 排液, 生产制度

Abstract:

To ensure the production of shale oil in Chang 7 member, Ordos basin, this paper discussed the production system of the horizontal well in Chang 7 member based on the theoretical research and production data. By establishing the relationship between the distance of the pressure propagation boundary from fractures induced by volume fracturing in horizontal well and the time, and assuming that the pressure propagated to the boundary does not change with time, the reasonable well soaking period is determined to be 40 d. It is considered that the high-watercut drainage stage ends when the analyzed salinity of the produced water is similar to the salinity of initial formation water, or the replacement rate of fracturing fluid in horizontal wells is greater than 60%. By quantitatively analyzing the production profile of a single section and a 100-m horizontal section in the horizontal well, the dynamic relationship was established for determining a reasonable fluid production for each stage.

Key words: Ordos basin, shale oil, horizontal well, volume fracturing, quasi-natural energy, well soaking, drainage, production system

中图分类号:

TE155

万晓龙, 张原立, 樊建明, 李桢, 张超. 鄂尔多斯盆地长7页岩油藏水平井生产制度[J]. 新疆石油地质, 2022, 43(3): 329-334.

WAN Xiaolong, ZHANG Yuanli, FAN Jianming, LI Zhen, ZHANG Chao. Production System of Horizontal Well in Shale Oil Reservoirs of Chang 7 Member, Ordos Basin[J]. Xinjiang Petroleum Geology, 2022, 43(3): 329-334.

图/表 7

图1

图2

图3

图4

图5

图6

图7

参考文献 24

[1]	杨华, 李士祥, 刘显阳, 等. 鄂尔多斯盆地致密油、页岩油特征及资源潜力[J]. 石油学报, 2013,34(1):1–11.
	YANG Hua, LI Shixiang, LIU Xianyang, et al. Characteristics and resource prospects of tight oil and shale oil in Ordos basin[J]. Acta Petrolei Sinica, 2013,34(1):1–11.
[2]	邹才能, 张国生, 杨智, 等. 非常规油气概念、特征、潜力及技术:兼论非常规油气地质学[J]. 石油勘探与开发, 2013,40(4):385-399.
	ZOU Caineng, ZHANG Guosheng, YANG Zhi, et al. Geological concepts,characteristics,resource potential and key techniques of unconventional hydrocarbon:on unconventional petroleum geology[J]. Petroleum Exploration and Development, 2013,40(4):385-399.
[3]	焦方正, 邹才能, 杨智. 陆相源内石油聚集地质理论认识及勘探开发实践[J]. 石油勘探与开发, 2020,47(6):1 067-1 078.
	JIAO Fangzheng, ZOU Caineng, YANG Zhi. Geological theory and exploration & development practice of hydrocarbon accumulation inside continental source kitchens[J]. Petroleum Exploration and Development, 2020,47(6):1 067-1 078.
[4]	付金华, 李士祥, 牛小兵, 等. 鄂尔多斯盆地三叠系长7段页岩油地质特征与勘探实践[J]. 石油勘探与开发, 2020,47(5):870-883.
	FU Jinhua, LI Shixiang, NIU Xiaobing, et al. Geological characteristics and exploration of shale oil in Chang 7 member of Triassic Yanchang formation,Ordos basin,NW China[J]. Petroleum Exploration and Development, 2020,47(5):870-883.
[5]	金之钧, 朱如凯, 梁新平, 等. 当前陆相页岩油勘探开发值得关注的几个问题[J]. 石油勘探与开发, 2021,48(6):1 276-1 287.
	JIN Zhijun, ZHU Rukai, LIANG Xinping, et al. Several issues worthy of attention in current lacustrine shale oil exploration and development[J]. Petroleum Exploration and Development, 2021,48(6):1 276-1 287.
[6]	王倩茹, 陶士振, 关平. 中国陆相盆地页岩油研究及勘探开发进展[J]. 天然气地球科学, 2020,31(3):417-427.
	WANG Qianru, TAO Shizhen, GUAN Ping. Progress in research and exploration & development of shale oil in continental basins in China[J]. Natural Gas Geoscience, 2020,31(3):417-427.
[7]	张斌, 毛治国, 张忠义, 等. 鄂尔多斯盆地三叠系长7段黑色页岩形成环境及其对页岩油富集段的控制作用[J]. 石油勘探与开发, 2021,48(6):1 127-1 136.
	ZHANG Bin, MAO Zhiguo, ZHANG Zhongyi, et al. Black shale formation environment and its control on shale oil enrichment in Triassic Chang 7 member,Ordos basin,NW China[J]. Petroleum Exploration and Development, 2021,48(6):1 127-1 136.
[8]	杨智, 邹才能. “进源找油”:源岩油气内涵与前景[J]. 石油勘探与开发, 2019,46(1):173-184.
	YANG Zhi, ZOU Caineng. “Exploring petroleum inside source kitchen”:connotation and prospects of source rock oil and gas[J]. Petroleum Exploration and Development, 2019,46(1):173-184. doi: 10.1016/S1876-3804(19)30017-5
[9]	付锁堂, 金之钧, 付金华, 等. 鄂尔多斯盆地延长组7段从致密油到页岩油认识的转变及勘探开发意义[J]. 石油学报, 2021,42(5):561-569.
	FU Suotang, JIN Zhijun, FU Jinhua, et al. Transformation of understanding from tight oil to shale oil in the Member 7 of Yanchang formation in Ordos basin and its significance of exploration and development[J]. Acta Petrolei Sinica, 2021,42(5):561-569.
[10]	付锁堂, 付金华, 牛小兵, 等. 庆城油田成藏条件及勘探开发关键技术[J]. 石油学报, 2020,41(7):777-795.
	FU Suotang, FU Jinhua, NIU Xiaobing, et al. Accumulation conditions and key exploration and development technologies in Qingcheng oilfield[J]. Acta Petrolei Sinica, 2020,41(7):777-795.
[11]	李倩文, 马晓潇, 高波, 等. 美国重点页岩油区勘探开发进展及启示[J]. 新疆石油地质, 2021,42(5):630-640.
	LI Qianwen, MA Xiaoxiao, GAO Bo, et al. Progress and enlightenment of exploration and development of major shale oil zones in the USA[J]. Xinjiang Petroleum Geology, 2021,42(5):630-640.
[12]	张抗, 张立勤, 刘冬梅. 近年中国油气勘探开发形势及发展建议[J]. 石油学报, 2022,43(1):15-28.
	ZHANG KANG, ZHANG Liqin, Liu Dongmei. Situation of China's oil and gas exploration and development in recent years and relevant suggestions[J]. Acta Petrolei Sinica, 2022,43(1):15-28.
[13]	邹才能, 杨智, 朱如凯, 等. 中国非常规油气勘探开发与理论技术进展[J]. 地质学报, 2015,89(6):979-1 007.
	ZOU Cai, YANG Zhi, ZHU Rukai, et al. Progress in China's unconventionai oil & gas exploration and development and theoretical technologies[J]. Acta Geologica Sinica, 2015,89 (6):979-1 007.
[14]	林森虎, 邹才能, 袁选俊, 等. 美国致密油开发现状及启示[J]. 岩性油气藏, 2011,23(4):25-30.
	LIN Senhu, ZOU Caineng, YUAN Xuanjun, et al. Status quo of tight oil exploitation in the United States and its implication[J]. Lithologic Reservoirs, 2011,23(4):25-30.
[15]	葸克来, 李克, 操应长, 等. 鄂尔多斯盆地三叠系延长组长7₃亚段富有机质页岩纹层组合与页岩油富集模式[J]. 石油勘探与开发, 2020,47(6):1 244-1 255.
	XI Kelai, LI Ke, CAO Yingchang, et al. Laminae combination and shale oil enrichment patterns of Chang 7₃ sub-member organic-rich shales in the Triassic Yanchang formation,Ordos basin,NW China[J]. Petroleum Exploration and Development, 2020,47(6):1 244-1 255.
[16]	杨帆, 孟鑫, 王先虎, 等. 玛页1井风城组页岩微观孔隙特征及其影响因素[J]. 新疆石油地质, 2022,43(1):1-10.
	YANG Fan, MENG Xin, WANG Xianhu, et al. Micro-pore characteristics and influencing factors of Fengcheng formation shale in Well Maye-1[J]. Xinjiang Petroleum Geology, 2022,43(1):1-10.
[17]	曾联波, 吕文雅, 徐翔, 等. 典型致密砂岩与页岩层理缝的发育特征、形成机理及油气意义[J]. 石油学报, 2022,43(2):180-191.
	ZENG Lianbo, LV Wenya, XU Xiang, et al. Development characteristics,formation mechanism and hydrocarbon significance of bedding fractures in typical tight sandstone and shale[J]. Acta Petrolei Sinica, 2022,43(2):180-191.
[18]	潘丽燕, 阮东, 惠峰, 等. 玛湖凹陷风城组薄互层分层压裂优化方法[J]. 新疆石油地质, 2022,43(2):221-226.
	PAN Liyan, RUAN Dong, HUI Feng, et al. Methods for separatelayer fracturing optimization of thin interbeds in Fengcheng formation,Mahu sag[J]. Xinjiang Petroleum Geology, 2022,43(2):221-226.
[19]	李宪文, 樊凤玲, 杨华, 等. 鄂尔多斯盆地低压致密油藏不同开发方式下的水平井体积压裂实践[J]. 钻采工艺, 2016,39(3):34-36.
	LI Xianwen, FAN Fengling, YANG Hua, et al. Volumetric fracturing technology of low-pressure tight oil reservoirs horizontal wells under different development conditions in Ordos basin[J]. Drilling and Production Technology, 2016,39(3):34-36.
[20]	徐加祥, 杨立峰, 丁云宏, 等. 致密油水平井体积压裂产能影响因素[J]. 大庆石油地质与开发, 2020,39(1):162-168.
	XU Jiaxiang, YANG Lifeng, DING Yunhong, et al. Influencing factors on the productivity of the volume-fractured horizontal well in the tight oil reservoir[J]. Petroleum Geology and Oilfield in Daqing, 2020,39(1):162-168.
[21]	侯连华, 于志超, 罗霞, 等. 页岩油气最终采收量地质主控因素:以美国海湾盆地鹰滩页岩为例[J]. 石油勘探与开发, 2021,48(3):654-665.
	HOU Lianhua, YU Zhichao, LUO Xia, et al. Key geological factors controlling the estimated ultimate recovery of shale oil and gas:a case study of the Eagle Ford shale,Gulf Coast basin,USA[J]. Petroleum Exploration and Development, 2021,48(3):654-665.
[22]	王威. 致密油藏水平井体积压裂初期产能预测[J]. 新疆石油地质, 2016,37(5):575-579.
	WANG Wei. Forecast of initial horizontal well productivity in tight reservoirs by volumetric fracturing process[J]. Xinjiang Petroleum Geology, 2016,37(5):575-579.
[23]	徐黎明, 阎逸群, 曹仁义, 等. 致密油准自然能量开发及产能影响因素研究[J]. 石化技术, 2016,23(1):114-116.
	XU Liming, YAN Yiqun, CAO Renyi, et al. A study on division of development stages and productivity-influencing factors for tight oil developed by pseudo-natural energy[J]. Petrochemical technology, 2016,23 (1):114-116.
[24]	王欢, 计秉玉, 廖新维, 等. 致密油藏体积压裂水平井压力特征[J]. 断块油气田, 2020,27(2):217-223.
	WANG Huan, JI Bingyu, LIAO Xinwei, et al. Pressure characteristics of volume-fracturing horizontal well in tight oil reservoirs[J]. Fault-Block Oil & Gas Field, 2020,27(2):217-223.
