准噶尔盆地石钱滩凹陷石钱滩组地质特征及油气勘探

doi:10.7657/XJPG20240602

摘要/Abstract

摘要：

准噶尔盆地东部隆起石钱滩凹陷东部缓坡带S3井在石炭系石钱滩组获高产工业气流，石钱滩组天然气藏勘探获重要突破，进一步证实准噶尔盆地东部发育海相碎屑岩天然气富集凹陷。为明确石钱滩凹陷石钱滩组地质特征及油气勘探潜力，综合地震、录井、测井、岩心和分析化验资料，开展了石钱滩凹陷烃源岩、储集层及油气成藏综合研究。研究区石钱滩组发育2套烃源岩，烃源岩整体厚度大，品质好，具备发育大规模气藏的物质基础；石钱滩组储集层为典型致密砂砾岩储集层，发育南、北双向物源的扇三角洲沉积体系，扇三角洲前缘大规模砂体主要分布在环凹斜坡区；石钱滩组发育近源致密砂岩岩性气藏，石钱滩组是目前石钱滩凹陷石炭系天然气勘探的重点层系，气藏源储匹配关系好，受近源与砂体规模共同控制。

关键词: 准噶尔盆地, 石钱滩凹陷, 石炭系, 石钱滩组, 烃源岩, 沉积储集层, 成藏模式

Abstract:

Well S3 drilled in the gentle slope zone of the eastern Shiqiantan sag in the east uplift of the Junggar basin, has produced a high-yield industrial gas flow from the Carboniferous Shiqiantan formation. This significant breakthrough in natural gas exploration in the Shiqiantan formation further confirms the presence of a marine clastic-rock sag rich in natural gas in the eastern Junggar basin. To better understand the geological characteristics and petroleum exploration potential of the Shiqiantan formation in the Shiqiantan sag, a comprehensive study of source rocks, reservoirs, and hydrocarbon accumulation was conducted using seismic, drilling, logging, core, and testing data. The Shiqiantan formation in the study area contains two sets of source rocks, which are generally thick and of high quality, providing a solid material basis for large-scale gas reservoir development. The reservoirs in the Shiqiantan formation are typically composed of tight sandy conglomerate in which a fan delta system with bidirectional provenances in the south and north is found. Large scale delta-front sand bodies are mainly distributed in the slope zone around the sag. The Shiqiantan formation hosts near-source tight lithological sandstone gas reservoirs, making it the key target for gas exploration in the Carboniferous of the Shiqiantan sag. It has favorable source-reservoir assemblages jointly controlled by proximity to the source and sand body size.

Key words: Junggar basin, Shiqiantan sag, Carboniferous, Shiqiantan formation, source rock, reservoir, hydrocarbon accumulation model

中图分类号:

TE122.1

何昌松, 王秉乾, 魏双宝, 蒲振山, 王力龙, 马强, 张伟. 准噶尔盆地石钱滩凹陷石钱滩组地质特征及油气勘探[J]. 新疆石油地质, 2024, 45(6): 642-649.

HE Changsong, WANG Bingqian, WEI Shuangbao, PU Zhenshan, WANG Lilong, MA Qiang, ZHANG Wei. Geological Characteristics and Petroleum Exploration of Shiqiantan Formation in Shiqiantan Sag, Junggar Basin[J]. Xinjiang Petroleum Geology, 2024, 45(6): 642-649.

图/表 9

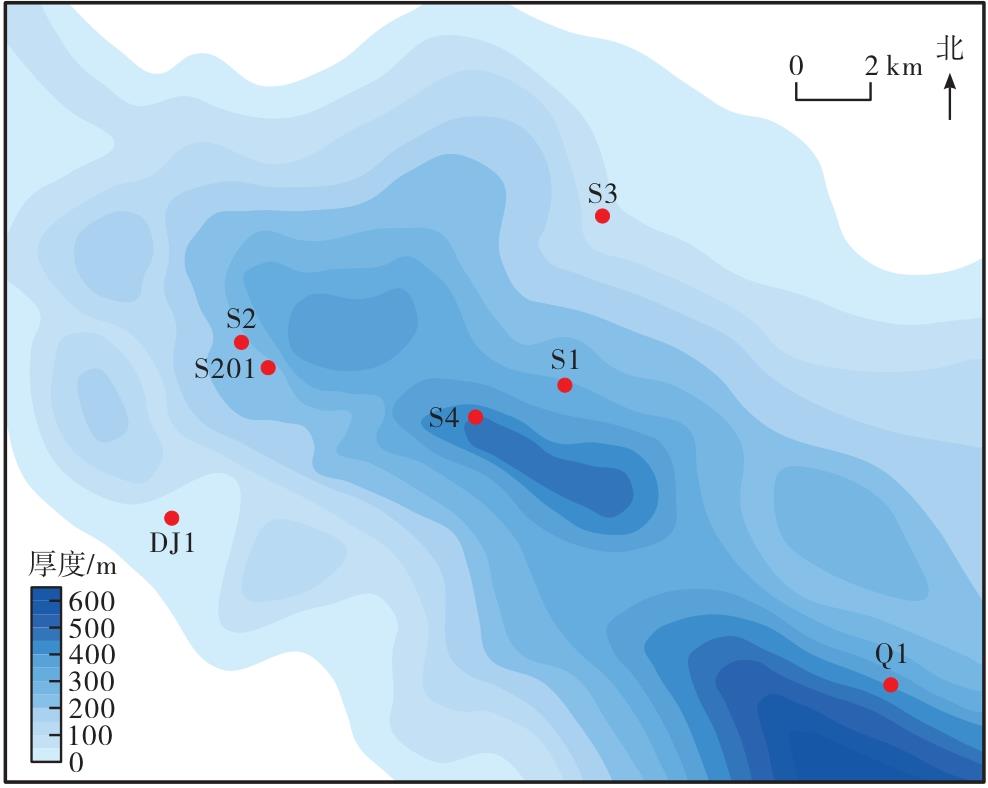

图1

图2

表1

图3

图4

图5

表2

图6

图7

参考文献 21

[1]	胡自龙, 卞保力, 刘海磊, 等. 准噶尔盆地大井地区天然气成因、来源与成藏过程[J]. 天然气地球科学, 2019, 30(6):850-859. doi: 10.11764/j.issn.1672-1926.2019.04.011
	HU Zilong, BIAN Baoli, LIU Hailei, et al. Genetic types,origins and accumulation process of natural gases from Dajing area,Junggar basin[J]. Natural Gas Geoscience, 2019, 30(6):850-859. doi: 10.11764/j.issn.1672-1926.2019.04.011
[2]	陈军, 陈静, 李娜, 等. 准噶尔盆地东部石炭系天然气勘探潜力[J]. 天然气地球科学, 2020, 31(7):952-961. doi: 10.11764/j.issn.1672-1926.2020.04.020
	CHEN Jun, CHEN Jing, LI Na, et al. The exploration potential of Carboniferous natural gas in the eastern Junggar basin[J]. Natural Gas Geoscience, 2020, 31(7):952-961. doi: 10.11764/j.issn.1672-1926.2020.04.020
[3]	支东明, 陈旋, 杨润泽, 等. 准噶尔盆地东部残留海相凹陷勘探实践及全油气系统[J]. 新疆石油地质, 2024, 45(2):127-138.
	ZHI Dongming, CHEN Xuan, YANG Runze, et al. Exploration practice and total petroleum system in residual marine sag,eastern Junggar basin[J]. Xinjiang Petroleum Geology, 2024, 45(2):127-138.
[4]	王屿涛, 陈克迅. 准噶尔盆地东部五彩湾—大井地区生油层特征及评价[J]. 新疆石油地质, 1989, 10(1):73-79.
	WANG Yutao, CHEN Kexun. Source characteristics and evaluation of Wucaiwan-Dajing area in eastern Junggar basin[J]. Xinjiang Petroleum Geology, 1989, 10(1):73-79.
[5]	陈业全, 王伟锋. 准噶尔盆地构造演化与油气成藏特征[J]. 石油大学学报(自然科学版), 2004, 28(3):4-8.
	CHEN Yequan, WANG Weifeng. Structural evolution and pool-forming in Junggar basin[J]. Journal of the University of Petroleum,China, 2004, 28(3):4-8.
[6]	董雪梅, 徐怀民, 贺陆明, 等. 克拉美丽石炭系火山岩气田的高效勘探开发[J]. 新疆石油地质, 2012, 33(2):214-217.
	DONG Xuemei, XU Huaimin, HE Luming, et al. Efficient exploration and development of Carboniferous volcanic gas field in Kelameili area in Junggar basin[J]. Xinjiang Petroleum Geology, 2012, 33(2):214-217.
[7]	匡立春, 吕焕通, 王绪龙, 等. 准噶尔盆地天然气勘探实践与克拉美丽气田的发现[J]. 天然气工业, 2010, 30(2):1-6.
	KUANG Lichun, LYU Huantong, WANG Xulong, et al. Exploration of volcanic gas reservoirs and discovery of the Kelameili gas field in the Junggar basin[J]. Natural Gas Industry, 2010, 30(2):1-6.
[8]	唐勇, 侯章帅, 王霞田, 等. 准噶尔盆地石炭纪—二叠纪地层对比框架新进展[J]. 地质论评, 2002, 68(2):385-407.
	TANG Yong, HOU Zhangshuai, WANG Xiatian, et al. Progress of the Carboniferous and Permian stratigraphic framework and correlation of the Junggar basin,Xinjiang,northwest China[J]. Geological Review, 2002, 68(2):385-407.
[9]	康积伦, 付国斌, 韩成, 等. 准噶尔盆地东部隆起石钱滩凹陷石钱滩组层序划分[J]. 新疆石油地质, 2023, 44(3):265-276.
	KANG Jilun, FU Guobin, HAN Cheng, et al. Sequence division of Shiqiantan formation in Shiqiantan sag on eastern uplift of Junggar basin[J]. Xinjiang Petroleum Geology, 2023, 44(3):265-276.
[10]	曹倩, 江兴歌, 朱建辉, 等. 准噶尔盆地东部石炭系烃源岩演化模拟[J]. 石油实验地质, 2012, 34(3):314-318.
	CAO Qian, JIANG Xingge, ZHU Jianhui, et al. Simulation of source rock evolution in Carboniferous,eastern Junggar basin[J]. Petroleum Geology & Experiment, 2012, 34(3):314-318.
[11]	唐勇, 雷德文, 曹剑, 等. 准噶尔盆地二叠系全油气系统与源内天然气勘探新领域[J]. 新疆石油地质, 2022, 43(6):654-662.
	TANG Yong, LEI Dewen, CAO Jian, et al. Total petroleum system and inner-source natural gas exploration in Permian strata of Junggar basin[J]. Xinjiang Petroleum Geology, 2022, 43(6):654-662.
[12]	郑孟林, 田爱军, 杨彤远, 等. 准噶尔盆地东部地区构造演化与油气聚集[J]. 石油与天然气地质, 2018, 39(5):908-917.
	ZHENG Menglin, TIAN Aijun, YANG Tongyuan, et al. Structural evolution and hydrocarbon accumulation in the eastern Junggar basin[J]. Oil & Gas Geology, 2018, 39(5):908-917.
[13]	李林, 陈世家, 杨迪生, 等. 准噶尔盆地滴水泉凹陷石炭系烃源岩生烃能力分析[J]. 中国石油大学学报(自然科学版), 2013, 37(4):52-58.
	LI Lin, CHEN Shijia, YANG Disheng, et al. Hydrocarbon generation capacity analysis of Carboniferous source rocks in Dishuiquan sag of Junggar basin[J]. Journal of China University of Petroleum(Edition of Natural Science), 2013, 37(4):52-58.
[14]	赵应成, 谭开俊, 王鹏, 等. 准东地区石炭系烃源岩特征及分布规律[J]. 天然气地球科学, 2011, 22(5):753-759. doi: 10.11764/j.issn.1672-1926.2011.05.753
	ZHAO Yingcheng, TAN Kaijun, WANG Peng, et al. Geochemical characteristics of Carboniferous source rocks and distribution in the eastern part of Junggar basin[J]. Natural Gas Geoscience, 2011, 22 (5):753-759. doi: 10.11764/j.issn.1672-1926.2011.05.753
[15]	王淑芳, 邹才能, 侯连华, 等. 准噶尔盆地东部石炭系火山岩气藏石油地质特征及有利勘探方向分析[J]. 地学前缘, 2013, 20(2):226-236.
	WANG Shufang, ZOU Caineng, HOU Lianhua, et al. Petroleum geological characteristics of gas accumulation in Carboniferous volcanics and prospect for gas exploration,eastern Junggar basin[J]. Earth Science Frontiers, 2013, 20(2):226-236.
[16]	王圣柱, 王千军, 张关龙, 等. 准噶尔盆地石炭系烃源岩发育模式及地球化学特征[J]. 油气地质与采收率, 2020, 27(4):13-25.
	WANG Shengzhu, WANG Qianjun, ZHANG Guanlong, et al. Development mode and geochemical characteristics of Carboniferous source rocks in Junggar basin[J]. Petroleum Geology and Recovery Efficiency, 2020, 27(4):13-25.
[17]	何登发, 张磊, 吴松涛, 等. 准噶尔盆地构造演化阶段及其特征[J]. 石油与天然气地质, 2018, 39(5):845-861.
	HE Dengfa, ZHANG Lei, WU Songtao, et al. Tectonic evolution stages and features of the Junggar basin[J]. Oil & Gas Geology, 2018, 39(5):845-861.
[18]	张义杰, 齐雪峰, 程显胜, 等. 准噶尔盆地晚石炭世和二叠纪沉积环境[J]. 新疆石油地质, 2007, 28(6):673-675.
	ZHANG Yijie, QI Xuefeng, CHENG Xiansheng, et al. Approach to sedimentary environment of Late Carboniferous-Permian in Junggar basin[J]. Xinjiang Petroleum Geology, 2007, 28(6):673-675.
[19]	崔炳富, 孔令华, 陈军, 等. 准噶尔盆地东部石钱滩凹陷石炭系石钱滩组烃源岩特征及其生烃潜力分析[J]. 西北地质, 2024, 57(2):34-45.
	CUI Bingfu, KONG Linghua, CHEN Jun, et al. Characteristics and hydrocarbon generation potential for source rock of Carboniferous Shiqiantan formation in Shiqiantan depression,eastern Junggar basin[J]. Northwestern Geology, 2024, 57(2):34-45.
[20]	林潼, 杨威, 焦立新, 等. 准噶尔盆地东部石炭系海相砂岩气藏特征、潜力与勘探方向[J]. 天然气地球科学, 2024, 35(2):245-258. doi: 10.11764/j.issn.1672-1926.2023.09.021
	LIN Tong, YANG Wei, JIAO Lixin, et al. Characteristics,potential and exploration direction of Carboniferous marine sandstone gas reservoirs in eastern Junggar basin[J]. Natural Gas Geoscience, 2024, 35(2):245-258. doi: 10.11764/j.issn.1672-1926.2023.09.021
[21]	熊伟, 张奎华, 王越, 等. 石钱滩凹陷石炭系石钱滩组沉积环境与沉积相特征[J]. 地质论评, 2023, 69(1):13-14.
	XIONG Wei, ZHANG Kuihua, WANG Yue, et al. Sedimentary environment of Carboniferous Shiqiantan formation in Shiqiantan sag[J]. Geological Review, 2023, 69(1):13-14.

井名	总有机碳含量/%	生烃潜量/（mg·g^-1）	氯仿沥青“A”含量/%	热解峰温/℃	氢指数/（mg·g^-1）	镜质体反射率/%
S1井	1.11~2.48（1.31）	0.12~1.07（0.61）	0.04~0.12（0.08）	473~492（479）	27.00~53.00（37.00）	1.48~1.68（1.61）
S2井	1.23~1.83（1.62）	1.12~2.31（1.75）		452~453（452）	68.29~95.00（79.93）	1.21~1.61（1.18）
S4井	0.78~1.93（1.19）	0.81~3.31（1.61）	0.05~0.11（0.06）	464~479（473）	80.80~136.90（107.90）	0.65~1.41（1.13）
S3井	0.67~6.59（1.14）	0.07~10.25（0.61）		430~497（480）	4.89~105.90（48.10）	0.57~1.74（1.13）

井名	井段/m	岩性	孔隙度/%	渗透率/mD
S1井	3 914—3 918	砂砾岩	2.3~5.6（4.2）	0.001~1.390（0.170）
S2井	4 525—4 533	砂砾岩	2.5~4.8（3.1）	0.005~1.220（0.680）
S3井	3 839—3 842	砂砾岩	2.8~9.3（6.0）	0.001~1.260（0.190）
S4井	3 555—3 563	粉—细砂岩	5.0~6.5（5.5）	0.003~0.600（0.200）
