Identification of Fluid in Highly Saline Tight Reservoirs of Fengcheng Formation in Maxi Slope Area

doi:10.7657/XJPG20240304

Abstract

Abstract:

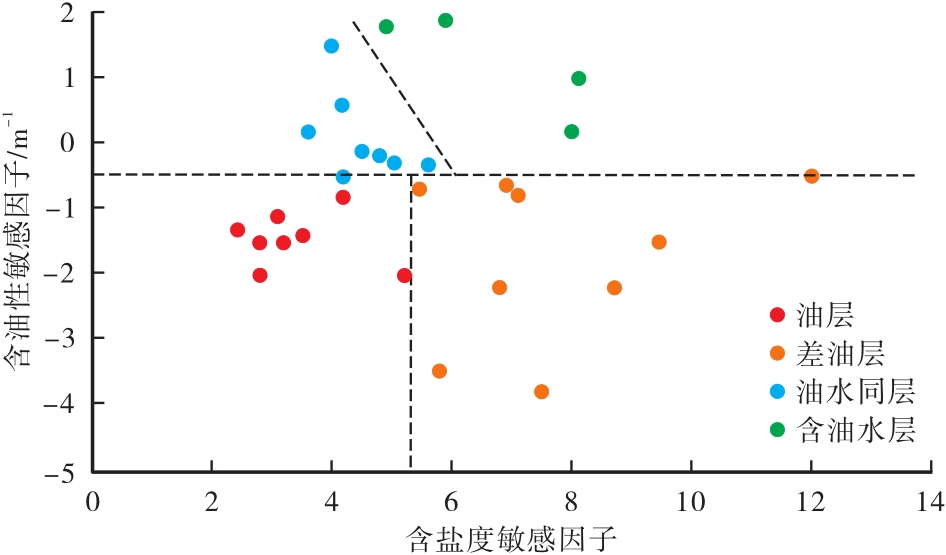

The Permian Fengcheng formation in the Maxi slope area of the Junggar basin is characterized by highly saline tight reservoirs deposited in alkaline lakes, and the relationship between oil and water in these reservoirs is complicated, which leads to difficulties in fluid identification. A thermal neutron macroscopic capture cross-section of the highly saline formation was constructed by using lithoscanner logging data, and an oil-sensitive factor was constructed by using the difference between the thermal neutron macroscopic capture cross-section from logging and the thermal neutron macroscopic capture cross-section of the brine-saturated formation. Furthermore, a salinity-sensitive factor was constructed by using the ratio of chlorine element relative yield to total porosity. Then, a fluid identification chart was established by intersecting the oil-sensitive factor with the salinity-sensitive factor. The actual application shows that this fluid identification chart can accurately assess reservoir fluid properties and provide a basis for selecting formation test layers.

Key words: Junggar basin, Maxi slope area, Fengcheng formation, tight reservoir, thermal neutron macroscopic capture cross-section, lithoscanner logging, fluid identification

CLC Number:

MAO Rui, BAI Yu, WANG Pan, HUANG Zhiqiang. Identification of Fluid in Highly Saline Tight Reservoirs of Fengcheng Formation in Maxi Slope Area[J]. Xinjiang Petroleum Geology, 2024, 45(3): 279-285.

Figures/Tables 7

Fig. 1.

Table 1.

Fig. 2.

Table 2.

Fig. 3.

Fig. 4.

Fig. 5.

References 21

[1]	邢东辉. 致密油气储层核磁共振响应机理实验研究与应用[D]. 山东青岛: 中国石油大学(华东), 2019.
	XING Donghui. Experimental study and application of NMR response mechanism in tight oil and gas reservoirs[D]. Qingdao,Shandong: China University of Petroleum(East China), 2019.
[2]	梁灿, 肖立志, 周灿灿, 等. 岩石润湿性的核磁共振表征方法与初步实验结果[J]. 地球物理学报, 2019, 62(11):4472-4481. doi: 10.6038/cjg2019M0266
	LIANG Can, XIAO Lizhi, ZHOU Cancan, et al. Nuclear magnetic resonance characterizes rock wettability:Preliminary experimental results[J]. Chinese Journal of Geophysics, 2019, 62(11):4472-4481.
[3]	范旭强. 英西地区混积致密储层岩石物理特征及其含流体性质识别[D]. 北京: 中国石油大学(北京), 2020.
	FAN Xuqiang. Petrophysical characterization of tight reservoirs in the mixed sediments and its fluid types identification in Yingxi area[D]. Beijing: China University of Petroleum(Beijing), 2020.
[4]	李鹏, 熊健, 晏奇, 等. 准噶尔盆地玛湖凹陷二叠系风城组岩性对岩石力学特性的影响[J]. 石油实验地质, 2022, 44(4):569-578.
	LI Peng, XIONG Jian, YAN Qi, et al. Lithological influences to rock mechanical properties of Permian Fengcheng formation in Mahu sag,Junggar basin[J]. Petroleum Geology & Experiment, 2022, 44(4):569-578.
[5]	郑国伟, 高之业, 黄立良, 等. 准噶尔盆地玛湖凹陷二叠系风城组页岩储层润湿性及其主控因素[J]. 石油与天然气地质, 2022, 43(5):1206-1220.
	ZHENG Guowei, GAO Zhiye, HUANG Liliang, et al. Wettability of the Permian Fengcheng formation shale in the Mahu sag,Junggar basin,and its main control factors[J]. Oil & Gas Geology, 2022, 43(5):1206-1220.
[6]	单祥, 窦洋, 晏奇, 等. 玛南斜坡区风城组致密油藏储集层特征及控制因素[J]. 新疆石油地质, 2022, 43(6):704-713.
	SHAN Xiang, DOU Yang, YAN Qi, et al. Characteristics and controlling factors of tight oil reservoirs of Fengcheng formation in southern slope of Mahu sag[J]. Xinjiang Petroleum Geology, 2022, 43(6):704-713.
[7]	倪敏婕, 祝贺暄, 何文军, 等. 准噶尔盆地玛湖凹陷风城组沉积环境与沉积模式分析[J]. 现代地质, 2023, 37(5):1194-1207.
	NI Minjie, ZHU Hexuan, HE Wenjun, et al. Depositional environment and sedimentary model of the Fengcheng formation in Mahu sag,Junggar basin[J]. Geoscience, 2023, 37(5):1194-1207.
[8]	孙乐, 王志章, 于兴河, 等. 高精度CT成像技术在致密油储层孔隙结构研究中的应用:以准噶尔盆地玛湖西斜坡风城组为例[J]. 东北石油大学学报, 2016, 40(6):26-34.
	SUN Le, WANG Zhizhang, YU Xinghe, et al. Application of high resolution CT image technology to research of pore structure of tight oil reservoir:A case study of the Fengcheng formation on the Mahu west slope in Junggar basin[J]. Journal of Northeast Petroleum University, 2016, 40(6):26-34.
[9]	张永庶, 张审琴, 吴颜雄, 等. 基于成像测井和岩性扫描测井的沉积相研究:以柴达木盆地黄瓜峁地区为例[J]. 新疆石油地质, 2019, 40(5):593-599.
	ZHANG Yongshu, ZHANG Shenqin, WU Yanxiong, et al. Study on sedimentary facies based on FMI logging and LS logging:A case study of Huangguamao area,Qaidam basin[J]. Xinjiang Petroleum Geology, 2019, 40(5):593-599.
[10]	闫学洪, 曹春锋, 王慧. 岩性扫描测井资料处理解释方法研究与应用[J]. 测井技术, 2018, 42(5):503-508.
	YAN Xuehong, CAO Chunfeng, WANG Hui. Research and application on processing and interpretation of litho scanner logging data[J]. Well Logging Technology, 2018, 42(5):503-508.
[11]	毛锐, 申子明, 张浩, 等. 基于岩性扫描测井的混积岩岩性识别:以玛湖凹陷风城组为例[J]. 新疆石油地质, 2022, 43(6):743-749.
	MAO Rui, SHEN Ziming, ZHANG Hao, et al. Lithology identification for diamictite based on lithology scan logging:A case study on Fengcheng formation,Mahu sag[J]. Xinjiang Petroleum Geology, 2022, 43(6):743-749.
[12]	吴煜宇, 谢冰, 伍丽红, 等. 四川盆地二叠系基性火山岩测井评价技术:以永探1井区火山岩为例[J]. 天然气工业, 2019, 39(2):37-45.
	WU Yuyu, XIE Bing, WU Lihong, et al. Logging based lithology identification of Permian mafic volcanic rocks in the Sichuan basin:A case study from the Well Yongtan 1[J]. Natural Gas Industry, 2019, 39(2):37-45.
[13]	屈亚龙, 裴宸育, 李卫兵, 等. 水淹层热中子成像测井解释与分级方法[J]. 石油物探, 2022, 61(4):743-749. doi: 10.3969/j.issn.1000-1441.2022.04.017
	QU Yalong, PEI Chenyu, LI Weibing, et al. Thermal neutron imaging log interpretation and classification methods for water-flooded reservoirs[J]. Geophysical Prospecting for Petroleum, 2022, 61(4):743-749. doi: 10.3969/j.issn.1000-1441.2022.04.017
[14]	朱学娟, 单沙沙, 殷梓原, 等. PNN测井清污混注水淹层剩余油饱和度计算方法[J]. 物探与化探, 2021, 45(3):679-685.
	ZHU Xuejuan, SHAN Shasha, YIN Ziyuan, et al. The calculation method of residual oil saturation by PNN logging in water flooded interval injected by fresh water and sewage[J]. Geophysical and Geochemical Exploration, 2021, 45(3):679-685.
[15]	王婧慈, 令狐松, 徐文远, 等. 水淹层混合地层水宏观俘获截面逐层计算方法[J]. 科技导报, 2013, 31(10):30-34.
	WANG Jingci, LINGHU Song, XU Wenyuan, et al. Layer-by-layer calculation of the macroscopic capture cross section of mixed formation water in water-flooded zone[J]. Science & Technology Review, 2013, 31(10):30-34.
[16]	余宽宏, 操应长, 邱隆伟, 等. 准噶尔盆地玛湖凹陷早二叠世风城组沉积时期湖盆古卤水演化及盐类矿物特征[J]. 天然气地球科学, 2016, 27(7):1248-1263.
	YU Kuanhong, CAO Yingchang, QIU Longwei, et al. Brine evolution of ancient lake and mechanism of carbonate minerals during the sedimentation of Early Permian Fengcheng formation in Mahu depression,Junggar basin,China[J]. Natural Gas Geoscience, 2016, 27(7):1248-1263.
[17]	毛锐, 赵磊, 申子明, 等. 玛湖凹陷风城组碱性矿物特征及天然碱测井评价[J]. 新疆石油地质, 2023, 44(6):667-673.
	MAO Rui, ZHAO Lei, SHEN Ziming, et al. Characteristics of alkaline minerals and logging evaluation of trona in Fengcheng formation of Mahu sag[J]. Xinjiang Petroleum Geology, 2023, 44(6):667-673.
[18]	田孝茹, 张元元, 卓勤功, 等. 准噶尔盆地玛湖凹陷下二叠统风城组致密油充注特征:碱性矿物中的流体包裹体证据[J]. 石油学报, 2019, 40(6):646-659. doi: 10.7623/syxb201906002
	TIAN Xiaoru, ZHANG Yuanyuan, ZHUO Qingong, et al. Tight oil charging characteristics of Lower Permian Fengcheng formation in Mahu sag,Junggar basin:Evidence from fluid inclusions in alkaline minerals[J]. Acta Petrolei Sinica, 2019, 40(6):646-659. doi: 10.7623/syxb201906002
[19]	吴定莹, 蒲迪, 郑苗, 等. 玛湖凹陷风城组碱盐井筒结盐规律探究[J]. 新疆石油天然气, 2023, 19(3):42-48. doi: 10.12388/j.issn.1673-2677.2023.03.007
	WU Dingying, PU Di, ZHENG Miao, et al. Study on the law of wellbore alkali-salt deposition in Fengcheng formation of Mahu sag[J]. Xinjiang Oil & Gas, 2023, 19(3):42-48.
[20]	蒋宜勤, 文华国, 祁利祺, 等. 准噶尔盆地乌尔禾地区二叠系风城组盐类矿物和成因分析[J]. 矿物岩石, 2012, 32(2):105-114.
	JIANG Yiqin, WEN Huaguo, QI Liqi, et al. Salt minerals and their genesis of the Permian Fengcheng formation in Urho area,Junggar basin[J]. Mineralogy and Petrology, 2012, 32(2):105-114.
[21]	洪有密. 测井原理与综合解释[M]. 山东东营: 中国石油大学出版社, 1998.
	HONG Youmi. Logging principles and comprehensive interpretation[M]. Dongying,Shandong: China University of Petroleum Press, 1998.

井名	井段/m	总矿化度/ （mg·L^-1）	热中子宏观俘获截面/m^-1
MH48井	5 213—5 276	254 165.81	10.85
MH52井	5 436—5 444	284 099.57	11.87
MH52井	4 967—5 058	279 283.52	11.71
MH281井	4 804—4 850	266 203.67	11.26
MH54井	5 038—5 130	345 359.76	13.95

矿物类型	溶解性	释放离子
天然碱	极易溶于水	Na⁺、HCO₃^-
碳钠镁石	微溶于水	Na⁺、CO₃^2-
氯碳钠镁石	部分溶于水	Na⁺、Cl^-
硅硼钠石	不溶于水
碳钠钙石	不溶于水
石盐	极易溶于水	Na⁺、Cl^-
