塔河油田奥陶系缝洞充填序列及其测井响应

doi:10.7657/XJPG20210106

摘要/Abstract

摘要：

碳酸盐岩缝洞充填对缝洞型储集层有重要影响,准确识别缝洞充填物类型,建立充填模式,有利于更好地识别与评价缝洞型储集层的发育情况。通过观察岩心,将缝洞充填物划分为砂泥质充填物、角砾岩充填物、化学充填物和未充填;利用测井信息标定各类充填物的测井响应特征,基于岩溶形成的主控因素将缝洞充填体分为地下暗河型、断控岩溶型及表层岩溶型3种类型,并建立充填模式。在此基础上,结合岩心观察,归纳不同充填模式的一般充填序列及其测井响应特征,发现地下暗河型更易钻遇大溶洞,断控岩溶型有利于油气的运移,表层岩溶型则多发育溶蚀孔洞。

关键词: 塔河油田, 奥陶系, 碳酸盐岩, 缝洞型储集层, 缝洞充填物, 充填模式, 充填序列, 测井响应

Abstract:

Fracture-cavity filling in carbonate rocks has an important influence on fracture-cavity reservoirs. Accurately identifying the types of fracture-cavity fillings and establishing filling patterns are conducive to better identifying and evaluating the development situations of fracture-cavity reservoirs. By observing the core, the fracture-cavity fillings can be divided into sand-shale fillings, breccia fillings, chemical fillings and empty filling. The logging response characteristics of various fillings are calibrated by using logging information. Based on the main controlling factors of karst forming, the fracture-cavity fillings can be divided into three types, namely underground river type, fault-controlled karst type, and surface karst type, and then establish filling mode. On this basis, combined with core observations, the general filling sequence of different filling modes and its logging responses are summarized. It is found that large karst caves are easier to be drilled in the fillings of the underground river type, the fillings of fault-controlled karst type is conducive to migration of oil and gas, and dissolved cavities are developed in the fillings of surface karst type.

Key words: Tahe oilfield, Ordovician, carbonate rock, fracture-cavity reservoir, fracture-cavity filling, filling pattern, filling sequence, logging response

中图分类号:

TE122.221

刘晶晶, 毛毳, 魏荷花, 权莲顺, 刘泽璇. 塔河油田奥陶系缝洞充填序列及其测井响应[J]. 新疆石油地质, 2021, 42(1): 46-52.

LIU Jingjing, MAO Cui, WEI Hehua, QUAN Lianshun, LIU Zexuan. Ordovician Fracture-Cavity Filling Sequence and Its Logging Responses in Tahe Oilfield[J]. Xinjiang Petroleum Geology, 2021, 42(1): 46-52.

图/表 5

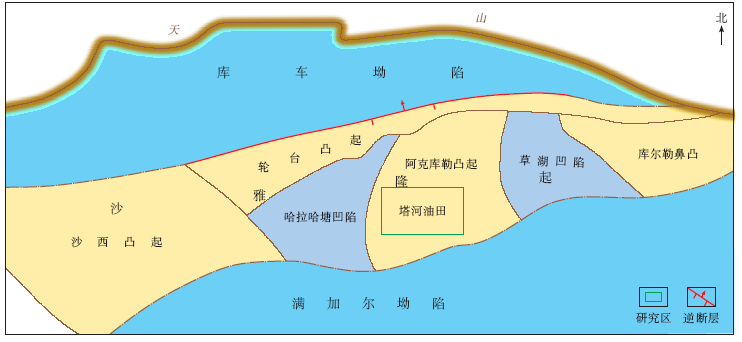

图1

表1

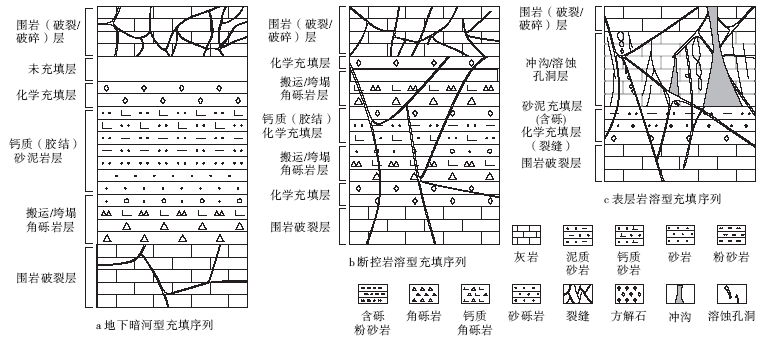

图2

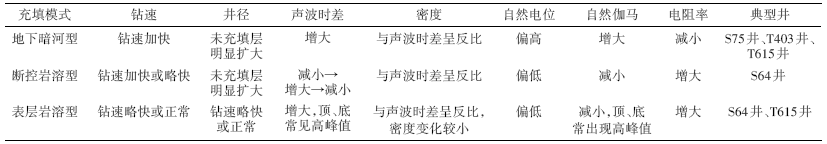

Table 2

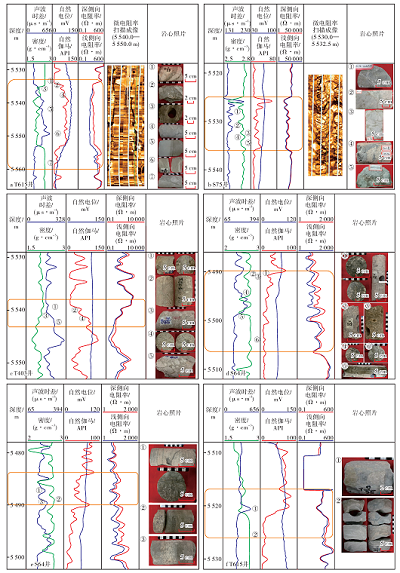

图3

参考文献 32

[1]	邓胜徽, 杜品德, 卢远征 , 等. 塔里木盆地塔中—巴楚地区奥陶系内幕不整合[J]. 地质论评, 2015,61(2):324-332.
	DENG Shenghui, DU Pinde, LU Yuanzheng , et al. Unconformities in the Ordovician of Tazhong—Bachu area of the Tarim basin,NW China[J]. Geological Review, 2015,61(2):324-332.
[2]	郑剑, 王振宇, 杨海军 , 等. 高频层序格架内礁型微地貌特征及其控储机理:以塔中东部地区上奥陶统为例[J]. 地质学报, 2015,89(5):942-956.
	ZHENG Jian, WANG Zhenyu, YANG Haijun , et al. The control mechanism of microtopography in the high frequency sequence framework to reef-bank complex reservoir:an example from the Upper Ordovician Lianglitage formation in eastern Tazhong area[J]. Acta Geologica Sinica, 2015,89(5):942-956.
[3]	田军 . 塔里木盆地油气勘探成果与勘探方向[J]. 新疆石油地质, 2019,40(1):1-11.
	TIAN Jun . Petroleum exploration achievements and future targets of Tarim basin[J]. Xinjiang Petroleum Geology, 2019,40(1):1-11.
[4]	胡向阳, 权莲顺, 齐得山 , 等. 塔河油田缝洞型碳酸盐岩油藏溶洞充填特征[J]. 特种油气藏, 2014,21(1):18-21.
	HU Xiangyang, QUAN Lianshun, QI Deshan , et al. Karst filling characteristics of fracture-cave type carbonate reservoir in Tahe oilfield[J]. Special Oil & Gas Reservoirs, 2014,21(1):18-21.
[5]	邓兴梁, 罗新生, 刘永福 , 等. 缝洞型碳酸盐岩定容油藏形成机理及开发技术[J]. 新疆石油地质, 2019,40(1):79-83.
	DENG Xingliang, LUO Xinsheng, LIU Yongfu , et al. Forming mechanism and development measures of constant-volume fractured-vuggy carbonate oil reservoirs[J]. Xinjiang Petroleum Geology, 2019,40(1):79-83.
[6]	陈琳, 康志宏, 李鹏 , 等. 塔河油田奥陶系岩溶型碳酸盐岩油藏储集空间发育特征及地质模式探讨[J]. 现代地质, 2013,27(2):356-365.
	CHEN Lin, KANG Zhihong, LI Peng , et al. Development characteristics and geological model of Ordovician karst carbonate reservoir space in Tahe oilfied[J]. Geoscience, 2013,27(2):356-365.
[7]	李倩倩, 邢磊 . 塔中奥陶系鹰山组海相碳酸盐岩成岩及充填特征[J]. 中国海洋大学学报, 2019,49(7):44-55.
	LI Qianqian, XING Lei . Diagenetic and filling characteristics of marine carbonate rocks in Yingshan formation of Ordovician in Tazhong area[J]. Periodical of Ocean University of China, 2019,49(7):44-55.
[8]	李阳, 范智慧 . 塔河奥陶系碳酸盐岩油藏缝洞系统发育模式与分布规律[J]. 石油学报, 2011,32(1):101-106.
	LI Yang, FAN Zhihui . Developmental pattern and distribution rule of the fracture-cavity system of Ordovician carbonate reservoirs in the Tahe oilfield[J]. Acta Petrolei Sinica, 2011,32(1):101-106.
[9]	曹建文, 夏日元, 张庆玉 , 等. 潮湿环境下典型碳酸盐岩缝洞系统充填模式探讨[J]. 石油实验地质, 2016,38(1):56-62. doi: 10.11781/sysydz201601056
	CAO Jianwen, XIA Riyuan, ZHANG Qingyu , et al. Typical filling models of a fractured-vuggy system in carbonate rocks under a moist environment[J]. Petroleum Geology & Experiment, 2016,38(1):56-62.
[10]	田飞 . 塔河油田碳酸盐岩岩溶缝洞结构和充填模式研究[D]. 山东青岛:中国石油大学( 华东), 2014.
	TIAN Fei . Study on structure and filling model of karst fractures in carbonate rock in Tahe oilfield[D]. Qingdao,Shandong:China University of Petroleum( East China), 2014.
[11]	金强, 邹胜章, 钟建华 , 等. 碳酸盐岩缝洞型油藏缝洞单元形成机制及模式研究进展报告[J]. 科技资讯, 2016,14(5):170-171.
	JIN Qiang, ZOU Shengzhang, ZHONG Jianhua , et al. Carbonate fractured-cavity reservoir unit formation mechanism and model research[J]. Science and Technology Information, 2016,14(5):170-171.
[12]	邹胜章, 夏日元, 刘莉 , 等. 塔河油田奥陶系岩溶储层垂向带发育特征及其识别标准[J]. 地质学报, 2016,90(9):2 490-2 501.
	ZOU Shengzhang, XIA Riyuan, LIU Li , et al. Vertical zone characteristics and identification standard of Ordovician karst reservoirs in the Tahe oilfield[J]. Acta Geologica Sinica, 2016,90(9):2 490-2 501.
[13]	汤妍冰, 巫波, 周洪涛 . 缝洞型油藏不同控因剩余油分布及开发对策[J]. 石油钻采工艺, 2018,40(4):483-488.
	TANG Yanbing, WU Bo, ZHOU Hongtao . Distribution and development strategies of remaining oil controlled by different factors in fractured-vuggy oil reservoirs[J]. Oil Drilling and Production Technology, 2018,40(4):483-488.
[14]	田瀚, 杨敏 . 碳酸盐岩缝洞型储层测井评价方法[J]. 物探与化探, 2015,39(3):545-552. doi: 10.11720/wtyht.2015.3.18
	TIAN Han, YANG Min . The logging evaluation methods for fractured-vuggy carbonate reservoirs[J]. Geophysical and Geochemical Exploration, 2015,39(3):545-552.
[15]	王晓畅, 胡松, 孔强夫 . 双侧向测井响应计算洞穴充填物电阻率方法[J]. 地球物理学进展, 2018,33(3):1 155-1 160.
	WANG Xiaochang, HU Song, KONG Qiangfu . Method of cave fillings resistivity calculation by dual laterolog response[J]. Progress in Geophysics, 2018,33(3):1 155-1 160.
[16]	谢关宝, 李永杰, 吴海燕 , 等. 近井眼洞穴型地层双侧向测井敏感因素分析[J]. 石油钻探技术, 2020,48(1):120-126.
	XIE Guanbao, LI Yongjie, WU Haiyan , et al. Analysis of sensitive factors in dual laterologs for cavernous/karst formations near the borehole[J]. Petroleum Drilling Techniques, 2020,48(1):120-126.
[17]	刘玺, 张珊珊 . 过井眼缝洞地层双侧向电阻率测井敏感性因素分析[J]. 长江大学学报(自科版), 2018,15(23):31-35.
	LIU Xi, ZHANG Shanshan . The analysis on sensitivity of dual lateral resistivity logging for fracture-cavernous formation through the wellbore[J]. Journal of Yangtze University(Natural Science Edition), 2018,15(23):31-35.
[18]	杨海军, 李世银, 邓兴梁 , 等. 深层缝洞型碳酸盐岩凝析气藏勘探开发关键技术:以塔里木盆地塔中Ⅰ号气田为例[J]. 天然气工业, 2020,40(2):83-89.
	YANG Haijun, LI Shiyin, DENG Xingliang , et al. Key technologies for the exploration and development of deep fractured-vuggy carbonate condensate gas reservoirs:a case study of the Tazhong Ⅰ gas field in the Tarim basin[J]. Natural Gas Industry, 2020,40(2):83-89.
[19]	李政宏, 张立强, 陈曦 , 等. 缝洞型碳酸盐岩储层测井识别:以塔中东部良里塔格组良二段为例[J]. 天然气地球科学, 2019,30(12):1 805-1 814.
	LI Zhenghong, ZHANG Liqiang, CHEN Xi , et al. Logging identification of fractured-vuggy carbonate reservoirs:case study from the second section of Lianglitage formation in the eastern part of Tazhong area[J]. Natural Gas Geoscience, 2019,30(12):1 805-1 814.
[20]	王晓畅, 张军, 李军 , 等. 基于交会图决策树的缝洞体类型常规测井识别方法:以塔河油田奥陶系为例[J]. 石油与天然气地质, 2017,38(4):805-812.
	WANG Xiaochang, ZHANG Jun, LI Jun , et al. Conventional logging identification of fracture-vug complex types data based on crossplots-decision tree:a case study from the Ordovician in Tahe oilfield,Tarim basin[J]. Oil & Gas Geology, 2017,38(4):805-812.
[21]	赵艾琳, 谢冰, 何绪全 , 等. 川中地区下二叠统白云岩储层测井评价[J]. 天然气勘探与开发, 2017,40(2):1-6.
	ZHAO Ailin, XIE Bing, HE Xuquan , et al. Well logging evaluation of the Lower Permian dolomite reservoir in central Sichuan basin[J]. Natural Gas Exploration and Development, 2017,40(2):1-6.
[22]	李阳, 金强, 钟建华 , 等. 塔河油田奥陶系岩溶分带及缝洞结构特征[J]. 石油学报, 2016,37(3):289-298.
	LI Yang, JIN Qiang, ZHONG Jianhua , et al. Karst zonings and fracture-cave structure characteristics of Ordovician reservoirs in Tahe oilfield,Tarim basin[J]. Acta Petrolei Sinica, 2016,37(3):289-298.
[23]	李亚锋, 伍坤宇, 高树芳 , 等. 英西地区混积碳酸盐岩有效储集层评价[J]. 新疆石油地质, 2019,40(5):520-527.
	LI Yafeng, WU Kunyu, GAO Shufang , et al. Evaluation of effective reservoirs in mixed carbonate rocks in Yingxi area[J]. Xinjiang Petroleum Geology, 2019,40(5):520-527.
[24]	姜伟民, 刘波, 石开波 , 等. 塔里木盆地柯坪地区肖尔布拉克组碳酸盐岩微相类型和储集层特征[J]. 新疆石油地质, 2019,40(4):437-448.
	JIANG Weimin, LIU Bo, SHI Kaibo , et al. Microfacies and characteristics of carbonate reservoir in Xiaoerbulake formation of Keping area,Tarim basin[J]. Xinjiang Petroleum Geology, 2019,40(4):437-448.
[25]	柳建华, 蔺学旻, 张卫锋 , 等. 塔河油田碳酸盐岩储层有效性测井评价实践与思考[J]. 石油与天然气地质, 2014,35(6):950-958. doi: 10.11743/ogg20140622
	LIU Jianhua, LIN Xuemin, ZHANG Weifeng , et al. Logging evaluation of carbonate reservoir effectiveness in Tahe oilfield,Tarim basin[J]. Oil & Gas Geology, 2014,35(6):950-958.
[26]	艾合买提江. 塔河油田碳酸盐岩缝洞系统成因及模式研究[D]. 山东青岛:中国石油大学( 华东), 2009.
	AHEMATIJANG. Study on genesis and model of carbonate fracturecave system in Tahe oilfield[D]. Qingdao,Shandong:China University of Petroleum( East China), 2009.
[27]	崔璐 . 大牛地气田奥陶系上组合岩溶地层测井响应特征[J]. 石油地质与工程, 2019,33(5):26-30.
	CUI Lu . Logging response characteristics of karst formation in Upper Ordovician assemblage of Daniudi gas field[J]. Petroleum Geology and Engineering, 2019,33(5):26-30.
[28]	田飞, 金强, 李阳 , 等. 塔河油田奥陶系缝洞型储层小型缝洞及其充填物测井识别[J]. 石油与天然气地质, 2012,33(6):900-908. doi: 10.11743/ogg20120611
	TIAN Fei, JIN Qiang, LI Yang , et al. Identification of small fracture-vugs and their fillings through log in terpretation in fractured-vuggy Ordovician reservoirs in Tahe oilfield[J]. Oil & Gas Geology, 2012,33(6):900-908.
[29]	傅海成, 邹长春, 肖承文 , 等. 轮古地区古岩溶成像测井响应特征及其对岩溶发育的指示作用[J]. 中国岩溶, 2015,34(2):136-146.
	FU Haicheng, ZOU Changchun, XIAO Chengwen , et al. Characteristics of imaging logging response and indication of paleokarst development in Lungu area[J]. Carsologica Sinica, 2015,34(2):136-146.
[30]	郑晓丽, 安海亭, 王祖君 , 等. 哈拉哈塘地区走滑断裂与断溶体油藏特征[J]. 新疆石油地质, 2019,40(4):449-455.
	ZHENG Xiaoli, AN Haiting, WANG Zujun , et al. Characteristics of strike-slip faults and fault-karst carbonate reservoirs in Halahatang area,Tarim basin[J]. Xinjiang Petroleum Geology, 2019,40(4):449-455.
[31]	张庆玉, 梁彬, 淡永 , 等. 塔中北斜坡奥陶系鹰山组岩溶储层特征及古岩溶发育模式[J]. 中国岩溶, 2015,35(1):106-113.
	ZHANG Qingyu, LIANG Bin, DAN Yong , et al. Research of karst reservoirs characteristics and paleokarst development pattern of the Ordovician Yingshan formation north-slope of Tazhong area,Tarim basin[J]. Carsologica Sinica, 2015,35(1):106-113.
[32]	李朝旭, 秦启荣, 田国庆 , 等. 靖边气田南部奥陶系马五₁₊₂亚段储集层成岩演化特征[J]. 新疆石油地质, 2020,41(2):172-179.
	LI Zhaoxu, QIN Qirong, TIAN Guoqing , et al. Diagenetic evolution of the Ordovician Ma5₁₊₂ Sub-member reservoir in the southern Jingbian gasfield,Ordos basin[J]. Xinjiang Petroleum Geology, 2020,41(2):172-179.

井名	鹰山组顶深/m	表层岩溶带/m	垂向岩溶带/m	径流岩溶带/m	缝洞段/m	岩心特征	充填序列类型
S64井	5 470.5	5 470.5—5 515.5	5 515.5—5 555.5	5 515.5—5 625.5	5 484.0—5 490.0	灰色泥岩夹薄层角砾岩,裂隙含油	表层岩溶型
S64井	5 470.5	5 470.5—5 515.5	5 515.5—5 555.5	5 515.5—5 625.5	5 490.0—5 506.0	多角砾充填,见高角度裂缝,有擦痕	断控岩溶型
S75井	5 501.5	5 501.5—5 546.5	5 546.5—5 586.5	5 586.5—5 656.5	5 526.0—5 534.0	多种类型充填物混合充填	地下暗河型
S75井	5 501.5	5 501.5—5 546.5	5 546.5—5 586.5	5 586.5—5 656.5	5 681.0—5 689.0	巨晶方解石充填缝洞	地下暗河型
T403井	5 405.0	5 405.0—5 450.0	5 450.0—5 490.0	5 490.0—5 560.0	5 536.0—5 542.0	多种类型充填物混合充填,少化学充填物,多搬运角砾	地下暗河型
T615井	5 521.0	5 521.0—5 566.0	5 566.0—5 606.0	5 606.0—5 676.0	5 517.0—5 526.0	裂缝含油,多垮塌充填,方解石、砂泥质充填裂缝或角砾间	表层岩溶型
T615井	5 521.0	5 521.0—5 566.0	5 566.0—5 606.0	5 606.0—5 676.0	5 533.0—5 560.0	多种类型充填物混合充填,多砂岩充填,常见泥质条带,裂缝、缝合线发育	地下暗河型
