碳酸盐岩孔隙-裂缝双重网络模型构建及分析

doi:10.7657/XJPG20210115

摘要/Abstract

摘要：

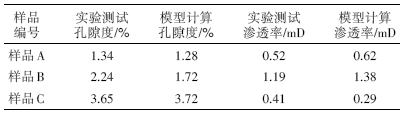

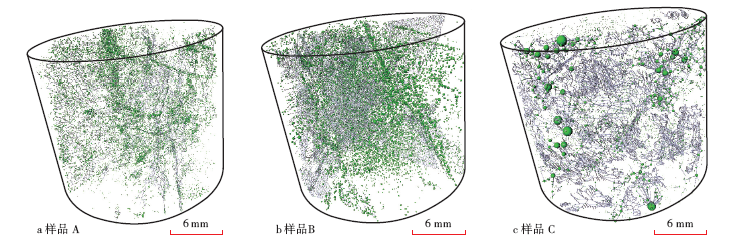

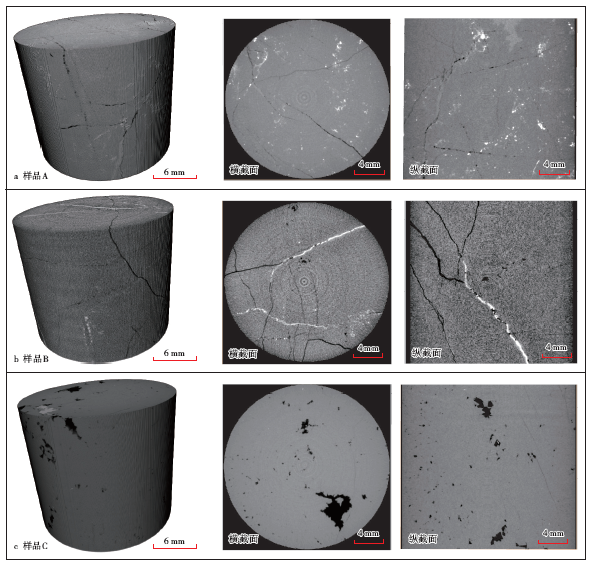

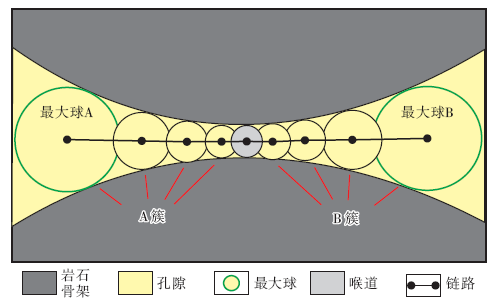

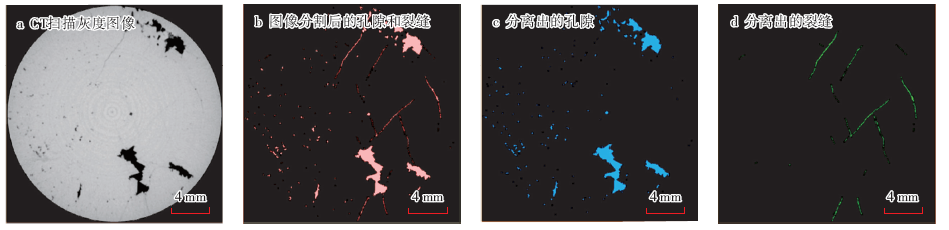

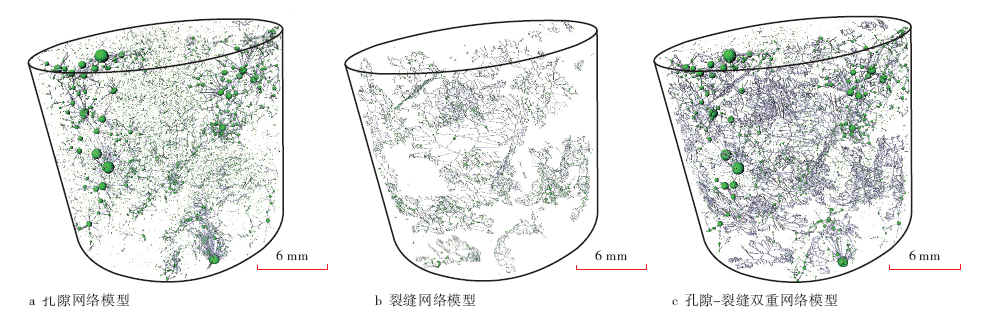

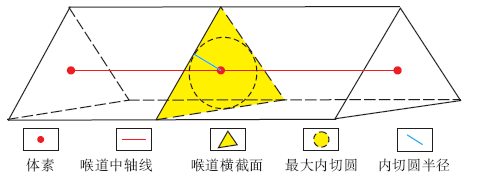

为了明确孔隙-裂缝型碳酸盐岩微观渗流机理,需构建能够精准表征真实孔隙-裂缝双重介质系统三维结构的数字化模型。利用碳酸盐岩样品CT扫描图像和图像分割技术,构建出反映样品结构的孔隙-裂缝双重介质数字岩心模型,并依据不同的形态特征参数,分离出样品的孔隙和裂缝空间。通过中心线提取法和最大球填充法,对碳酸盐岩裂缝空间进行了裂缝网络模型提取,结合碳酸盐岩孔隙网络模型,融合为一套孔隙-裂缝双重网络模型,该模型计算得出的孔隙度和绝对渗透率与常规物性实验所获数据较为接近。基于该方法构建的碳酸盐岩孔隙-裂缝双重网络模型能够精准表征孔隙-裂缝双重介质系统的真实三维结构,可用于后期微观渗流机理的深化研究。

关键词: 碳酸盐岩, 双重介质, CT扫描, 图像分割, 数字岩心模型, 孔隙网络模型, 裂缝网络模型

Abstract:

In order to study the microscopic flow mechanism of dual-porosity carbonate rock which contains both pore and fracture, a dual-porosity model should be built which can accurately characterize the pore-fracture system. We first constructed a digital rock model with a real pore-fracture system based on CT images and image segmentation technique before separating the fractures from the pores. Then centerline extraction and maximal ball methods were applied to construct a fracture network model and merge it with a pore network model into a pore-fracture network model. The porosity and absolute permeability calculated on the pore-fracture network model shows good agreement with the results from conventional property experiments. The pore-fracture network model can accurately characterize the real pore-fracture system of dual-porosity carbonate rock, and can be used to study microscopic flow mechanism.

Key words: carbonate dual-porosity media, CT imaging, image segmentation, digital rock model, pore network model, fracture network model

中图分类号:

TE344

罗瑜, 王寅, 王容, 袁雯. 碳酸盐岩孔隙-裂缝双重网络模型构建及分析[J]. 新疆石油地质, 2021, 42(1): 107-112.

LUO Yu, WANG Yin, WANG Rong, YUAN Wen. Construction and Analysis of Pore-Fracture Network Model of Carbonate Rock[J]. Xinjiang Petroleum Geology, 2021, 42(1): 107-112.

图/表 8

图 1

图 2

图 3

图 4

图5

Table 1

图 6

Table 2

参考文献 15

[1]	刘洋, 李世海, 刘晓宇 . 基于连续介质离散元的双重介质渗流应力耦合模型[J]. 岩石力学与工程学报, 2011,30(5):951-959.
	LIU Yang, LI Shihai, LIU Xiaoyu . Coupled fluid flow and stress computation model of dual media based on continuum-medium distinct element method[J]. Chinese Journal of Rock Mechanics and Engineering, 2011,30(5):951-959.
[2]	黄朝琴, 姚军, 王月英 , 等. 裂缝介质两相渗流数值模拟研究[J]. 中国科学:技术科学, 2011,41(9):1 240-1 248.
	HUANG Zhaoqin, YAO Jun, WANG Yueying , et al. Numerical study on two-phase flow through fractured porous media[J]. Scientia Sinica(Technologica), 2011,41(9):1 240-1 248.
[3]	赵建林, 姚军, 张磊 , 等. 微裂缝对致密多孔介质中气体渗流的影响机制[J]. 中国石油大学学报(自然科学版), 2018,42(1):90-98.
	ZHAO Jianlin, YAO Jun, ZHANG Lei , et al. Effects of micro-fractures on gas flow in tight porous media[J]. Journal of China University of Petroleum (Edition of Natural Science), 2018,42(1):90-98.
[4]	ØREN P-E, BAKKE S . Reconstruction of Berea sandstone and pore-scale modelling of wettability effects[J]. Journal of Petroleum Science & Engineering, 2003,39:177-199.
[5]	姚军, 王晨晨, 杨永飞 , 等. 碳酸盐岩双孔隙网络模型的构建方法和微观渗流模拟研究[J]. 中国科学:物理学力学天文学, 2013,43(7):896-902.
	YAO Jun, WANG Chenchen, YANG Yongfei , et al. The construction method and microscopic flow simulation of carbonate dual pore network model[J]. Scientia Sinica:Physica,Mechanica & Astronomica, 2013,43(7):896-902.
[6]	李佳琦, 陈蓓蓓, 孔明炜 , 等. 页岩油储集层数字岩心重构及微尺度下渗流特征:以吉木萨尔凹陷二叠系芦草沟组页岩油为例[J]. 新疆石油地质, 2019,40(3):319-327.
	LI Jiaqi, CHEN Beibei, KONG Mingwei , et al. Digital core reconstruction and research on microscale flow characteristics of shale oil reservoir:a case of the shale oil in Permian Lucaogou formation,Jimsar sag[J]. Xinjiang Petroleum Geology, 2019,40(3):319-327.
[7]	马聪, 王剑, 连丽霞 , 等. CT扫描在富泥储集层孔隙特征研究中的应用:以玛湖凹陷玛18井区为例[J]. 新疆石油地质, 2019,40(6):736-744.
	MA Cong, WANG Jian, LIAN Lixia , et al. Application of CT scanning in study on pore features of mud-rich reservoir:a case of Wellblock Ma-18 in Mahu sag[J]. Xinjiang Petroleum Geology, 2019,40(6):736-744.
[8]	RUSPINI L C, FAROKHPOOR R, ØREN P-E . Pore-scale modeling of capillary trapping in water-wet porous media:a new cooperative pore-body filling model[J]. Advances in Water Resources, 2017,108:1-14. doi: 10.1016/j.advwatres.2017.07.008
[9]	RAGNEMALM I . The Euclidean distance transform in arbitrary dimensions[J]. Pattern Recognition Letters, 1993,14(11):883-888. doi: 10.1016/0167-8655(93)90152-4
[10]	FOUARD C, MALANDAIN G, PROHASKA S , et al. Blockwise processing applied to brain microvascular network study[J]. IEEE Transactions on Medical Imaging, 2006,25(10):1 319-1 328. doi: 10.1109/TMI.2006.880670
[11]	李隆新, 常程, 徐伟 , 等. 数字岩心结合成像测井构建裂缝—孔洞型储层孔渗特征[J]. 天然气勘探与开发, 2017,40(3):16-23.
	LI Longxin, CHANG Cheng, XU Wei , et al. Reconstruction of porosity and permeability characteristics of fracture-vug reservoirs by using digital core together with imaging logging[J]. Natural Gas Exploration and Development, 2017,40(3):16-23.
[12]	BAKKE S, ØREN P-E . 3-D pore-scale modelling of sandstones and flow simulations in the pore networks[R]. SPE 35479, 1997.
[13]	ØREN P-E, BAKKE S, ARNTZEN O J . Extending predictive capabilities to network models[R]. SPE 38880, 1998.
[14]	BLUNT M J, JACKSON M D, PIRI M , et al. Detailed physics,predictive capabilities and macroscopic consequences for pore-network models of multiphase flow[J]. Advances in Water Resources, 2002,25:1 069-1 089.
[15]	AGHAEI A, PIRI M . Direct pore-to-core up-scaling of displacement processes:dynamic pore network modeling and experimentation[J]. Journal of Hydrology, 2015,522:488-509. doi: 10.1016/j.jhydrol.2015.01.004
