辽河油田高3618区块火线预测及注采参数优化

doi:10.7657/XJPG20210410

摘要/Abstract

摘要：

辽河油田高升稠油油藏高3618区块受储集层强非均质性、井间干扰、孔喉堵塞等影响,火线推进不均匀,火驱效益低,为此,通过火驱物理模拟实验,明确原油不同氧化阶段的温度界限,利用阿伦尼乌斯方程修正动力学参数,在基础井网上建立井间连通性模型,定量表征注采井间连通程度。并用高温气体示踪剂模拟方法验证连通性模型合理性,两者结合表征火线的运移轨迹,拟合精度提高到85%。通过数值模拟方法优化注采参数来调控火线,减缓气窜,增大了火驱波及系数,提高了原油采收率。如I5-0151C2井与I51-156井初始日注气量均为10 000 m³,I5-0158C井为10 500 m³,注气井月增注气量3 000 m³,水平井定液量100 m³ /d,参数优化后能够有效维持火线均匀推进,火驱波及系数扩大了8.74%,采收率提高了6.37%。

关键词: 辽河油田, 高3618区块, 稠油油藏, 井间连通性, 示踪剂, 火线预测, 注采参数, 气窜, 波及系数

Abstract:

Affected by factors such as reservoir heterogeneity, well interference and pore blockage, the fire front advances unevenly, and results in unsatisfactory fire flooding development of the Block Gao 3618 in Gaosheng heavy oil reservoir of Liaohe oilfield. Therefore, physical experiments on simulating fire flooding process were carried out to understand the temperature limit of crude oil in different oxidation stages, kinetic parameters were revised using the Arrhenius equation, and a well connectivity model was established on the basic well pattern to quantitatively characterize the connectivity between injection and production wells. The rationality of the connectivity model was verified through high-temperature gas tracer simulation. The physical experiments and the model were joined together to characterize the moving trajectory of the fire front, making the fitting accuracy increase to 85%. After optimizing the injection-production parameters based on numerical simulation, the fire front was controlled, gas channeling was slowed down, the fire flooding sweep coefficient was increased and the oil recovery was enhanced. For example, the initial gas injection rate is 10,000 m³/d for Well I5-0151C2 and Well I51-156, and 10,500 m³/d for Well I5-0158C. Supposing that the monthly increase of gas injection is 3,000 m³/d, and horizontal wells produces at a fixed rate of 100 m³/d, the fire front can advance evenly after parameter optimization, the sweep coefficient can increase by 8.74%, and the recovery can increase by 6.37%.

Key words: Liaohe oilfield, Block Gao 3618, heavy oil reservoir, well connectivity, tracer, fire front prediction, injection-production parameter, gas channeling, sweep coefficient

中图分类号:

TE357.44

姜毅, 喻高明, 辛显康, 王立萱, 张丰峰, 陈明贵. 辽河油田高3618区块火线预测及注采参数优化[J]. 新疆石油地质, 2021, 42(4): 462-468.

JIANG Yi, YU Gaoming, XIN Xiankang, WANG Lixuan, ZHANG Fengfeng, CHEN Minggui. Fire Front Prediction and Injection-Production Parameter Optimization for Block Gao 3618, Liaohe Oilfield[J]. Xinjiang Petroleum Geology, 2021, 42(4): 462-468.

图/表 7

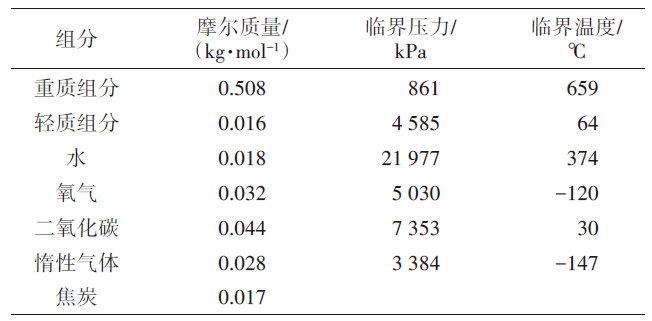

表1

表2

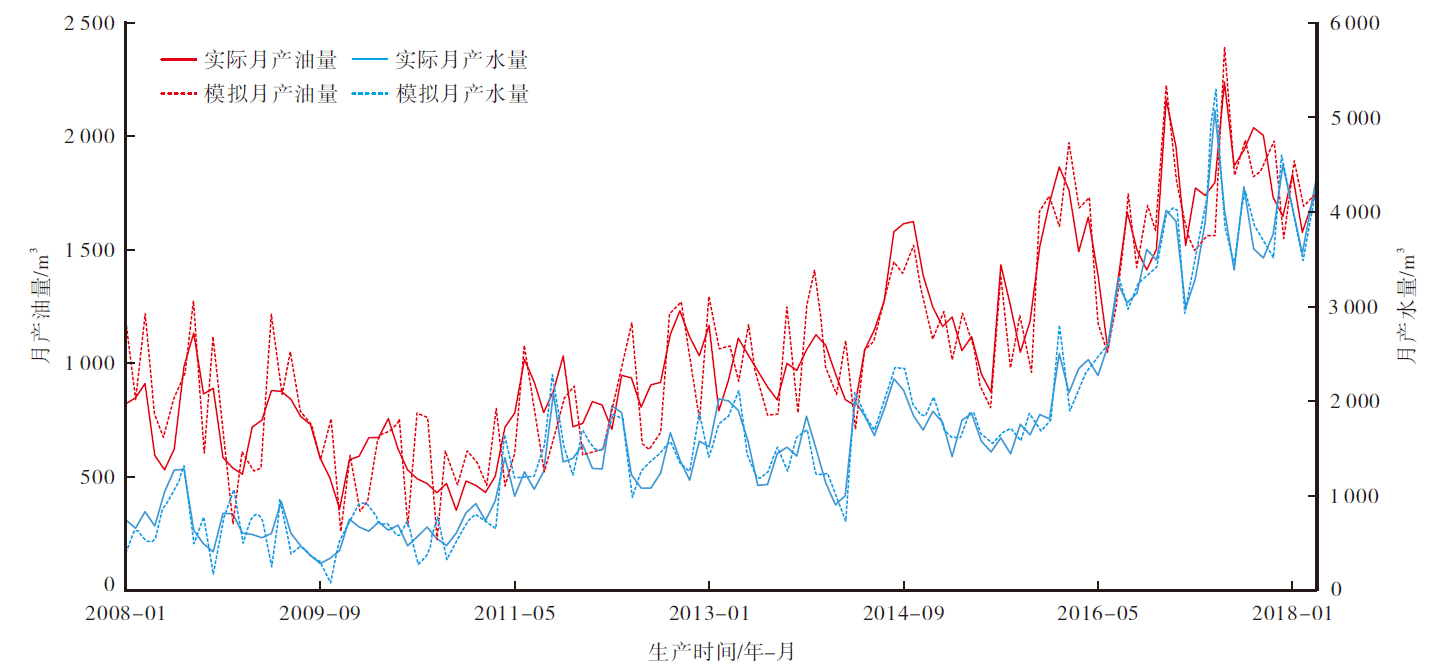

图1

图2

图3

图4

图5

参考文献 25

[1]	梁琳琳. 高倾角巨厚油藏火驱数值模拟研究[D]. 北京:中国石油大学(北京), 2017.
	LIANG Linlin. Numerical simulation of ISC in a dip thick reservoir[D]. Beijing:China University of Petroleum (Beijing), 2017.
[2]	金兆勋, 江琴, 张宏梅. 高升油田厚层稠油油藏吞吐后期火驱开发存在问题探讨[J]. 石油地质与工程, 2013, 27(6):100-102.
	JIN Zhaoxun, JIANG Qin, ZHANG Hongmei. Existing problem discussion of thick layer of heavy oil reservoir at late stage of huff and puff in Gaosheng oilfield[J]. Petroleum Geology and Engineering, 2013, 27(6):100-102.
[3]	张方礼. 厚层稠油油藏火驱射孔层段优化探讨[J]. 特种油气藏, 2013, 20(2):96-101.
	ZHANG Fangli. Optimization of perforation interval for fire flood in thick heavy oil reservoirs[J]. Special Oil and Gas Reservoirs, 2013, 20(2):96-101.
[4]	龚姚进. 厚层块状稠油油藏平面火驱技术研究与实践[J]. 特种油气藏, 2012, 19(3):58-62.
	GONG Yaojin. Technical research and practice of areal fire flooding for thick-massive heavy oil reservoirs[J]. Special Oil and Gas Reservoirs, 2012, 19(3):58-62.
[5]	李树山. 厚层块状稠油油藏火驱调控技术[J]. 特种油气藏, 2016, 23(6):77-81.
	LI Shushan. Fire-flooding adjustment and control in thick-massive heavy-oil reservoir[J]. Special Oil and Gas Reservoirs, 2016, 23(6):77-81.
[6]	FREITAG N P, EXELBY D R. Heavy oil production by in situ combustion:distinguishing the effects of the steam and fire fronts[J]. The Journal of Canadian Petroleum Technology, 1998, 37(4):25-32.
[7]	XI Changfeng, GUAN Wenlong, JIANG Youwei, et al. Numerical simulation of fire flooding for heavy oil reservoirs after steam injection:a case study on Block H1 of Xinjiang oilfield,NW China[J]. Petroleum Exploration and Development, 2013, 40(6):766-773. doi: 10.1016/S1876-3804(13)60102-0
[8]	关文龙, 梁金中, 吴淑红, 等. 矿场火驱过程中火线预测与调整方法[J]. 西南石油大学学报(自然科学版), 2011, 33(5):157-161.
	GUAN Wenlong, LIANG Jinzhong, WU Shuhong, et al. Prediction and controlling method of combustion front in the process of fire-flooding development[J]. Journal of Southwest Petroleum University(Science & Technology Edition), 2011, 33(5):157-161.
[9]	姚倩, 韩登林, 王晨晨, 等. 稠油油藏火驱前后储集层变化定量表征:以辽河油田高3-6-18井为例[J]. 新疆石油地质, 2020, 41(5):592-598.
	YAO Qian, HAN Denglin, WANG Chenchen, et al. Quantitative characterization of reservoir changes before and after fire flooding in heavy oil reservoirs:a case study of Well Gao3-6-18 in Liaohe oilfield[J]. Xinjiang Petroleum Geology, 2020, 41(5):592-598.
[10]	曲占庆, 李杨, 田相雷, 等. 火驱燃烧前缘位置预测与影响因素研究[J]. 石油化工高等学校学报, 2015, 28(1):36-40.
	QU Zhanqing, LI Yang, TIAN Xianglei, et al. Prediction method and influence factors of combustion front in the process of fireflooding[J]. Journal of Petrochemical Universities, 2015, 28(1):36-40.
[11]	冯乃超, 程时清, 于海洋, 等. 多层火驱过程中火线位置预测与调控方法[J]. 科学技术与工程, 2019, 19(6):97-104.
	FENG Naichao, CHENG Shiqing, YU Haiyang, et al. Prediction and controlling method of combustion front in the process of multilayer fire flooding[J]. Science Technology and Engineering, 2019, 19(6):97-104.
[12]	王史文, 刘东亮, 刘艳波, 等. 应用多种示踪剂监测火烧油层动态特征[J]. 石油钻采工艺, 2003, 25(6):75-77.
	WANG Shiwen, LIU Dongliang, LIU Yanbo, et al. Dynamic characteristic monitoring of in-situ combustion with multiple tracer[J]. Oil Drilling & Production Technology, 2003, 25(6):75-77.
[13]	FENG Tian, WU Yi, HU Changhao, et al. Technology of fire flooding process control:application to fire flooding in a deep and thick heavy oil reservoir in China[R]. SPE 191897, 2018.
[14]	高飞. 深层厚层块状稠油油藏直平组合火驱技术研究[J]. 特种油气藏, 2013, 20(3):93-96.
	GAO Fei. Study on fire flood with combination of vertical and horizontal wells for deep massive heavy oil reservoirs[J]. Special Oil and Gas Reservoirs,, 2013, 20(3):93-96.
[15]	梁金中, 关文龙, 蒋有伟, 等. 水平井火驱辅助重力泄油燃烧前缘展布与调控[J]. 石油勘探与开发, 2012, 39(6):720-727.
	LIANG Jinzhong, GUAN Wenlong, JIANG Youwei, et al. Propagation and control of fire front in the combustion assisted gravity drainage process using horizontal wells[J]. Petroleum Exploration and Development, 2012, 39(6):720-727.
[16]	GUAN Wenlong, WU Shuhong. Physical simulation of in-situ combustion of sensitive heavy oil reservoir[R]. SPE 110374, 2017.
[17]	叶华兴. 高3618块莲花油层精细油藏描述[D]. 黑龙江大庆:东北石油大学, 2015.
	YE Huaxing. Fine reservoir description research of High 3618 block Lianhua reservoir[D]. Daqing,Heilongjiang:Northeast Petroleum University, 2015.
[18]	张方礼, 刘其成, 赵庆辉, 等. 火烧油层燃烧反应数学模型研究[J]. 特种油气藏, 2012, 19(5):55-59.
	ZHANG Fangli, LIU Qicheng, ZHAO Qinghui, et al. Study on mathematical models of the reaction of in-situ combustion[J]. Special Oil and Gas Reservoirs, 2012, 19(5):55-59.
[19]	席长丰, 赵芳, 关文龙, 等. 稠油油藏火驱燃烧关键参数的计算及应用:以克拉玛依油田H1井区为例[J]. 新疆石油地质, 2020, 41(5):571-574.
	XI Changfeng, ZHAO Fang, GUAN Wenlong, et al. Calculation and application of key combustion parameters for developing heavy oil reservoirs:a case study of wellblock H1 in Karamay oilfield[J]. Xinjiang Petroleum Geology, 2020, 41(5):571-574.
[20]	赵仁保, 高珊珊, 杨凤祥, 等. 稠油火烧过程中的活化能测定方法[J]. 石油学报, 2013, 34(6):1 125-1 130.
	ZHAO Renbao, GAO Shanshan, YANG Fengxiang, et al. Determination method of activation energy during heavy-oil combustion[J]. Acta Petrolei Sinica, 2013, 34(6):1 125-1 130.
[21]	赵睿智, 陈明贵, 高飞, 等. 厚层稠油油藏直平组合火驱优化[J]. 断块油气田, 2020, 27(2):233-237.
	ZHAO Ruizhi, CHEN Minggui, GAO Fei, et al. In-situ combustion optimization of vertical and horizontal wells combination for heavy oil reservoirs with thick layer[J]. Fault-Block Oil & Gas Field, 2020, 27(2):233-237.
[22]	彭小强, 韩晓强, 杨洋, 等. 水平井火驱辅助重力泄油燃烧状态及燃烧前缘预测[J]. 新疆石油地质, 2020, 41(2):199-203.
	PENG Xiaoqiang, HAN Xiaoqiang, YANG Yang, et al. Combustionstate and burning front prediction during combustion assisted gravity drainage process in horizonal wells[J]. Xinjiang Petroleum Geology, 2020, 41(2):199-203.
[23]	赵辉, 李阳, 高达, 等. 基于系统分析方法的油藏井间动态连通性研究[J]. 石油学报, 2010, 31(4):633-636.
	ZHAO Hui, LI Yang, GAO Da, et al. Research on reservoir interwell dynamic connectivity using systematic analysis method[J]. Acta Petrolei Sinica, 2010, 31(4):633-636.
[24]	董文明. 边底水稠油油藏火驱开发技术[J]. 大庆石油地质与开发, 2016, 35(6):123-127.
	DONG Wenming. Fire-flood producing technique for the edge-bottom-water heavy oil reservoirs[J]. Petroleum Geology and Oilfield Development in Daqing, 2016, 35(6):123-127.
[25]	高成国, 木合塔尔, 展宏洋, 等. 克拉玛依油田红浅区火驱燃烧前缘的确定[J]. 新疆石油地质, 2020, 41(2):188-192.
	GAO Chengguo, Muhetaer, ZHAN Hongyang, et al. Monitoring and description methods of fire flooding combustion front in Hongqian area,Karamay oilfield[J]. Xinjiang Petroleum Geology, 2020, 41(2):188-192.
