稠油火驱实验原油色谱指纹特征对比

doi:10.7657/XJPG20210512

摘要/Abstract

摘要：

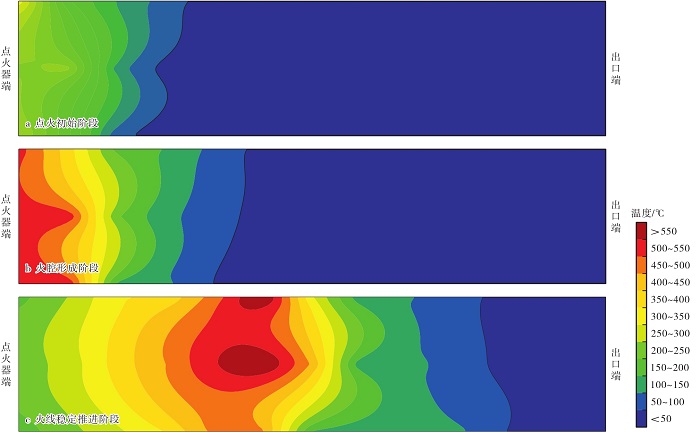

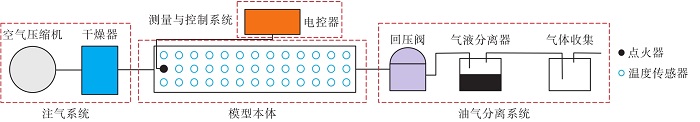

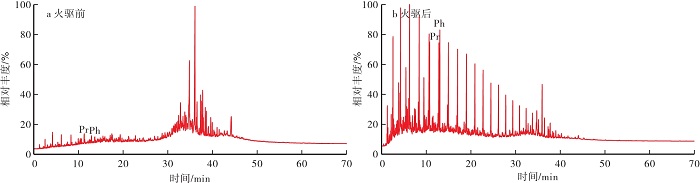

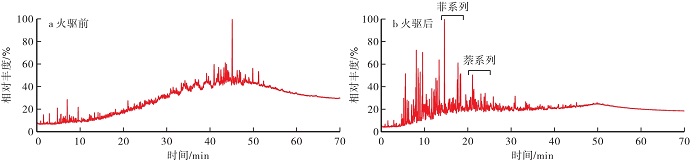

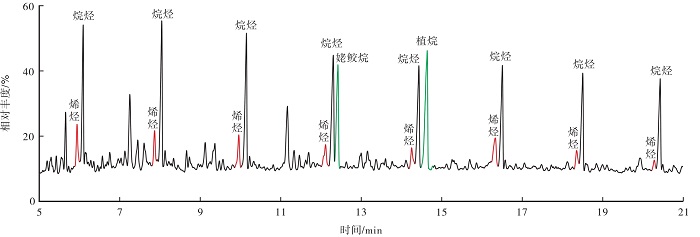

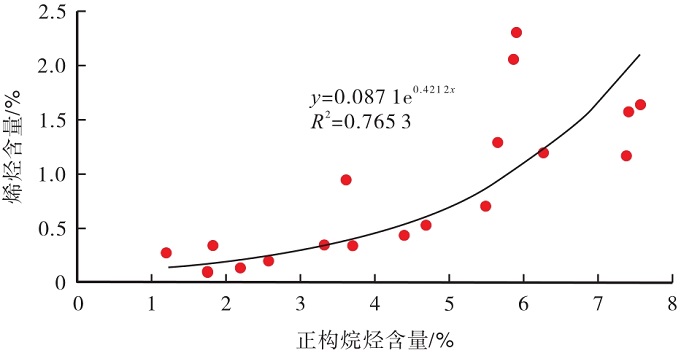

稠油火驱开发能否实现高温氧化将会直接影响开发效果,火驱燃烧状态的判识已成为火驱开发的技术难点之一。为攻克这一难题,采用天然岩心开展火驱实验,利用气相色谱技术对采集的原油开展饱和烃、烯烃和芳香烃指纹特征对比分析。实验结果表明：受高温氧化作用影响,火驱后稠油中的饱和烃含量明显上升,色谱指纹图呈前峰单峰型分布,正构烷烃含量增加、轻重比（∑nC_21-/∑nC₂₂₊）变大、无奇偶优势;裂解生成的烯烃在色谱指纹图中表现为同碳数烯烃与正构烷烃含量比值始终小于1,并且随着碳数的增加该比值降低;芳香烃色谱指纹图呈前峰型分布,萘系列化合物中甲基萘含量明显低于萘,更容易在裂解生成的萘系列化合物的α位发生加甲基反应,菲系列化合物与萘系列化合物特征相似。气相色谱技术可以有效指示稠油火驱前后的微观变化特征,为火驱燃烧状态的判识奠定基础。

关键词: 稠油油藏, 火驱开发, 燃烧状态, 高温氧化作用, 色谱指纹特征, 饱和烃, 烯烃, 芳香烃

Abstract:

In fire flooding development of heavy oil, oxidation at high temperature directly affects the evaluation on the development efficiency, and how to identify the combustion state is a technical difficulty. Physical simulation experiments on fire flooding were performed on natural cores, and fingerprint characteristics of saturated hydrocarbon, olefin and aromatic hydrocarbon in heavy oil were analyzed through gas chromatography. The results show that after fire flooding, influenced by oxidation at high temperature, (1) the content of saturated hydrocarbon in the heavy oil increases significantly, the chromatographic fingerprint is a pre-peak unimodal type, both the content of N-alkane and light-heavy ratio (∑nC_21-/∑nC₂₂₊) increase, and no odd-even predominance appears; (2) on the chromatographic fingerprint, the olefins generated from cracking shows that the ratio of olefins to N-alkanes with the same carbon numbers is always less than 1, and the ratio decreases with the increase of the carbon number; (3) the chromatographic fingerprint of aromatic hydrocarbon is a pre-peak type, the content of methylnaphthalene is significantly lower than that of naphthalene in the naphthalenes, so it is easier to have methylation at the α place of the cracked naphthalenes, and the characteristics of the phenanthrenes are similar to those of the naphthalenes. Chromatographic fingerprint can effectively indicate microscopic changes of the heavy oil before and after fire flooding, which lays a foundation for identifying the combustion state of fire flooding.

Key words: heavy oil reservoir, fire flooding, combustion state, oxidation at high temperature, chromatographic fingerprint characteristic, saturated hydrocarbon, olefin, aromatic hydrocarbon

中图分类号:

TE345

闫红星. 稠油火驱实验原油色谱指纹特征对比[J]. 新疆石油地质, 2021, 42(5): 592-597.

YAN Hongxing. Comparison of Chromatographic Fingerprint Characteristics of Heavy Oil Based on Fire Flooding Experiments[J]. Xinjiang Petroleum Geology, 2021, 42(5): 592-597.
