鄂尔多斯盆地大牛地气田马五5亚段储集层特征及成因

doi:10.7657/XJPG20230403

摘要/Abstract

摘要：

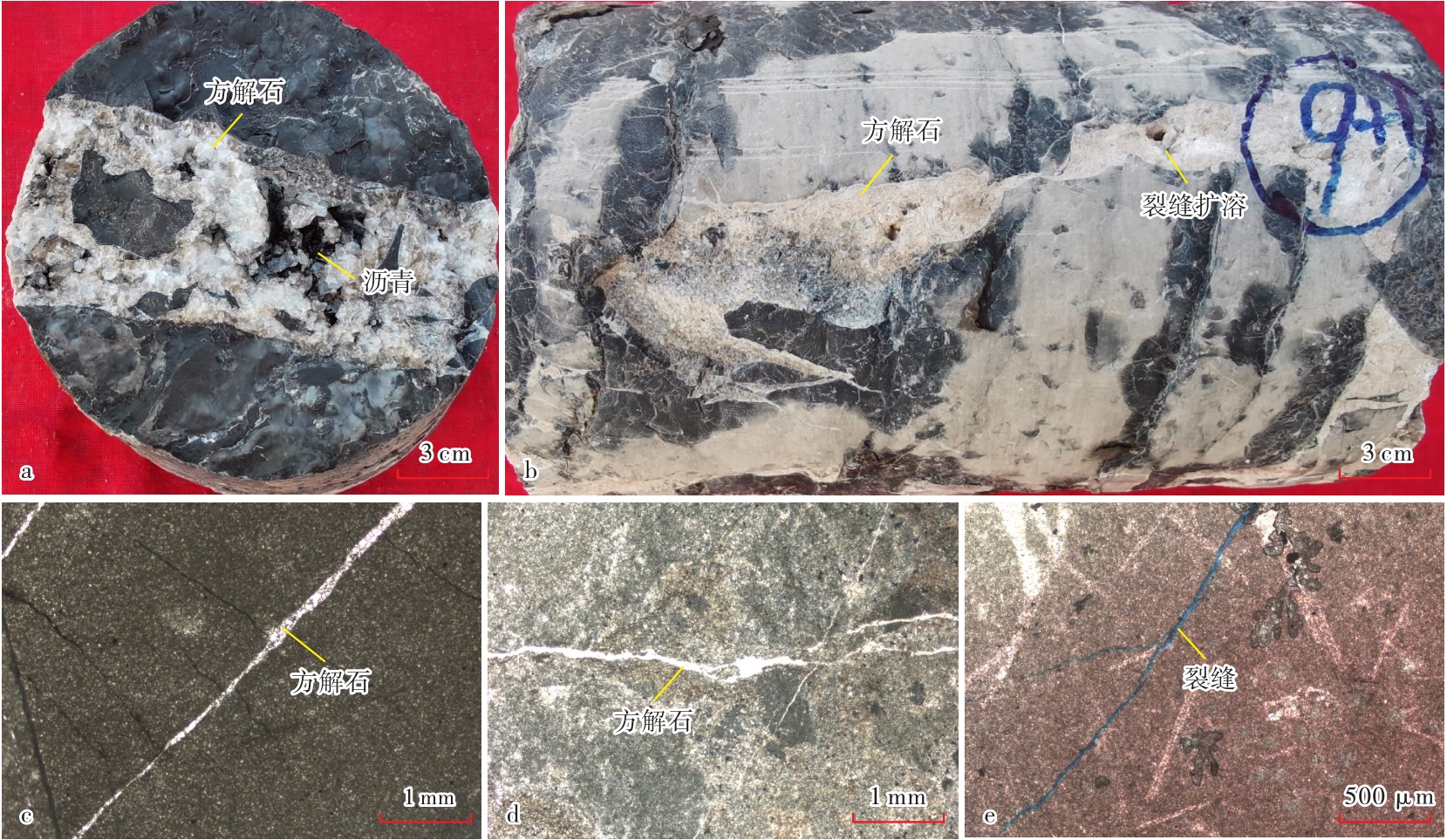

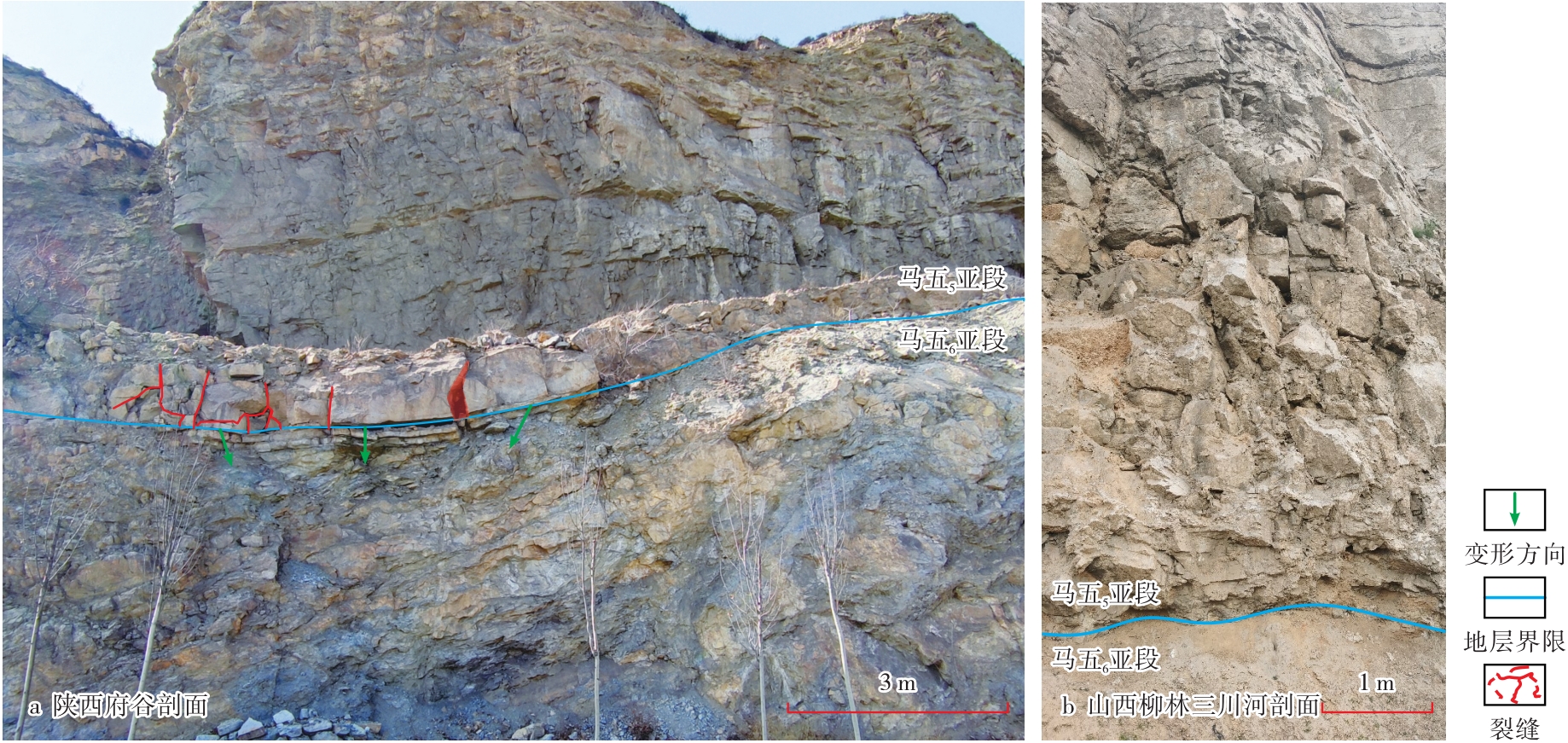

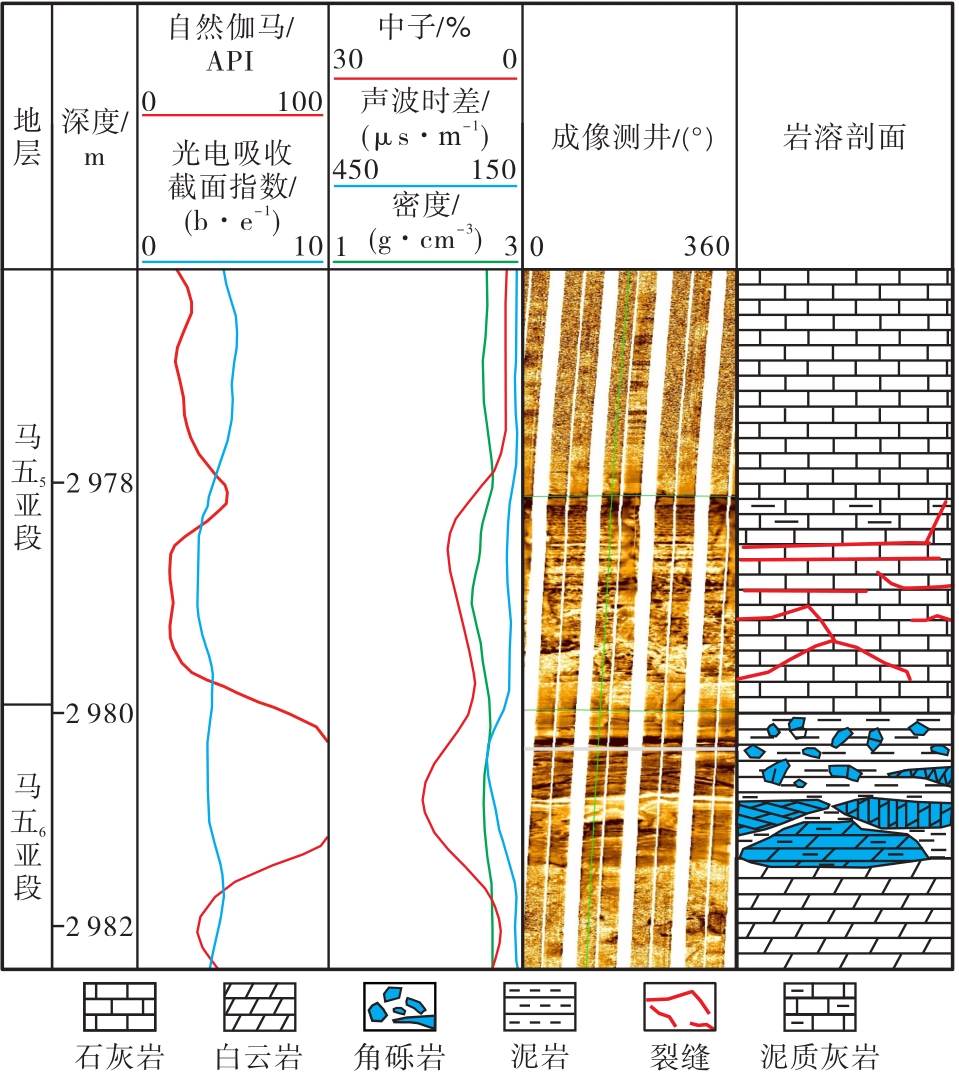

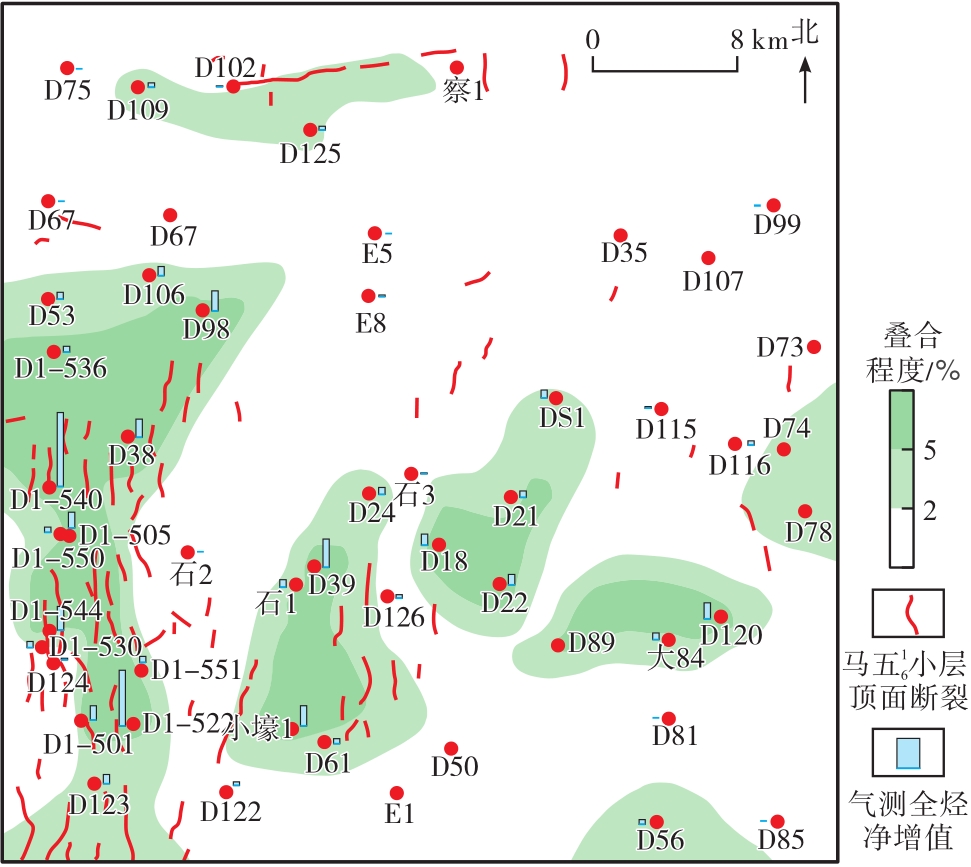

鄂尔多斯盆地马家沟组风化壳之下发育一套孔洞型岩溶储集层，是古生界特大型气田的主力储集层，其中，马五₅亚段底部见一套裂缝发育的喀斯特扰动相储集层，分布稳定且普遍含气，成因尚不清楚，制约了油气勘探与开发。通过对野外露头和岩心等资料的分析，剖析了该亚段储集层的成因。马五₅亚段发育扰动相，发育大量裂缝，野外露头特征明显，成像测井上显示线—斑状模式，裂缝大多被2期方解石充填;扰动相发育在马五₅亚段底部，分布于研究区中西部断裂发育区，气测异常明显，勘探前景良好;$马五^{1}_{6}$小层断裂发育，促进了侧向淡水的强烈岩溶作用，形成可容纳空间，上覆地层压力使马五₅亚段底部脆性石灰岩形成扰动相储集层。

关键词: 鄂尔多斯盆地, 大牛地气田, 马家沟组, 马五段, 喀斯特, 扰动相, 储集层

Abstract:

A set of vug-type karst reservoirs is developed below the weathering crust of the Majiagou formation in the Daniudi gas field of Ordos basin, which are the main reservoirs of the Paleozoic super-large gas fields. The disturbed-facies karst reservoirs with fractures are found stably at the bottom of the fifth submember of the fifth member of Majiagou formation (M5₅) and contain gas universally. The genesis of these reservoirs remains unknown, leading to difficulties in oil and gas exploration and development. Based on the analysis on field outcrop and core data, the genesis of the M5₅ reservoirs was analyzed. Disturbed facies and well-developed fractures are clearly observed from the outcrops, and show a line-porphyritic pattern on the image logging. Most of the fractures are filled by calcite of two periods. The disturbed facies found at the bottom of M5₅ are mainly distributed in the fault zones of the central and western parts of the study area, with obvious gas logging anomalies and good exploration prospects. Abundant fractures in $\text{M5}^{1}_{6}$ promote the strong karstification of fresh water laterally, forming accommodation spaces. The overburden pressure makes the brittle limestone at the bottom of M5₅ evolve to disturbed reservoir.

Key words: Ordos basin, Daniudi gas field, Majiagou formation, M5 member, karst, disturbed facies, reservoir

中图分类号:

TE122.21

高景云, 丁晓琪, 祁壮壮, 田胤瑜. 鄂尔多斯盆地大牛地气田马五₅亚段储集层特征及成因[J]. 新疆石油地质, 2023, 44(4): 404-410.

GAO Jingyun, DING Xiaoqi, QI Zhuangzhuang, TIAN Yinyu. Characteristics and Genesis of M5₅ Reservoirs in Daniudi Gas Field, Ordos Basin[J]. Xinjiang Petroleum Geology, 2023, 44(4): 404-410.

图/表 10

图 1

图 2

图 3

图 4

表1

图 5

图 6

表2

图 7

图 8

参考文献 26

[1]	杨俊杰. 陕甘宁盆地下古生界天然气的发现[J]. 天然气工业, 1991, 11(2):1-6.
	YANG Junjie. Discovery of natural gas in Lower Paleozoic in Shanganning basin[J]. Natural Gas Industry, 1991, 11(2):1-6.
[2]	付玲, 李建忠, 徐旺林, 等. 鄂尔多斯盆地中东部奥陶系盐下深层储层特征及主控因素[J]. 天然气地球科学, 2020, 31(11):1 548-1 561.
	FU Ling, LI Jianzhong, XU Wanglin, et al. Characteristics and main controlling factors of Ordovician deep subsalt reservoir in central and eastern Ordos basin[J]. Natural Gas Geoscience, 2020, 31(11):1 548-1 561.
[3]	雷涛, 邓虎成, 吴冬, 等. 鄂尔多斯盆地大牛地气田奥陶系马家沟组中下组合沉积模式[J]. 古地理学报, 2020, 22(3):523-538.
	LEI Tao, DENG Hucheng, WU Dong, et al. Depositional model of the Lower-Middle Ordovician Majiagou formation in Daniudi gas field,Ordos basin[J]. Journal of Palaeogeography, 2020, 22(3):523-538.
[4]	苏中堂, 佘伟, 罗静兰, 等. 鄂尔多斯盆地奥陶系马五₅亚段沉积微相与古地理演化[J]. 沉积学报, 2021, 39(6):1 344-1 356.
	SU Zhongtang, SHE Wei, LUO Jinglan, et al. Microfacies and paleogeographic evolution of Ma5₅ member in the Ordovician,Ordos basin[J]. Acta Sedimentologica Sinica, 2021, 39(6):1 344-1 356.
[5]	胡鑫, 丁晓琪, 梁昌健, 等. 鄂尔多斯盆地富县地区马五段喀斯特储层发育规律[J]. 天然气地球科学, 2018, 29(12):1 748-1 756.
	HU Xin, DING Xiaoqi, LIANG Changjian, et al. Development patterns of karst reservoir of Ma 5 member in Fuxian area,Ordos basin[J]. Natural Gas Geoscience, 2018, 29(12):1 748-1 756.
[6]	闫伟, 金振奎, 韩春元, 等. 冀中坳陷奥陶系多期岩溶发育特征[J]. 沉积学报, 2019, 37(5):981-991.
	YAN Wei, JIN Zhenkui, HAN Chunyuan, et al. Multi-phase karst development characteristics in the Ordovician of the Jizhong depression[J]. Acta Sedimentologica Sinica, 2019, 37(5):981-991.
[7]	张军涛, 金晓辉, 谷宁, 等. 鄂尔多斯盆地北部地区马家沟组岩溶储层的差异性和发育模式[J]. 石油与天然气地质, 2021, 42(5):1 159-1 168.
	ZHANG Juntao, JIN Xiaohui, GU Ning, et al. Differences and development patterns of karst reservoirs in Majiagou formation,northern Ordos basin[J]. Oil & Gas Geology, 2021, 42(5):1 159-1 168.
[8]	宁超众, 胡素云, 李勇, 等. 深层与露头碳酸盐岩岩溶洞穴对比及类比:以塔里木盆地哈拉哈塘油田奥陶系良里塔格组古岩溶洞穴与美国德克萨斯州Longhorn近现代岩溶洞穴为例[J]. 天然气地球科学, 2020, 31(12):1 700-1 716.
	NING Chaozhong, HU Suyun, LI Yong, et al. Comparison and analog of the deep-buried and outcrop carbonate karst cave systems:Case study of the Lianglitage formation karst cave system,Halahatang oilfield,Tarim basin,China and the Longhorn modern karst cave system,Texas,USA[J]. Natural Gas Geoscience, 2020, 31(12):1 700-1 716.
[9]	LOUCKS R G, MESCHER P K, MCMECHAN G A. Three-dimensional architecture of a coalesced,collapsed-paleocave system in the Lower Ordovician Ellenburger group,central Texas[J]. AAPG Bulletin, 2004, 5(88):545-564.
[10]	袁志祥. 鄂尔多斯盆地塔巴庙地区奥陶系风化壳岩溶相特征[J]. 成都理工学院学报, 2002, 29(3):279-284.
	YUAN Zhixiang. Characters of karst facies of the Ordovician weathered crust of Tabamiao area in Ordos basin[J]. Journal of Chengdu University of Technology, 2002, 29(3):279-284.
[11]	ZHANG Yongmei, ZHANG Shaonan, HUANG Baiwen, et al. Fluid inclusion,isotopic,and elemental geochemistry studies of cave-filling calcite in the Lower-Middle Ordovician Yingshan formation of Tahe oilfield,NW China:Implication for karstification in nonexposed limestone[J]. Frontiers in Earth Science, 2002, 10:1-18.
[12]	何云, 雷涛, 胥旺, 等. 大牛地气田马家沟组中下组合多成因岩溶发育机制[J]. 石油地质与工程, 2022, 36(4):26-33.
	HE Yun, LEI Tao, XV Wang, et al. Development mechanism of multi-genesis karst in Middle-Lower Majiagou formation of Daniudi gas field[J]. Petroleum Geology and Engineering, 2022, 36(4):26-33.
[13]	贾会冲, 丁晓琪. 鄂尔多斯盆地大牛地气田马五1+2段白云岩喀斯特储层特征[J]. 成都理工大学学报(自然科学版), 2016, 43(4):415-422.
	JIA Huichong, DING Xiaoqi. Characteristics of dolomite karst reservoirs in the M 5₍₁₊₂₎ member of Majiagou formation,Daniudi gas field,Ordos basin,China[J]. Journal of Chengdu University of Technology(Science & Technology Edition), 2016, 43(4):415-422.
[14]	吴永峰. 大牛地气田下古奥陶系马五段岩溶作用对储层的影响[J]. 内蒙古石油化工, 2020, 46(7):110-112.
	WU Yongfeng. Effects of karstification on the reservoirs in the fifth section of the Ma5 formation of the Paleoordovician in Daniudi gas field[J]. Inner Mongolia Petrochemical Industry, 2020, 46(7):110-112.
[15]	丁晓琪, 张哨楠, 潘怀孝, 等. 鄂尔多斯盆地大牛地气田奥陶系“垮塌”型岩溶储层发育规律[J]. 石油与天然气地质, 2016, 37(2):210-217.
	DING Xiaoqi, ZHANG Shaonan, PAN Huaixiao, et al. Development patterns of collapse-type karst reservoirs in the Ordovician of Daniudi gas field,Ordos basin[J]. Oil & Gas Geology, 2016, 37(2):210-217.
[16]	祁壮壮, 丁晓琪, 刘鑫, 等. 鄂尔多斯盆地大牛地气田马五6喀斯特储层分布规律[J]. 东北石油大学学报, 2021, 45(2):32-40.
	QI Zhuangzhuang, DING Xiaoqi, LIU Xin, et al. Distribution of M5₆ karst reservoir in Daniudi gas field,Ordos basin[J]. Journal of Northeast Petroleum University, 2021, 45(2):32-40.
[17]	丁晓琪, 刘鑫, 祁壮壮, 等. 碳酸盐岩孔洞型储层分层次储集空间表征:以鄂尔多斯盆地大牛地中奥陶统马家沟组马五₇为例[J]. 石油实验地质, 2021, 43(4):689-696.
	DING Xiaoqi, LIU Xin, QI Zhuangzhuang, et al. Reservoir space characterization of vuggy carbonate reservoirs with multiple scales:A case study of $\text{Ma}^{7}_{5}$ interval,Middle Ordovician Majiagou formation,Daniudi area,Ordos basin[J]. Petroleum Geology & Experiment, 2021, 43(4):689-696.
[18]	刘沁园, 唐军, 申威, 等. 塔里木盆地缝洞型白云岩储层测井细分方法与应用[J]. 中国石油勘探, 2021, 26(5):132-139.
	LIU Qinyuan, TANG Jun, SHEN Wei, et al. Petrophysical classifi cation method and application of fracture-vuggy type dolomite reservoir in Tarim basin[J]. China Petroleum Exploration, 2021, 26(5):132-139.
[19]	GUO Yanru, FU Jinhua, WEI Xinshan, et al. Natural gas accumulation and models in Ordovician carbonates,Ordos basin,NW China[J]. Petroleum Exploration and Development, 2014, 41(4):437-448. doi: 10.1016/S1876-3804(14)60050-1
[20]	吴小力, 徐旺林, 李荣西, 等. 鄂尔多斯盆地中东部奥陶系马家沟组硫化氢成因:来自流体包裹体的证据[J]. 石油学报, 2022, 43(2):250-261. doi: 10.7623/syxb202202007
	WU Xiaoli, XU Wanglin, LI Rongxi, et al. Genesis of hydrogen sulfide in Ordovician Majiagou formation,mid-eastern Ordos basin:Evidence from fluid inclusions[J]. Acta Petrolei Sinica, 2022, 43(2):250-261. doi: 10.7623/syxb202202007
[21]	刘晶晶, 毛毳, 魏荷花, 等. 塔河油田奥陶系缝洞充填序列及其测井响应[J]. 新疆石油地质, 2021, 42(1):46-52.
	LIU Jingjing, MAO Cui, WEI Hehua, et al. Ordovician fracture-cavity filling sequence and its logging responses in Tahe oilfield[J]. Xinjiang Petroleum Geology, 2021, 42(1):46-52.
[22]	陈修平, 沈新普, 刘景涛, 等. 顺北油田碳酸盐岩地层天然裂缝分布及其造山运动力学特征[J]. 新疆石油地质, 2021, 42(5):515-520.
	CHEN Xiuping, SHEN Xinpu, LIU Jingtao, et al. Distribution of natural fractures and mechanical characteristics of orogenic movement in carbonate formations in Shunbei oilfield[J]. Xinjiang Petroleum Geology, 2021, 42(5):515-520.
[23]	冯增昭, 鲍志东, 康祺发, 等. 鄂尔多斯奥陶纪古构造[J]. 古地理学报, 1999, 1(3):83-94.
	FENG Zengzhao, BAO Zhidong, KANG Qifa, et al. Ordovician paleostructure in Ordos[J]. Journal of Palaeogeography(Chinese Edition), 1999, 1(3):83-94.
[24]	李英菊. 塔河油田奥陶系古岩溶洞穴充填特征及其油气响应[D]. 湖北荆州: 长江大学, 2020.
	LI Yingju. The fillings and hydrocarbon of Ordovician paleo-caves in Tahe oilfield[D]. Jingzhou,Hubei: Yangtze University, 2020.
[25]	张春林. 鄂尔多斯盆地西部奥陶系古岩溶储层形成机理及勘探目标评价[D]. 北京: 中国地质大学(北京), 2013.
	ZHANG Chunlin. Formation mechanics and exploration targets evaluation of Ordovician paleokarst reservoir in western Ordos basin[D]. Beijing: China University of Geosciences(Beijing). 2013.
[26]	张道锋, 刘新社, 高星, 等. 鄂尔多斯盆地西部奥陶系海相碳酸盐岩地质特征与成藏模式研究[J]. 天然气地球科学, 2016, 27(1):92-101.
	ZHANG Daofeng, LIU Xinshe, GAO Xing, et al. Geological characteristics and accumulation model of Ordovician marine carbonate in western Ordos basin[J]. Natural Gas Geoscience, 2016, 27(1):92-101.
