基于动态渗流阻力的注水调整方法

doi:10.7657/XJPG20230407

摘要/Abstract

摘要：

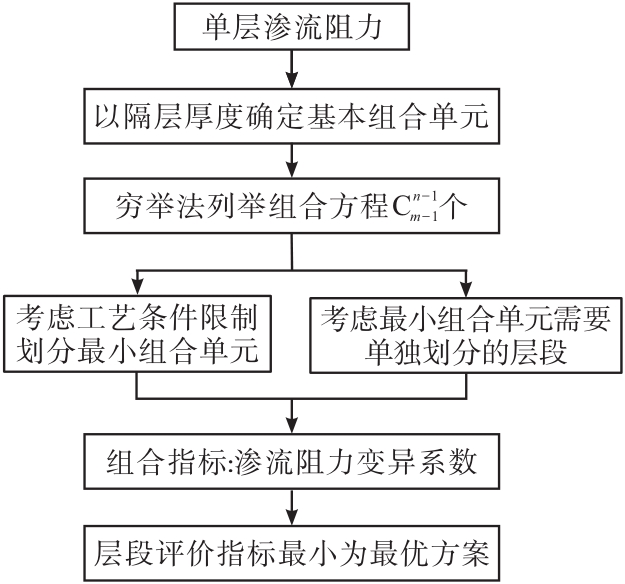

特高含水后期储集层油水两相渗流能力差异大，储集层动态非均质性强，以渗透率等静态参数作为主要指标的注水井层段细分方法和以经验分析为主的层段配水方法，难以满足多层砂岩油藏精准开发的需求。通过理论分析、物理模拟及数值模拟，深化了对特高含水后期油田渗流特征认识，构建油藏小层渗流阻力计算模型，以单井渗流阻力变异系数最小为目标，建立近阻注水井层段优化组合方法;构建层段剩余储量系数、合理注采比系数、相对注水效率系数及含水率上升速度系数，形成特高含水后期层段注水定量调整方法，解决了多井、多层、复杂注采关系条件下定量注水的难题。在典型区块应用，试验237井次，初期含水率下降0.14%，增油控水效果较好。

关键词: 特高含水后期, 非均质性, 渗流阻力, 层段优化, 注水效率, 水量调整, 剩余储量

Abstract:

For the reservoirs in late development stage with ultra-high water cut, which exhibit significant difference in the oil-water two-phase flow capacity and strong dynamic reservoir heterogeneity, the injector interval subdivision method based on static parameters such as permeability and the interval water allocation method using empirical analysis are insufficient to meet the requirements of precise development of multi-layered sandstone reservoirs. Through theoretical analysis, physical simulation, and numerical modeling, the flow behaviors in the oilfields in late development stage with ultra-high water cut were further understood. A flow resistance calculation model for reservoir layers was developed, and aiming at minimizing the variation coefficient of flow resistance in single wells, a method for water injection interval optimization based on flow resistance was established. Additionally, by constructing coefficients of remaining reserves, reasonable injection-production ratio, relative water injection efficiency, and water cut rising rate for intervals, a quantitative adjustment method for water injection in the intervals with ultra-high water cut was developed. This method allows for quantitative water injection under conditions involving multiple wells, multiple layers, and complex injection-production relationships. The method was tested 237 times in wells of a typical block, with a decrease in initial water cut by 0.14%, demonstrating a satisfactory performance in both water control and oil increasement.

Key words: late development stage with ultra-high water cut, heterogeneity, flow resistance, interval optimization, water injection efficiency, water volume adjustment, remaining reserves

中图分类号:

TE341

单高军, 王承祥, 王治国, 姜雪岩, 郭军辉. 基于动态渗流阻力的注水调整方法[J]. 新疆石油地质, 2023, 44(4): 435-441.

SHAN Gaojun, WANG Chengxiang, WANG Zhiguo, JIANG Xueyan, GUO Junhui. Water Injection Adjustment Methods Based on Dynamic Flow Resistance[J]. Xinjiang Petroleum Geology, 2023, 44(4): 435-441.

图/表 8

图1

图2

图3

图4

图5

图6

表1

图7

参考文献 21

[1]	张玉荣, 闫建文, 杨海英, 等. 国内分层注水技术新进展与发展趋势[J]. 石油钻采工艺, 2011, 33(2):102-107.
	ZHANG Yurong, YAN Jianwen, YANG Haiying, et al. Technologies of separated layer water flooding:An overview[J]. Oil Drilling & Production Technology, 2011, 33 (2):102-107.
[2]	谢晓庆, 姜汉桥, 刘同敬, 等. 非均质油藏分层配水理论[J]. 大庆石油地质与开发, 2008, 27(6):83-86.
	XIE Xiaoqing, JIANG Hanqiao, LIU Tongjing, et al. Theoretical studies of separated layer water allocation in a heterogeneous oil reservoir[J]. Petroleum Geology & Oilfield Development in Daqing, 2008, 27 (6):83-86.
[3]	霍爱民. 油藏动态分析与分层注水技术在利8区块的综合应用研究[J]. 长江大学学报(自然科学版), 2015, 12(14):71-73.
	HUO Aimin. Integrated application of reservoir performance analysis and layered water injection technology in Block Li 8[J]. Journal of Yangtze University(Natural Science Edition), 2015, 12 (14):71-73.
[4]	王治国. 特高含水期油田注水层段划分新方法[J]. 长江大学学报(自然科学版), 2019, 16(10):46-51.
	WANG Zhiguo. A new method for dividing water injection strata at ultra-high water-cut stage of oilfield[J]. Journal of Yangtze University(Natural Science Edition), 2019, 16 (10):46-51.
[5]	赖书敏. 特高含水后期油藏细分注水界限研究:以胜利油田整装油藏为例[J]. 岩性油气藏, 2018, 30(5):124-130.
	LAI Shumin. Technology policy limitation of subdivision water injection in ultra-high water cut stage:A case from Shengli uncompartmentalized reservoirs[J]. Lithologic Reservoirs, 2018, 30(5):124-130.
[6]	贾晓飞, 马奎前, 李云鹏, 等. 基于剩余油分布的分层注水井各层配注量确定方法[J]. 石油钻探技术, 2012, 40(5):72-76.
	JIA Xiaofei, MA Kuiqian, LI Yunpeng, et al. Injection allocation determination method for separate injection well based on remaining oil distribution[J]. Petroleum Drilling Techniques, 2012, 40(5):72-76.
[7]	单五一, 宋考平, 耿文爽, 等. 利用范函数法确定水驱合理注水量[J]. 数学的实践与认识, 2013, 43(13):122-129.
	SHAN Wuyi, SONG Kaoping, GENG Wenshuang, et al. Use of ϕ function to determine water injection rate[J]. Mathematics in Practice and Theory, 2013, 43 (13):122-129.
[8]	崔传智, 姜华, 段杰宏, 等. 基于层间均衡驱替的分层注水井层间合理配注方法[J]. 油气地质与采收率, 2012, 19(5):94-96.
	CUI Chuanzhi, JIANG Hua, DUAN Jiehong, et al. Reasonable injection rate allocation method of separate-layer water injection wells based on interlayer equilibrium displacement[J]. Petroleum Geology and Recovery Efficiency, 2012, 19 (5):94-96.
[9]	尹洪军, 张俊廷, 张欢欢, 等. 应用灰色关联分析方法确定分层注水量公式[J]. 数学的实践与认识, 2012, 42(13):94-99.
	YIN Hongjun, ZHANG Junting, ZHANG Huanhuan, et al. Appling grey correlation analysis method to determine the separated layer water injection[J]. Mathematics in Practice and Theory, 2012, 42(13):94-99.
[10]	尹晓波. 基于模糊综合评判法的注水调整优化研究[J]. 长江大学学报(自然科学版), 2013, 10(14):95-97.
	YIN Xiaobo. Research on optimization of water injection adjustment based on fuzzy comprehensive evaluation method[J]. Journal of Yangtze University(Natural Science Edition), 2013, 10(14):95-97.
[11]	杜庆龙. 长期注水开发砂岩油田储层渗透率变化规律及微观机理[J]. 石油学报, 2016, 37(9):1 159-1 164.
	DU Qinglong. Variation law and microscopic mechanism of permeability in sandstone reservoir during long-term water flooding development[J]. Acta Petrolei Sinica, 2016, 37(9):1 159-1 164.
[12]	黄斌, 许瑞, 傅程, 等. 注采井间优势通道的多层次模糊识别方法[J]. 岩性油气藏, 2018, 30(4):105-112.
	HUANG Bin, XU Rui, FU Cheng, et al. Multi-level fuzzy identification method for interwell thief zone[J]. Lithologic Reservoirs, 2018, 30 (4):105-112.
[13]	冯其红, 王波, 王相, 等. 高含水油藏细分注水层段组合优选方法研究[J]. 西南石油大学学报(自然科学版), 2016, 38(2):103-107. doi: 10.11885/j.issn.1674-5086.2013.12.17.04
	FENG Qihong, WANG Bo, WANG Xiang, et al. Study on layer combination optimization method of subdivision water injection in high water-cut reservoirs[J]. Journal of Southwest Petroleum University(Science & Technology Edition), 2016, 38(2):103-107.
[14]	王波. 高含水油田分层注水优化研究[D]. 山东青岛: 中国石油大学(华东), 2015.
	WANG Bo. Optimization of separate zone water injection in the high water-cut oilfield[D]. Qingdao,Shandong: China University of Petroleum(East China), 2015.
[15]	翟云芳. 渗流力学[M]. 北京: 石油工业出版社, 2016.
	ZHAI Yunfang. Seepage mechanics[M]. Beijing: Petroleum Industry Press, 2016.
[16]	姜汉桥. 油藏工程原理与方法[M]. 北京: 中国石油大学出版社, 2006.
	JIANG Hanqiao. Principles and methods of reservoir engineering[M]. Beijing: China University of Petroleum Press, 2006.
[17]	张建国, 杜殿发, 侯健, 等. 油气层渗流力学[M]. 北京: 中国石油大学出版社, 2010.
	ZHANG Jianguo, DU Dianfa, HOU Jian, et al. Seepage mechanics of oil and gas reservoirs[M]. Beijing: China University of Petroleum Press, 2010.
[18]	高文君, 殷瑞, 高能, 等. 新型分流量解析方程的建立与应用[J]. 新疆石油地质, 2021, 42(2):179-187.
	GAO Wenjun, YIN Rui, GAO Neng, et al. Establishment and application of a new analytical fractional flow equation[J]. Xinjiang Petroleum Geology, 2021, 42(2):179-187.
[19]	张利健, 田盼盼, 任宜伟, 等. 海上油田水驱开发注水压力优化[J]. 新疆石油地质, 2021, 42(1):63-67.
	ZHANG Lijian, TIAN Panpan, REN Yiwei, et al. Optimization of water injection pressure in developing offshore oil reservoirs[J]. Xinjiang Petroleum Geology, 2021, 42(1):63-67.
[20]	杜庆龙. 多层非均质砂岩油田小层动用状况快速定量评价方法[J]. 大庆石油地质与开发, 2016, 35(4):43-48.
	DU Qinglong. Quick-quantitative evaluating method of the sublayer developed conditions in the multilayered heterogeneous sandstone oilfield[J]. Petroleum Geology & Oilfield Development in Daqing, 2016, 35 (4):43-48.
[21]	朱丽红, 王海涛, 魏丽影, 等. 基于容量阻力模型的低效无效循环场定量识别[J]. 大庆石油地质与开发, 2019, 38(5):239-245.
	ZHU Lihong, WANG Haitao, WEI Liying, et al. Quantitative identification of the low and no-efficiency cycle fields based on CRM[J]. Petroleum Geology & Oilfield Development in Daqing, 2019, 38 (5):239-245.
